Charging using the 3115 CCA (KT-12596-04 Only)
The optional 3115 Communications/Charger Adapter (CCA) provides power from a wall-
mounted power supply for recharging the NiMH battery while the terminal is in use.
To charge the terminal using the 3115 CCA:
1. Plug the 10-pin RJ41 connector in the terminal base.
2. Plug the connector from the 15V power supply, P/N 59915-00-00 (US, 115V) or
60507-00-00 (International, 230V) in the CCA's power input jack.
3. Plug the power supply in a wall socket.

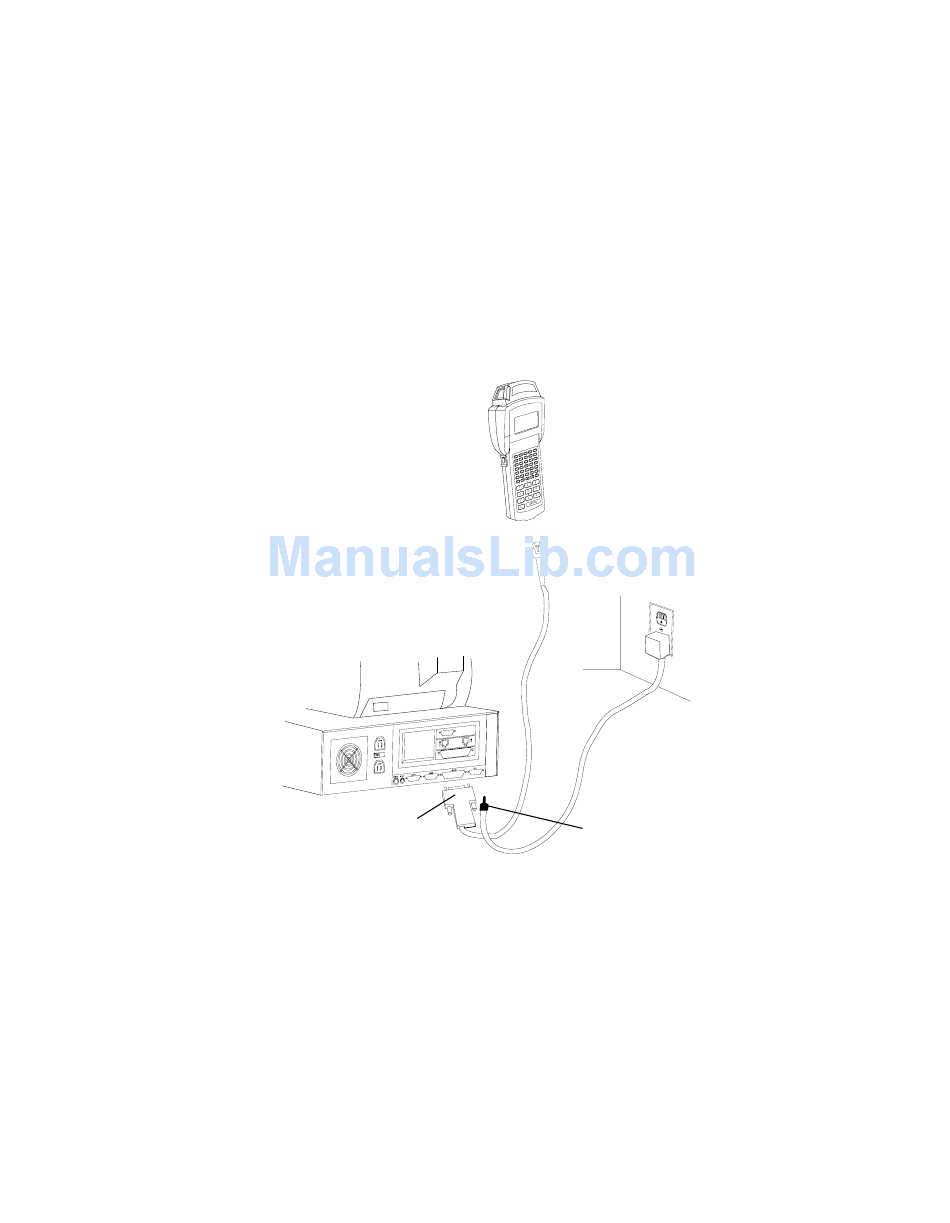

Figure 6-4. Connections for Charging with the 3115 CCA
Other Charging Options
Note that you can charge the KT-12596-04 battery pack using the Universal Four-Slot
Charger (3004-xxx) or the UBC 2000 Charger. Use the UBC 2000 Charger to charge the
KT-12596-04 battery pack.
3115 CCA
DB-25 Connector
Maintaining the PDT 3100
PDT 3100
RJ-41 Connector
Power Input Jack
6-9
