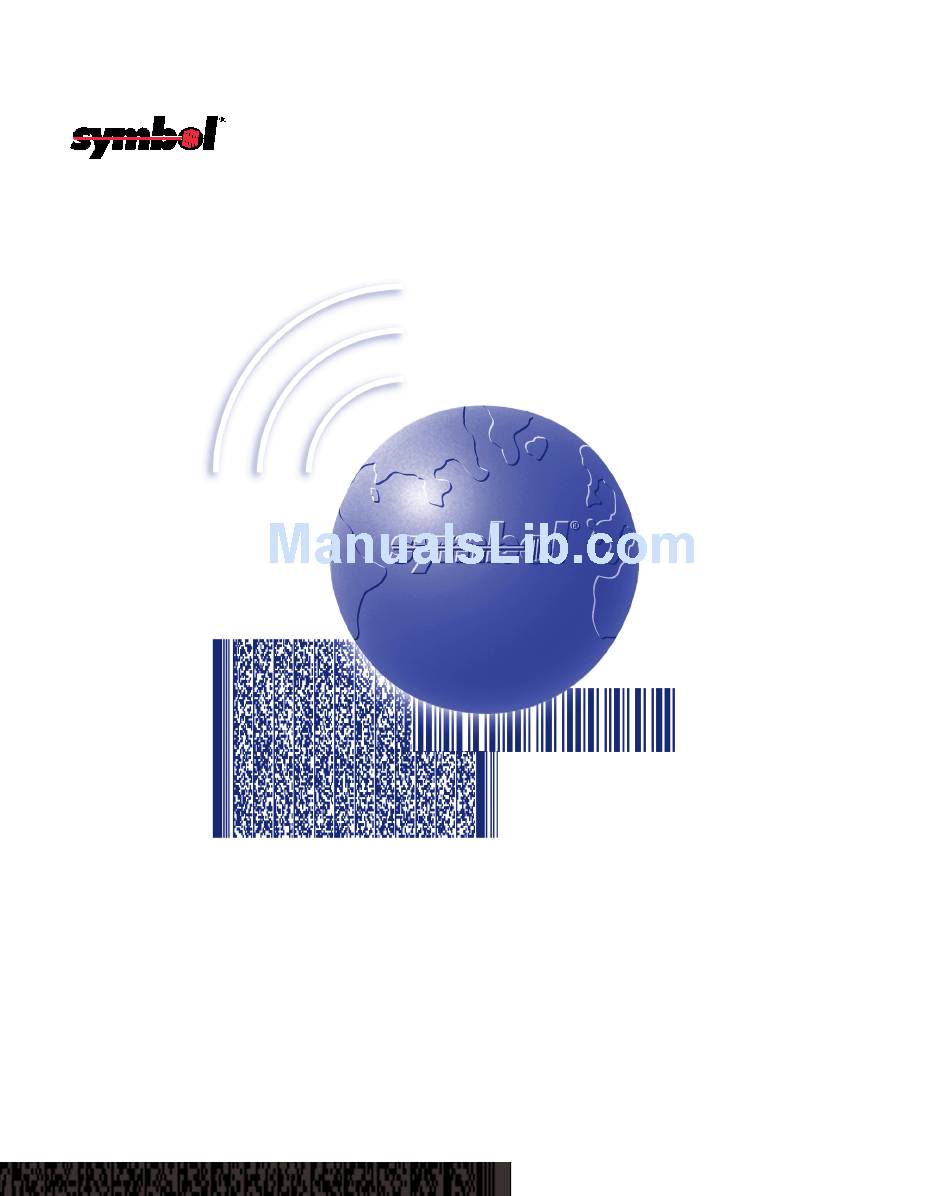

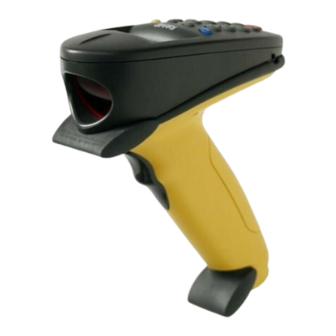

Page 1 P460/P360 Memory Scanners Product Reference Guide...
Page 3 P460/P360 Memory Scanners Product Reference Guide 70-37690-04 Revision A December 2003...
Page 4 The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Symbol grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program).
Page 5: Table Of Contents
Commonly Used P460/P360 Programming Bar Code........1-4...
Page 6 P460/P360 1D Scanner Decode Zone ........
Page 7 Contents Troubleshooting ............. . . 4-2 Optional Accessories .
Page 8 P460/P360 Memory Scanners Product Reference Guide UPC-E Preamble............. . 5-36 UPC-E1 Preamble.
Page 9 Symbol Code Identifier Characters ........
Page 10 P460/P360 Memory Scanners Product Reference Guide Index Feedback viii...
Page 11: About This Manual
About This Manual Introduction The P460/P360 Memory Scanners Product Reference Guide provides general instructions for setup, operation, troubleshooting, maintenance, and programming the Phaser Batch scanners. Chapter Descriptions • Chapter 1, The Phaser Series Scanner, describes the scanner and Quick Start Up Instructions.
Page 12: Notational Conventions
Call the Support Center from a phone near the scanning equipment so that the service person can try to talk you through your problem. If the equipment is found to be working properly and the problem is symbol readability, the Support Center will request samples of your bar codes for analysis at our plant.
Page 13: Symbol Support Center
About This Guide Note: Symbol Technologies is not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. If the original shipping container was not kept, contact Symbol to have another sent to you.
Page 14 P460/P360 Memory Scanners Product Reference Guide Finland/Suomi France Oy Symbol Technologies Symbol Technologies France Kaupintie 8 A 6 Centre d'Affaire d'Antony FIN-00440 Helsinki, Finland 3 Rue de la Renaissance 92184 Antony Cedex, France Tel: 9 5407 580 (Inside Finland) Tel: +358 9 5407 580 (Outside Finland)
Page 15 Tel: Switchboard: 08 445 29 00 (domestic) Tel: Call Center: +46 8 445 29 29 (international) Support E-Mail: Sweden.Support@se.symbol.com If you purchased your Symbol product from a Symbol Business Partner, contact that Business Partner for service. For the latest version of this guide go to:http://www.symbol.com/manuals. xiii...
Page 16 P460/P360 Memory Scanners Product Reference Guide...
Page 17: Chapter 1. The Phaser Series Scanner
The Phaser Series Scanner Introduction The P460/P360 Memory Scanners bring new flexibility and economy to data capture and data management in both retail and industrial operations. In addition to an integrated bar code scanner, the Phaser has an on-board keyboard and display. They can operate in both corded and battery-powered cordless modes.
Page 18: The Cradle
P460/P360 Memory Scanners Product Reference Guide The Cradle The PL 460 and PL 360 Cradles act as a: • stand • communication interface with the host • battery charger for the Phaser Batch Scanner. Note: The scanner battery can also be charged without a cradle by using an RS-232 cable and a power supply.
Page 19: Quick Startup Instructions
The Phaser Series Scanner Quick Startup Instructions Below is an index of Quick Startup Instructions to help get you up and going quickly. These instructions are also on the back cover of this guide for easy reference. The index is listed in a step by step order beginning with step 1, Setting up the System.
Page 20: Commonly Used P460/P360 Programming Bar Code
P460/P360 Memory Scanners Product Reference Guide Commonly Used P460/P360 Programming Bar Code Below are commonly used programming bar codes. You can cut this page out of the guide, or make a copy of the bar codes using a high quality copying machine.
Page 21: Chapter 2. Set Up
Remove the scanner from its packing and inspect it for damage. If the scanner was damaged in transit, call one of the telephone numbers listed in the section Symbol Support Center on page xi. KEEP THE PACKING. It is the approved shipping container and should...
Page 22: Cables
P460/P360 Memory Scanners Product Reference Guide Cables Connecting the Cable to the Scanner 1. Power down all devices that will be connected to the scanner. 2. Plug the modular connector on the cable into the receptacle in the bottom of the Phaser handle.
Page 23: Disconnecting Cables From The Scanner
Set Up 3. Turn the cable twist-lock 1/8 turn clockwise to seat it. locked position Figure 2-2. Locking the Cable to the Phaser 4. Gently pull the cable to make certain it is properly seated. Disconnecting Cables from the Scanner To disconnect the scanner cable: 1.
Page 24: Setting Up The Cradle
P460/P360 Memory Scanners Product Reference Guide Setting Up the Cradle On the bottom of the cradle are three ports. COM1 connects to the host computer, COM2 is used for daisy-chaining multiple base stations together, and the Power port supplies power to the cradle.
Page 25: Charging The Battery
Set Up Charging the Battery Before its first use, the scanner battery may need to be charged. It can be charged: • Using the cradle • Using a cable • Using the UBC 2000. Note: For a battery already in use, when the battery’s charge is almost depleted, the scanner emits 4 high tone beeps, when the trigger is pulled, indicating that it must be recharged.
Page 26: Charging Using A Cable
Charging Using the UBC 2000 The battery can be charged using the Universal Battery Charger UBC 2000. The UBC adapter for the P460/P360/P470/P370 scanner battery is required. Refer to the UBC 2000 guide for information on recharging the battery using the UBC 2000.
Page 27: Changing The Battery
Set Up Changing the Battery Once a battery is fully charged, it will generally last up to 12 hours without being returned to the cradle. By returning it to the cradle during the day, you extend this time. If a significant decrease in battery life is noticed and does not correspond to increased usage, consider replacing the battery.
Page 28: Inserting The Battery
P460/P360 Memory Scanners Product Reference Guide Inserting the Battery 1. Place the top portion of the battery (curved side up, contacts toward top) into the scanner and then slide it up the handle. 2. Replace the battery compartment cover. 3. Slide the release latch up to secure the cover in place.
Page 29: Using A Synapse Cable With The Cradle
Set Up Using A Synapse Cable with the cradle 1. Make sure all host devices are powered down. IMPORTANT Before power is provided to the cradle (step 6), the following steps must be completed. The Synapse cable must be connected to the cradle (step 2) AND the flying power lead plugged in (step 4).
Page 30: Using A Synapse Cable With The Scanner
P460/P360 Memory Scanners Product Reference Guide Using A Synapse Cable with the Scanner 1. Make sure all host devices are powered down. IMPORTANT Before power is provided to the scanner (step 6), the following steps must be completed. The Synapse cable must be connected to the scanner (step 2) AND the flying power lead plugged in (step 4).
Page 31: Wand Emulation, Ocia, Ocr, Keyboard Wedges
Set Up Wand Emulation, OCIA, OCR, Keyboard Wedges See the instructions packed with the appropriate Synapse cable. An adapter cable is required. See Figure 2-8 on page 2-9. 2-11...
Page 32 P460/P360 Memory Scanners Product Reference Guide 2-12...
Page 33: Chapter 3. Operation
When the unit is powered up, it displays the system start-up banner. Alternatively, the scanner can be reset manually by pressing the <FUNC> key, then the <*> key. When the scanner is powered up or reset, the system banner appears as follows: Symbol Technologies Phaser Memory Scnr...
Page 34: Initial Powerup
P460/P360 Memory Scanners Product Reference Guide Initial Powerup After a few seconds, the System Banner is replaced by the system initialization screen. Symbol Technologies Initializing... After initialization, the scanner enters either the Scan & Transmit mode, or the Batch/ Inventory mode, depending on whether a communications cable is present or not. The default communication protocols are: •...
Page 35: Numeric Data Entry
Operation Numeric Data Entry The default application also allows you to manually enter data if no bar code is present. By default, this feature is enabled. To disable alphanumeric data entry via the keypad, go to the symbologies tab inside 123Scan and remove the “X” from the check box next to “Keypad”.
Page 36: Eliminating Repetitive Scanning
P460/P360 Memory Scanners Product Reference Guide Eliminating Repetitive Scanning To eliminate repetitive scanning of identical items, you can enter a quantity prior to scanning a bar code. This quantity entry feature can also be used when manually entering bar code data.
Page 37: Reviewing And Deleting Stored Records
Operation Reviewing and Deleting Stored Records While running the Batch/Inventory application, you can review and delete stored data. Press the <FUNC> key, then the <2> key to enter this mode. The following screen appears: CODE: xxxx aaaa/bbbb Three fields are shown on this screen: xxxx = the data contained within the record (the first 25 characters) aaaa = the index number of the record being viewed bbbb = the total number of records stored in memory...
Page 38: Transmitting Batch/Stored Data To The Host
P460/P360 Memory Scanners Product Reference Guide Transmitting Batch/Stored Data to the Host When you are ready to transmit your stored (Batch) data to the host, press the <FUNC> key, then the <1> key. Then, place the scanner in the cradle or connect a communication cable.
Page 39: Scan And Transmit Application
Operation Optional - To establish which scanner the data originated from, and to prevent a buffer over-write, the scanner ID of daisy-chained scanners must be changed from the factory default of 001 to a unique number. For information on how to set the scanner ID/scanner address, see Scanner Address on page 5-98.
Page 40: System Menu
P460/P360 Memory Scanners Product Reference Guide System Menu The system menu allows the user to set up the operation of the scanner, such as loading a new application, erasing files, setting the scanner ID, etc. Enter System Menu by scanning the bar code below or by entering a keypad sequence.
Page 41: System Setup
Operation System Setup System Setup allows you to configure the scanner’s basic settings such as date and time. Option Description 0. Set Com Protocol Sets the communication protocol used by the default 0. Scan & Transmit applications. The options are MCL-Net or RS-232/Synapse. If RS-232/Synapse is selected, the scanner automatically -MCL NET identifies whether an RS-232 or Synapse interface is required.
Page 42 P460/P360 Memory Scanners Product Reference Guide Note: The scanner contains a backup power source to retain the time and date information for up to 24 hours after loss of battery power. If battery power is not restored within 24 hours, time and date information will be lost.
Page 43: App. Control
Operation App. Control App. Control allows you to control your application, specifically, load new system application files on your scanner, reset your default applications, etc. You can load a new application/file or system code by either scanning the appropriate bar code or entering the appropriate keypad value as indicated on the display.
Page 44 P460/P360 Memory Scanners Product Reference Guide Option Description 1. Set Default App Reinstalls the default application and returns all parameters to their factory settings (values listed in Table 5-1). The default application overwrites any MCL-Designer application and/or ADF rules. This option may be used to restore functionality to a scanner which has been loaded with a defective application.
Page 45 Operation Option Description 2. System Code Updates the scanner operating system (Firmware). An RS-232 cable is required. It connects the scanner (not the cradle) to the host. To enter this mode using the key pad, select this option on the system menu. Load New System Code <Enter>=Yes <BK>=No Press the <ENTER>...
Page 46: Parameter Control
P460/P360 Memory Scanners Product Reference Guide Parameter Control Parameter Control allows you to control the scanner parameters such as Scan Parameters and Set Default Params. Option Description 0. Scan Parameters This feature only works when used with an application generated...
Page 47: Erase File
Operation Erase File Erase File Erase File allows you to erase your scanner batch data. It is recommended that data files be transferred from the scanner to the host before erasing. A screen prompts you to indicate which file is being erased.
Page 48: Version
P460/P360 Memory Scanners Product Reference Guide Version Version This option displays the version of firmware (operating system) run by the scanner and the size of the scanner’s memory, such as 1024k (1 MB). For example, the firmware version shown on the display below is NBRVSMAP, also called Revision “P”...
Page 49: 123Scan
(Web site, floppy disk, or E-mail). A copy of 123Scan is on the CD included with your scanner. It is also available on the Symbol Web site http://www.symbol.com. Use the web site’s search tool to find “123Scan” and select the P460/360 product line.
Page 50: Suffix Values
P460/P360 Memory Scanners Product Reference Guide Suffix Values 123Scan generated programming bar codes for two commonly used suffixes (Enter and Tab) have been included in this Product Reference Guide. To append an Enter key to the transmitted bar code data, scan all nine (9) ADF rule bar codes and then the Reset Scanner bar code, in that order.
Page 51 Operation RESET SCANNER 3-19...
Page 52 P460/P360 Memory Scanners Product Reference Guide To append a Tab to the transmitted bar code data, scan all nine (9) ADF rule bar codes and then the Reset Scanner bar code, in that order. ASCII value 7009 ADF Rules 3-20...
Page 53 Operation RESET SCANNER 3-21...
Page 54: Scanning
The red laser turns off. Figure 3-1. Scanning a Bar Code Scan the Entire Symbol • Your scan beam must cross every bar and space on the symbol. • The larger the symbol, the farther away you should hold the scanner. •...
Page 55: Hold At An Angle
Operation Right Wrong Hold at an Angle Do not hold the scanner directly over the bar code. Laser light reflecting directly back into the scanner from the bar code is known as specular reflection. This strong light can “blind” the scanner and make decoding difficult. The area where specular reflection occurs is known as a “dead zone.”...
Page 56: Test Symbols
P460/P360 Memory Scanners Product Reference Guide Test Symbols To ensure your scanner is working properly, try scanning the following bar codes. If you have trouble, refer to Troubleshooting on page 4-2. CODE 128 3-24...
Page 57: P460/P360 1D Scanner Decode Zone
30 in. 35 in. 40 in. 45 in. 0 cm 12.7 cm 25.4 cm 38.1 cm 50.8 cm 63.5 cm 76.2 cm 88.9 cm 101.6 cm 114.3 cm Distance From Front Of Scanner Figure 3-3. P460/P360 1D Scanner Decode Zone 3-25...
Page 58: Keypad Operation
P460/P360 Memory Scanners Product Reference Guide Keypad Operation Instead of scanning a bar code, you can enter the bar code data using the keypad on the top of the scanner. By default, this feature is enabled. To disable alphanumeric data entry via the keypad, go to the symbologies tab inside 123Scan and remove the “X”...
Page 59 Operation transferred to the host yet. A high-pitched beep lets you know that the entry has been transferred to the host. To return to numeric mode, press the Mode key again. Pressing the Enter key saves the data. To put a decimal point (.) into numeric data, type in the numbers before the decimal point, then press the mode key, press the decimal, and press the mode key again.
Page 60 P460/P360 Memory Scanners Product Reference Guide 3-28...
Page 61: Chapter 4. Maintenance And Specifications
Chapter 4 Maintenance And Specifications Introduction This chapter explains how to maintain your scanner and the specifications for it. Maintenance • Do not allow any abrasive material to touch the scanner window. • Remove any dirt particles with a damp cloth. •...
Page 62: Troubleshooting
Bar code symbol is Check the symbol to ensure it is not defaced. Try unreadable. scanning test symbols of the same bar code type. Distance between Move the scanner closer to or further away from scanner and bar code the bar code.
Page 63 Maintenance And Specifications Table 4-1. Troubleshooting Table (Continued) Problem Possible Causes Possible Solutions Scanned data is Scanner is not Ensure the proper host type is selected. incorrectly displayed on programmed to work Check the scanner host type parameters or the host. with the host.
Page 64 Possible Causes Possible Solutions The scanner does not Bar code symbol is Check the symbol to ensure it is not defaced. Try scan the programming unreadable. scanning test symbols of the same bar code type. bar codes in this guide.
Page 65: Optional Accessories
The default application is now reinstalled and an ADF rule can be loaded. Note: If after performing these checks the symbol still does not scan, contact your distributor or call the Symbol Support Center. See Symbol Support Center on page page xi for the telephone number.
Page 66: Technical Specifications
Pitch ± 65° from normal ± 60° from normal Decode Depth of Field See P460/P360 1D Scanner Decode Zone on page 3-25. Print Contrast Minimum 20% absolute dark/light differential, measured at the wavelength of the laser diode. Ambient Light Immunity Artificial Lighting 450 ft.
Page 67: Pin-Outs
Maintenance And Specifications Pin-outs Cradle The following table shows the pin-outs for both COM1 and COM2 on the cradle. Table 4-3. Cradle Pin-outs Cradle BREQ VCC (out of cradle) Ground Synapse Data Synapse Clock RXD (into cradle) TXD (out of cradle) BACK...
Page 68: Scanner
P460/P360 Memory Scanners Product Reference Guide Scanner The following table shows the pin-outs for the scanner. Table 4-4. Scanner Pin-outs Scanner Not Used Power (+9V) Synapse Data Synapse Clock RXD (into scanner) TXD (out of scanner) Enable Charging Battery Charging:...
Page 69: Beeper Indications
Indication Standard Use Short high tone A bar code symbol was decoded (if decode beeper is enabled). 4 Beeps - long low tone A transmission error has been detected in a scanned symbol. The data is ignored. This occurs if a unit is not properly configured.
Page 70 P460/P360 Memory Scanners Product Reference Guide 4-10...
Page 71: Chapter 5. Parameter Menus
Chapter 5 Parameter Menus Introduction This chapter has the optional parameter bar codes necessary to program the Phaser memory scanner. Operational Parameters The Phaser memory scanner is shipped with the settings shown in Table 5-1. These default values are stored in non-volatile memory and are preserved even when the scanner is powered down.
Page 72 P460/P360 Memory Scanners Product Reference Guide The following table lists the defaults for all parameters. If you wish to change any option, scan the appropriate bar code(s). Table 5-1. Default Table Parameter 1D P460/P360 Defaults Page # Set Default Parameter...
Page 73 Parameter Menus Table 5-1. Default Table (Continued) Parameter 1D P460/P360 Defaults Page # UPC/EAN UPC-E Enable 5-26 UPC-A Enable 5-27 UPC-E1 Disable 5-28 EAN-8 Enable 5-29 EAN-13 Enable 5-30 Bookland EAN Disable 5-31 Decode UPC/EAN Supplementals Ignore 5-32 Decode UPC/EAN Supplemental Redundancy...
Page 74 P460/P360 Memory Scanners Product Reference Guide Table 5-1. Default Table (Continued) Parameter 1D P460/P360 Defaults Page # UCC/EAN-128 Enable 5-43 ISBT-128 Enable 5-45 Code 39 Code 39 Enable 5-46 Trioptic Code 39 Disable 5-47 Set Length(s) for Code 39 2 to 55...
Page 75 Parameter Menus Table 5-1. Default Table (Continued) Parameter 1D P460/P360 Defaults Page # Discrete 2 of 5 Disable 5-64 Set Length(s) for D 2 of 5 5-65 Codabar Codabar Disable 5-67 Set Lengths for Codabar 5-55 5-69 CLSI Editing Disable...
Page 76 P460/P360 Memory Scanners Product Reference Guide Table 5-1. Default Table (Continued) Parameter 1D P460/P360 Defaults Page # RS-232 RS-232 Host Type Standard 5-10 Baud Rate 9600 5-84 Parity None 5-85 Check Receive Errors Disable 5-86 Hardware Handshaking None 5-87 Software Handshaking...
Page 77: Set Default Parameter
Parameter Menus Set Default Parameter Scanning this bar code returns all parameters to the values listed in Table 5-1 (factory settings), but does not erase any programmed ADF rules. SET ALL DEFAULTS...
Page 78: Communication Protocol
P460/P360 Memory Scanners Product Reference Guide Communication Protocol The bar codes below set the communication protocol used by the default applications. • Scan & Transmit application for corded operation • Batch/Inventory application for uncorded (Batch) operation. The communication options are RS-232/Synapse or MCL-Net. If you select RS-232/ Synapse, the scanner automatically identifies whether an RS-232 or Synapse interface is required.
Page 79: Batch/Inventory Application
Parameter Menus Batch/Inventory Application This communication protocol is used when you are ready to transmit your batch records (data collected when the scanner was used without a cable attached) to a host. *RS-232/SYNAPSE (Batch/Inventory application only) MCL-NET (Batch/Inventory application only)
Page 80: Host Type
P460/P360 Memory Scanners Product Reference Guide Host Type RS-232 Host Types Most RS-232 hosts work fine with the default settings, however, three RS-232 hosts are set up with their own parameter default settings. Selecting the ICL, Fujitsu or Nixdorf RS-232 host interface sets the defaults listed below.
Page 81 Parameter Menus Scan the appropriate bar code below to select an RS-232 Host Interface. *STANDARD RS-232 ICL RS-232 NIXDORF RS-232 Mode A NIXDORF RS-232 Mode B FUJITSU RS-232 OPOS 5-11...
Page 82: Code Id Characters For Rs-232 Host Types
P460/P360 Memory Scanners Product Reference Guide Code ID Characters for RS-232 Host Types Selecting the ICL, Fujitsu, or Nixdorf RS-232 host interface enables the transmission of Code ID Characters as listed below. These Code ID Characters are not programmable and are separate from the Transmit Code ID feature.
Page 83: Sleep Time
Parameter Menus Sleep Time Scan the bar code below to select how long the scanner will “stay awake” (not power down) in seconds after a trigger pull or a key press. First scan this bar code, then enter a range from 05 to 32, using the Numeric Bar Codes on page 5-99.
Page 84: Date Separator
P460/P360 Memory Scanners Product Reference Guide Date Separator Scan the appropriate bar code below to select which separator to use when displaying the date. Choose FORWARD SLASH, DASH, COLON or NONE. *FORWARD SLASH (/) DASH (-) COLON (:) NONE 5-14...
Page 85: Hour Type
Parameter Menus Hour Type Scan the appropriate bar code below to select how to display the hour and transmit it to the host device. Choose 12 HOUR (6:00 pm) or 24 HOUR (18:00). 24 HOUR *12 HOUR 5-15...
Page 86: Decimal Separator
P460/P360 Memory Scanners Product Reference Guide Decimal Separator Scan the appropriate bar code below to select what separator to display when you hit the decimal point key on the keypad. Choose DECIMAL POINT (.) or COMMA (,). *DECIMAL POINT (.)
Page 87: Date Format
Parameter Menus Date Format Scan the appropriate bar code below to select how to format the date when it is displayed and transmitted to the host device. Choose MM/DD/YYYY or DD/MM/YYYY. *MM/DD/YYYY DD/MM/YYYY 5-17...
Page 88: Key Click
P460/P360 Memory Scanners Product Reference Guide Key Click Scan the appropriate bar code below to select whether the keypad click is enabled or not. Choose ENABLE or DISABLE. *ENABLE DISABLE 5-18...
Page 89: Laser On Time
Parameter Menus Laser On Time This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in 0.1 second increments from 0.5 to 9.9 seconds. Scan the bar code below to set a Laser On Time. Next scan two numeric bar codes beginning on page 5-99 that correspond to the desired time.
Page 90: Host Override
P460/P360 Memory Scanners Product Reference Guide Host Override This parameter allows the scanner to communicate when it is not on any auxiliary power supply. When this parameter is enabled, the scanner does not wait for cradle or cable connection, but just begins transmitting.
Page 91: Beeper Options
Parameter Menus Beeper Options Beeper Tone Scan the appropriate bar code below to select a decode beep frequency (tone). Choose LOW FREQUENCY, MEDIUM FREQUENCY, or HIGH FREQUENCY. LOW FREQUENCY MEDIUM FREQUENCY *HIGH FREQUENCY 5-21...
Page 92: Beeper Volume
P460/P360 Memory Scanners Product Reference Guide Beeper Volume Scan the appropriate bar code below to select a beeper volume. Choose LOW VOLUME, MEDIUM VOLUME, or HIGH VOLUME. LOW VOLUME MEDIUM VOLUME *HIGH VOLUME 5-22...
Page 93: Power Detect Beep
Parameter Menus Power Detect Beep Scan the appropriate barcode below to enable or disable the Power Detection Beep. POWER DETECT BEEP DISABLED *POWER DETECT BEEP ENABLED 5-23...
Page 94: Beep After Good Decode
P460/P360 Memory Scanners Product Reference Guide Beep After Good Decode Scan the appropriate bar code below to select whether or not the scanner beeps after a good decode. If DO NOT BEEP is selected, the beeper still operates during parameter menu scanning and indicates error conditions.
Page 95: Decode Options
Scan the appropriate bar code below to select whether or not a “No Read” message is transmitted. When enabled, if a symbol does not decode, “NR” is transmitted. When disabled, if a symbol does not read, nothing is sent to the host.
Page 96: Enable/Disable Upc-E
P460/P360 Memory Scanners Product Reference Guide Enable/Disable UPC-E Scan the appropriate bar code below to enable or disable UPC-E. *ENABLE UPC-E DISABLE UPC-E 5-26...
Page 97: Enable/Disable Upc-A
Parameter Menus Enable/Disable UPC-A Scan the appropriate bar code below to enable or disable UPC-A. *ENABLE UPC-A DISABLE UPC-A 5-27...
Page 98: Enable/Disable Upc-E1
P460/P360 Memory Scanners Product Reference Guide Enable/Disable UPC-E1 Scan the appropriate bar code below to enable or disable UPC-E1. ENABLE UPC-E1 *DISABLE UPC-E1 5-28...
Page 99: Enable/Disable Ean-8
Parameter Menus Enable/Disable EAN-8 Scan the appropriate bar code below to enable or disable EAN-8 or EAN-13. *ENABLE EAN-8 DISABLE EAN-8 5-29...
Page 100: Enable/Disable Ean-13
P460/P360 Memory Scanners Product Reference Guide Enable/Disable EAN-13 *ENABLE EAN-13 DISABLE EAN-13 5-30...
Page 101: Enable/Disable Bookland Ean
Parameter Menus Enable/Disable Bookland EAN Scan the appropriate bar code below to enable or disable Bookland EAN. ENABLE BOOKLAND EAN *DISABLE BOOKLAND EAN 5-31...
Page 102: Decode Upc/Ean Supplementals
P460/P360 Memory Scanners Product Reference Guide Decode UPC/EAN Supplementals Supplementals are characters (either 2 or 5) that are added on according to specific code format conventions (e.g., UPC A+2, UPC E+2, EAN 8+2). Three options are available. • If Decode UPC/EAN with supplementals is selected, UPC/EAN symbols without supplemental characters are not decoded.
Page 103: Decode Upc/Ean Supplemental Redundancy
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the number of times a symbol without supplementals is decoded before transmission. The range is from two to 20 times. Five or above is recommended when decoding a mix of UPC/EAN symbols with and without supplementals, and the autodiscriminate option is selected.
Page 104: Transmit Upc-A/Upc-E/Upc-E1 Check Digit
P460/P360 Memory Scanners Product Reference Guide Transmit UPC-A/UPC-E/UPC-E1 Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-A, UPC-E, or UPC-E1 check digit. *TRANSMIT UPC-A CHECK DIGIT DO NOT TRANSMIT UPC-A CHECK DIGIT...
Page 105: Upc-A Preamble
Three options are given for lead-in characters for UPC-A symbols transmitted to the host device: transmit system character only, transmit system character and country code (“0” for USA), and no preamble transmitted. The lead-in characters are considered part of the symbol. NO PREAMBLE (<DATA>) *SYSTEM CHARACTER (<SYSTEM CHARACTER>...
Page 106: Upc-E Preamble
P460/P360 Memory Scanners Product Reference Guide UPC-E Preamble Three options are given for lead-in characters for UPC-E symbols transmitted to the host device: Transmit system character only, transmit system character and country code (“0” for USA), and no preamble transmitted. The lead-in characters are considered part of the symbol.
Page 107: Upc-E1 Preamble
Three options are given for lead-in characters for UPC-E1 symbols transmitted to the host device: Transmit system character only, transmit system character and country code (“0” for USA), and no preamble transmitted. The lead-in characters are considered part of the symbol. NO PREAMBLE (<DATA>) *SYSTEM CHARACTER (<SYSTEM CHARACTER>...
Page 108: Convert Upc-E To Upc-A
P460/P360 Memory Scanners Product Reference Guide Convert UPC-E to UPC-A This parameter converts UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Page 109: Convert Upc-E1 To Upc-A
Parameter Menus Convert UPC-E1 to UPC-A This parameter converts UPC-E1 decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Scanning DO NOT CONVERT UPC-E1 TO UPC-A allows you to transmit UPC-E1 decoded data.
Page 110: Ean Zero Extend
P460/P360 Memory Scanners Product Reference Guide EAN Zero Extend If this parameter is enabled, five leading zeros are added to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols. Disabling this parameter returns EAN-8 symbols to their normal format.
Page 111: Upc/Ean Coupon Code
Parameter Menus UPC/EAN Coupon Code When this parameter is enabled, the Phaser decodes UPC-A, UPC-A with 2 supplemental characters, UPC-A with 5 supplemental characters, and UPC-A/EAN128 bar codes. AUTODISCRIMINATE UPC/EAN SUPPLEMENTALS on page 5-32 must be enabled. ENABLE UPC/EAN COUPON CODE *DISABLE UPC/EAN COUPON CODE 5-41...
Page 112: Enable/Disable Code 128
P460/P360 Memory Scanners Product Reference Guide Enable/Disable Code 128 Scan the appropriate bar code below to enable or disable Code 128. *ENABLE CODE 128 DISABLE CODE 128 Note: The “|” character and the NULL character cannot be embedded in the barcode to be scanned when using Code 128.
Page 113: Enable/Disable Ucc/Ean-128
Parameter Menus Enable/Disable UCC/EAN-128 Scan the appropriate bar code below to enable or disable UCC/EAN-128. (See Appendix A, Bar Code Information for details on UCC/EAN-128.) *ENABLE UCC/EAN-128 DISABLE UCC/EAN-128 5-43...
Page 114: Lengths For Code 128
P460/P360 Memory Scanners Product Reference Guide Lengths for Code 128 No length setting is required for Code 128. The default setting is Any Length. 5-44...
Page 115: Enable/Disable Isbt 128
Parameter Menus Enable/Disable ISBT 128 To enable or disable ISBT 128, scan the appropriate bar code below. *Enable ISBT 128 Disable ISBT 128 5-45...
Page 116: Enable/Disable Code 39
P460/P360 Memory Scanners Product Reference Guide Enable/Disable Code 39 Scan the appropriate bar code below to enable or disable Code 39. *ENABLE CODE 39 DISABLE CODE 39 5-46...
Page 117: Enable/Disable Trioptic Code 39
Parameter Menus Enable/Disable Trioptic Code 39 Trioptic Code 39 symbols always contain six characters. Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously. If you get an error beep when enabling Trioptic Code 39, disable Code 39 Full ASCII and try again. To enable or disable Trioptic Code 39, scan the appropriate bar code below.
Page 118: Set Lengths For Code 39
P460/P360 Memory Scanners Product Reference Guide Set Lengths for Code 39 Lengths for Code 39 may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
Page 119 Parameter Menus Set Lengths for Code 39 (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode Code 39 symbols containing between 4 and 12 characters, first scan Code 39 Length Within Range. Then scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading zero).
Page 120: Code 39 Check Digit Verification
P460/P360 Memory Scanners Product Reference Guide Code 39 Check Digit Verification When enabled, this parameter checks the integrity of a Code 39 symbol to ensure it complies with specified algorithms. Only those Code 39 symbols which include a modulo 43 check digit are decoded when this parameter is enabled.
Page 121: Transmit Code 39 Check Digit
Parameter Menus Transmit Code 39 Check Digit Scan the appropriate bar code below to transmit the data with or without the check digit. TRANSMIT CODE 39 CHECK DIGIT (ENABLE) *DO NOT TRANSMIT CODE 39 CHECK DIGIT (DISABLE) 5-51...
Page 122: Enable/Disable Code 39 Full Ascii
P460/P360 Memory Scanners Product Reference Guide Enable/Disable Code 39 Full ASCII Scan the appropriate bar code below to enable or disable Code 39 Full ASCII. When enabled, the ASCII character set assigns a code to letters, punctuation marks, numerals, and most control keystrokes on the keyboard.
Page 123: Convert Code 39 To Code 32
Parameter Menus Convert Code 39 to Code 32 Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. Note: Code 39 must be enabled in order for this parameter to function. CONVERT CODE 39 TO CODE 32 (ENABLE) *DO NOT CONVERT CODE 39 TO CODE 32 (DISABLE)
Page 124: Code 32 Prefix
P460/P360 Memory Scanners Product Reference Guide Code 32 Prefix Scan the appropriate bar code below to enable or disable the prefix character “A” to all Code 32 bar codes. Note: Convert Code 39 to Code 32 must be enabled for this parameter to function.
Page 125: Enable/Disable Code 93
Parameter Menus Enable/Disable Code 93 Scan the appropriate bar code below to enable or disable Code 93. ENABLE CODE 93 *DISABLE CODE 93 5-55...
Page 126: Set Lengths For Code 93
P460/P360 Memory Scanners Product Reference Guide Set Lengths for Code 93 Lengths for Code 93 may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
Page 127 Parameter Menus Set Lengths for Code 93 (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode Code 93 symbols containing between 4 and 12 characters, first scan Code 93 Length Within Range. Then scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading zero).
Page 128: Enable/Disable Interleaved 2 Of 5
P460/P360 Memory Scanners Product Reference Guide Enable/Disable Interleaved 2 of 5 Scan the appropriate bar code below to enable or disable Interleaved 2 of 5. *ENABLE INTERLEAVED 2 OF 5 DISABLE INTERLEAVED 2 OF 5 5-58...
Page 129: Set Lengths For Interleaved 2 Of 5
Parameter Menus Set Lengths for Interleaved 2 of 5 Lengths for I 2 of 5 may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters) the code contains and includes check digits.
Page 130 P460/P360 Memory Scanners Product Reference Guide Set Lengths for Interleaved 2 of 5 (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode I 2 of 5 symbols containing between 4 and 12 characters, first scan I 2 of 5 Length Within Range.
Page 131: I 2 Of 5 Check Digit Verification
Parameter Menus I 2 of 5 Check Digit Verification When enabled, this parameter checks the integrity of an I 2 of 5 symbol to ensure it complies with a specified algorithm, either USS (Uniform Symbology Specification), or OPCC (Optical Product Code Council).
Page 132: Transmit I 2 Of 5 Check Digit
P460/P360 Memory Scanners Product Reference Guide Transmit I 2 of 5 Check Digit Scan the appropriate bar code below to transmit the data with or without the check digit. TRANSMIT I 2 of 5 CHECK DIGIT (ENABLE) *DO NOT TRANSMIT I 2 of 5 CHECK DIGIT...
Page 133: Convert I 2 Of 5 To Ean-13
Parameter Menus Convert I 2 of 5 to EAN-13 This parameter converts a 14 character I 2 of 5 code into EAN-13, and transmits to the host as EAN-13. In order to accomplish this, the I 2 of 5 code must be enabled, one length must be set to 14, and the code must have a leading zero and a valid EAN-13 check digit.
Page 134: Enable/Disable Discrete 2 Of 5
P460/P360 Memory Scanners Product Reference Guide Enable/Disable Discrete 2 of 5 Scan the appropriate bar code below to enable or disable Discrete 2 of 5. ENABLE DISCRETE 2 OF 5 *DISABLE DISCRETE 2 OF 5 5-64...
Page 135: Set Lengths For Discrete 2 Of 5
Parameter Menus Set Lengths for Discrete 2 of 5 Lengths for D 2 of 5 may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits.
Page 136 P460/P360 Memory Scanners Product Reference Guide Set Lengths for Discrete 2 of 5 (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode D 2 of 5 symbols containing between 4 and 12 characters, first scan D 2 of 5 Length Within Range.
Page 137: Enable/Disable Codabar
Parameter Menus Enable/Disable Codabar Scan the appropriate bar code below to enable or disable Codabar. ENABLE CODABAR *DISABLE CODABAR 5-67...
Page 138: Set Lengths For Codabar
P460/P360 Memory Scanners Product Reference Guide Set Lengths for Codabar Lengths for Codabar may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters) the code contains.
Page 139 Parameter Menus Set Lengths for Codabar (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode Codabar symbols containing between 4 and 12 characters, first scan Codabar Length Within Range. Then scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading zero).
Page 140: Clsi Editing
CLSI Editing If enabled, this parameter strips the start and stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Note: Symbol length does not include start and stop characters. ENABLE CLSI EDITING...
Page 141: Notis Editing
Parameter Menus NOTIS Editing If enabled, this parameter strips the start and stop characters from a decoded Codabar symbol. ENABLE NOTIS EDITING *DISABLE NOTIS EDITING 5-71...
Page 142: Enable/Disable Msi Plessey
P460/P360 Memory Scanners Product Reference Guide Enable/Disable MSI Plessey Scan the appropriate bar code below to enable or disable MSI Plessey. ENABLE MSI PLESSEY *DISABLE MSI PLESSEY 5-72...
Page 143: Set Lengths For Msi Plessey
Parameter Menus Set Lengths for MSI Plessey Lengths for MSI Plessey may be set for any length, one or two discrete lengths, or lengths within a specific range. The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits.
Page 144 P460/P360 Memory Scanners Product Reference Guide Set Lengths for MSI Plessey (Continued) Length Within Range - This option allows you to decode a code type within a specified range. For example to decode MSI Plessey symbols containing between 4 and 12 characters, first scan MSI Plessey Length Within Range.
Page 145: Msi Plessey Check Digits
Parameter Menus MSI Plessey Check Digits These check digits at the end of the bar code verify the integrity of the data. At least one check digit is always required. Check digits are not automatically transmitted with the data. *ONE MSI PLESSEY CHECK DIGIT TWO MSI PLESSEY CHECK DIGITS 5-75...
Page 146: Transmit Msi Plessey Check Digit
P460/P360 Memory Scanners Product Reference Guide Transmit MSI Plessey Check Digit Scan the appropriate bar code below to transmit the data with or without the check digit. TRANSMIT MSI PLESSEY CHECK DIGIT (ENABLE) *DO NOT TRANSMIT MSI PLESSEY CHECK DIGIT...
Page 147: Msi Plessey Check Digit Algorithm
Parameter Menus MSI Plessey Check Digit Algorithm When the two MSI Plessey check digits option is selected, an additional verification is required to ensure integrity. Either of the two following algorithms may be selected. MOD 10/MOD 11 *MOD 10/MOD 10 5-77...
Page 148: Security Options
P460/P360 Memory Scanners Product Reference Guide Security Options Linear Code Type Security Levels The Phaser offers four levels of decode security for linear code types (e.g., Code 39, Interleaved 2 of 5). Higher security levels are selected for decreasing levels of bar code quality.
Page 149: Linear Security Level 3
Parameter Menus Linear Security Level 3 Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times: Code Type Length MSI Plessey 4 or less D 2 of 5 8 or less I 2 of 5 8 or less...
Page 150: Bi-Directional Redundancy
P460/P360 Memory Scanners Product Reference Guide Bi-directional Redundancy This parameter is only valid when a Linear Code Type Security Level (see page 5-78) is enabled. When this parameter is enabled, a bar code must be successfully scanned in both directions (forward and reverse) before being decoded.
Page 151: Upc/Ean Security Level 0
Parameter Menus UPC/EAN Security Level The Phaser offers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for decreasing levels of bar code quality. There is an inverse relationship between security and scanner aggressiveness, so be sure to choose only that level of security necessary for any given application.
Page 152: Upc/Ean Security Level 3
P460/P360 Memory Scanners Product Reference Guide UPC/EAN SECURITY LEVEL 2 UPC/EAN Security Level 3 If you have tried Security Level 2, and are still experiencing misdecodes, select this security level. Be advised that selecting this option is an extreme measure against mis-decoding severely out of spec bar codes.
Page 153: Rs-232 Parameters
Parameter Menus RS-232 Parameters Baud Rate Baud rate is the number of bits of data transmitted per second. The scanner's baud rate setting should match the data rate setting of the host device. If not, data may not reach the host device or may reach it in distorted form.
Page 154 P460/P360 Memory Scanners Product Reference Guide BAUD RATE 4800 *BAUD RATE 9600 BAUD RATE 19200 BAUD RATE 38400 5-84...
Page 155: Parity
Parameter Menus Parity A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. If you select ODD parity, the parity bit has a value 0 or 1, based on data, to ensure that an odd number of 1 bits are contained in the coded character.
Page 156: Check Receive Errors
P460/P360 Memory Scanners Product Reference Guide Select SPACE parity and the parity bit is always 0. SPACE If no parity is required, select NONE. *NONE Check Receive Errors Select whether or not the parity, framing, and overrun of received characters are checked.
Page 157: Hardware Handshaking
Parameter Menus Hardware Handshaking The data interface consists of an RS-232 port. The port has been designed to operate either with or without the hardware handshaking lines, RTS, Request to Send, and CTS, Clear to Send. If Standard RTS/CTS handshaking is selected, scan data is transmitted according to the following sequence: •...
Page 158 P460/P360 Memory Scanners Product Reference Guide Scan the bar code below if no Hardware Handshaking is desired. *NONE Scan the bar code below to select Standard RTS/CTS Hardware Handshaking. STANDARD RTS/CTS When RTS/CTS Option 1 is selected, the cradle asserts RTS before transmitting and ignores the state of CTS.
Page 159: Software Handshaking
Parameter Menus When Option 2 is selected, RTS is always high or low (user-programmed logic level). However, the scanner waits for CTS to be asserted before transmitting data. If CTS is not asserted within two seconds (default), the scanner issues an error indication and discards the data.
Page 160: Ack/Nak
P460/P360 Memory Scanners Product Reference Guide ACK/NAK When this option is selected, after transmitting data, the cradle expects either an ACK, Acknowledge, or NAK, Negative Acknowledge, response from the host. Whenever a NAK is received, the cradle transmits the same data again and waits for either an ACK or NAK.
Page 161: Ack/Nak With Enq
Parameter Menus ACK/NAK with ENQ This combines the two previous options. ACK/NAK with ENQ XON/XOFF An XOFF, Transmit Off, character turns the scanner transmission off until the scanner receives an XON, Transmit On, character. There are two situations for XON/XOFF: •...
Page 162: Host Serial Response Time-Out
P460/P360 Memory Scanners Product Reference Guide Host Serial Response Time-out This parameter specifies how long the scanner waits for an ACK, NAK or CTS before determining that a transmission error has occurred. This only applies when in one of the ACK/NAK Software Handshaking modes, or RTS/CTS Hardware Handshaking option.
Page 163: Stop Bit Select
Parameter Menus Stop Bit Select The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits (one or two) selected depends on the number the receiving terminal is programmed to accommodate.
Page 164: Beep On
P460/P360 Memory Scanners Product Reference Guide Beep on <BEL> When this parameter is enabled, the scanner beeps when a <BEL> character is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to indicate an illegal entry or other important event.

Page 165: Mcl-Net Parameters
Parameter Menus MCL-Net Parameters MCL-Net Baud Rate Baud rate is the number of bits of data transmitted per second. Scan the appropriate bar code below to set the MCL-Net baud rate. The default baud rate is 38400. BAUD RATE 600 BAUD RATE 1200 BAUD RATE 2400 5-95...
Page 166 P460/P360 Memory Scanners Product Reference Guide BAUD RATE 4800 BAUD RATE 9600 BAUD RATE 19200 *BAUD RATE 38400 5-96...
Page 167: Mcl-Net Hex Addressing Mode
Parameter Menus MCL-Net Hex Addressing Mode Scan the appropriate bar code below to set the MCL-Net Hex addressing mode. The default mode is Disabled. *MCL-NET HEX ADDRESSING DISABLED MCL-NET HEX ADDRESSING ENABLED 5-97...
Page 168: Scanner Address
P460/P360 Memory Scanners Product Reference Guide Scanner Address Scan the following barcode, followed by 3 digits from the numeric barcode section (starting on page 5-99), to set the address of the scanner (scanner ID). The default address is set to 001.
Page 169: Numeric Bar Codes
Parameter Menus Numeric Bar Codes For parameters requiring specific numeric values, scan the appropriately numbered bar code(s). 5-99...
Page 170 P460/P360 Memory Scanners Product Reference Guide Numeric Bar Codes (Continued) 5-100...
Page 171: Cancel
Parameter Menus Numeric Bar Codes (Continued) Cancel If you make an error, or wish to change your selection, scan the bar code below. CANCEL 5-101...
Page 172 P460/P360 Memory Scanners Product Reference Guide 5-102...
Page 173: Appendix A Bar Code Information
UCC/EAN-128 symbols are distinguished by a leading FNC 1 character as the first or second character in the symbol. Other FNC 1 characters are used to delineate fields. When EAN-128 symbols are read, they are transmitted after special formatting strips off the leading FNC 1 character and replaces other FNC 1 characters with the ASCII 29 GS control character.
Page 174 P460/P360 Memory Scanners Product Reference Guide Table A-1. Reading Standard Code128 & UCC/EAN 128 Standard UCC/EAN-128 Effect and Example Code 128 Disable Disable No Code 128 symbols can be read. Disable Enable Read only symbols with leading FNC 1. Examples:...
Page 175: Aim Code Identifiers
Bar Code Information AIM Code Identifiers Each AIM Code Identifier contains the three-character string ]cm where: = Flag Character (ASCII 93) = Code Character (see Table A-2) = Modifier Character (see Table A-3) Table A-2. Code Characters Code Character Code Type Code 39 Code 128 (all variants) UPC/EAN...
Page 176 No option specified at this time. Always transmit 0. Example: A Trioptic bar code 412356 is transmitted as ]X0412356 Code 128 Standard data packet, no Function code 1 in first symbol position. Function code 1 in first symbol character position.
Page 177 Bar Code Information Table A-3. Modifier Characters (Cont’d) Code Type Option Value Option Codabar No check digit processing. Reader has checked check digit. Reader has stripped check digit before transmission. Example: A Codabar bar code without check digit, 4123, is transmitted as ]F04123 Code 93 No options specified at this time.
Page 178: Symbol Code Identifier Characters
P460/P360 Memory Scanners Product Reference Guide According to AIM standards, a UPC with supplemental bar code is transmitted in one of the following formats: ]E0 (UPC chars) (terminator) ]E2 (supplemental) (terminator) or ]E2 (supplemental) (terminator) ]E0 (UPC chars) (terminator) In the Phaser, however, the format is changed to:...
Page 179 Bar Code Information Table A-5. ASCII Character Set ASCII Full ASCII Keystroke ASCII Full ASCII Keystroke Code 39 Code 39 Value Value Encode Char. Encode Char 1000 CTRL 2 1024 CTRL X 1001 CTRL A 1025 CTRL Y 1002 CTRL B 1026 CTRL Z 1003...
Page 180 P460/P360 Memory Scanners Product Reference Guide Table A-5. ASCII Character Set (Cont’d) ASCII Full ASCII Keystroke ASCII Full ASCII Keystroke Code 39 Code 39 Value Value Encode Char. Encode Char 1048 1073 1049 1074 1050 1075 1051 1076 1052 1077...
Page 181 Bar Code Information Table A-5. ASCII Character Set (Cont’d) ASCII Full ASCII Keystroke ASCII Full ASCII Keystroke Code 39 Code 39 Value Value Encode Char. Encode Char 1098 1113 1099 1114 1100 1115 1101 1116 1102 1117 1103 1118 1104 1119 1105 1120...
Page 182 P460/P360 Memory Scanners Product Reference Guide Table A-5. ASCII Character Set (Cont’d) ALT Keys Keystroke ALT Keys Keystroke ALT Keys Keystroke 2064 ALT 2 2075 ALT K 2086 ALT V 2065 ALT A 2076 ALT L 2087 ALT W 2066...
Page 183 Bar Code Information Table A-5. ASCII Character Set (Cont’d) PF Keys Keystroke PF Keys Keystroke PF Keys Keystroke 4001 PF 1 4009 PF 9 4017 PF 17 4002 PF 2 4010 PF 10 4018 PF 18 4003 PF 3 4011 PF 11 4019 PF 19...
Page 184 P460/P360 Memory Scanners Product Reference Guide Table A-5. ASCII Character Set (Cont’d) Numeric Keystroke Numeric Keystroke Numeric Keystroke Keypad Keypad Keypad 6042 6049 6056 6043 6050 6057 6044 Undefined 6051 6058 Enter 6045 6062 6059 Num Lock 6046 6063 6060...
Page 185: Appendix B Automatic Project Download
(\) in the path name should be replaced with the string “\5C”, so that the MCL code running on the scanner does not inadvertently convert part of the path name to the equivalent Hex Character. An example PHASER.CFG file is shown below: x|c:\5Cmcl-p460\5Cdesigner\5Csample1.prj...
Page 186 P470/370 RF Scanner Product Reference Guide Note that designer always appends the .prj suffix to the directories it creates to store project files. The PROJECT.CMD file will be automatically generated by the MCL-Designer application.
