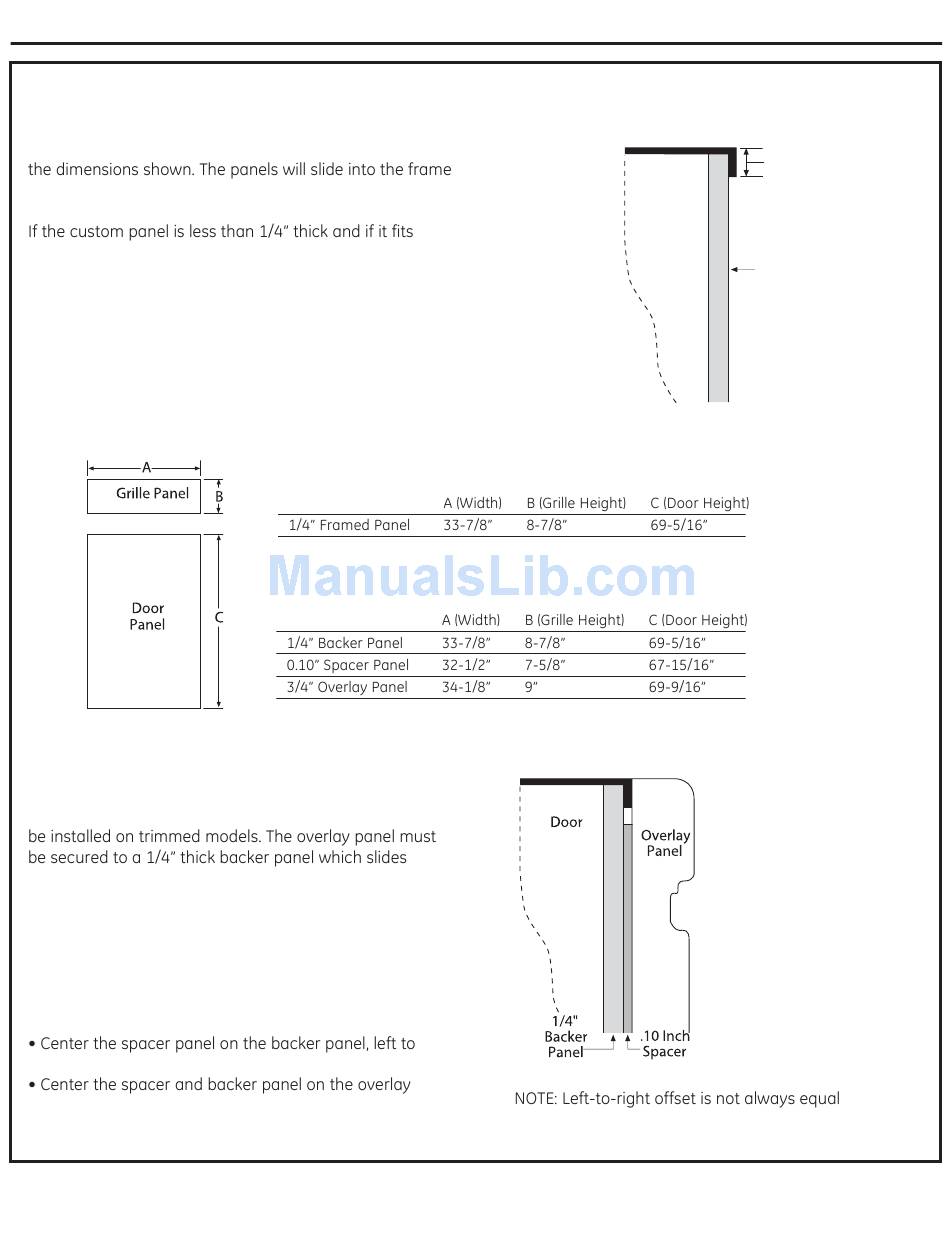

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must be cut to
on the door and grille.
loosely in the door frame, it can be backed up with a piece
of filler material or foam tape to improve the fit.
IMPORTANT NOTE: Maximum weight for door panel
is 67 pounds. Maximum total weight for assembled grille
panel is 11 pounds.
3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may
into the trim. A spacer panel 0.10" thick must be placed
between the overlay and backer panel.
IMPORTANT NOTE: Maximum total weight for assembled
door panel is 67 pounds. Maximum total weight for
assembled grille panel is 11 pounds.
Assemble the panels with glue and screws.
right and top to bottom. Secure the panels with glue.
panel and secure with glue and screws. Screws must
be countersunk into the backer panel.
Design Guide
Framed Panel Dimensions
Overlay Panel Dimensions
to top-to-bottom offset.
8
5/16"
Trim
Door
Reveal
1/4"
Panel
