Side Panels - Monogram Built-in refrigerators Installation Instructions Manual

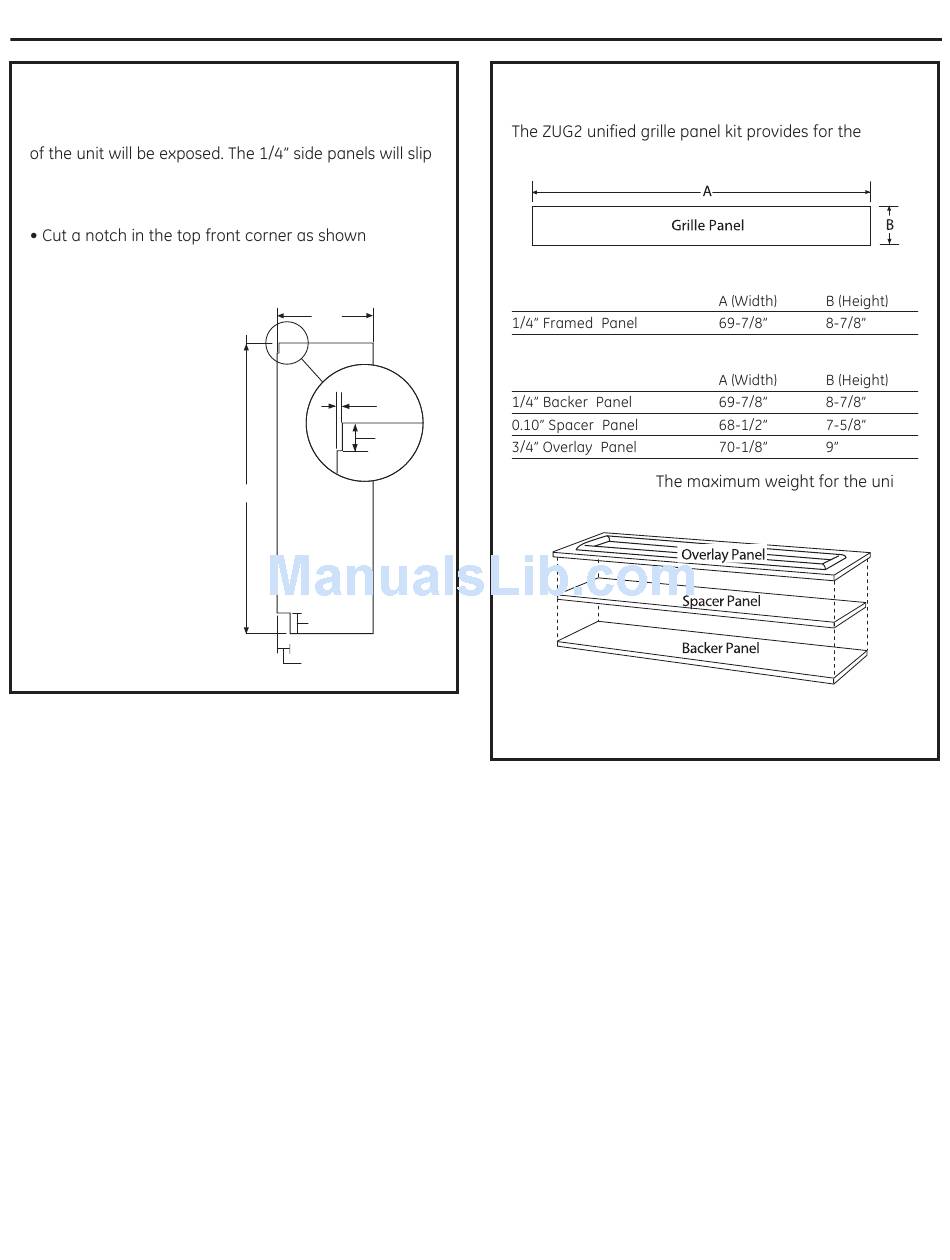

SIDE PANELS

Side panels must be used whenever the sides
into the side case trim. Secure the panels to the unit
with stick-on hook and loop fastener strips. Order
the side panels from the cabinet manufacturer.
to allow clearance for corner keys in the front
side trim.
* Depending on
installation height.
Design Guide
24"
3/16"
1-7/8"
*84"
*3" to 4"
2-9/16"
ZUG2 GRILLE PANEL DIMENSIONS
installation of a framed or overlay grille panel.
Framed Panel Dimensions
Overlay Panel Dimensions
IMPORTANT NOTE:
fied grill is 25 pounds.
Assemble the overlay panels in the same manner
as the door panel.
9
-
