Monogram Built-in refrigerators Installation Instructions Manual page 4

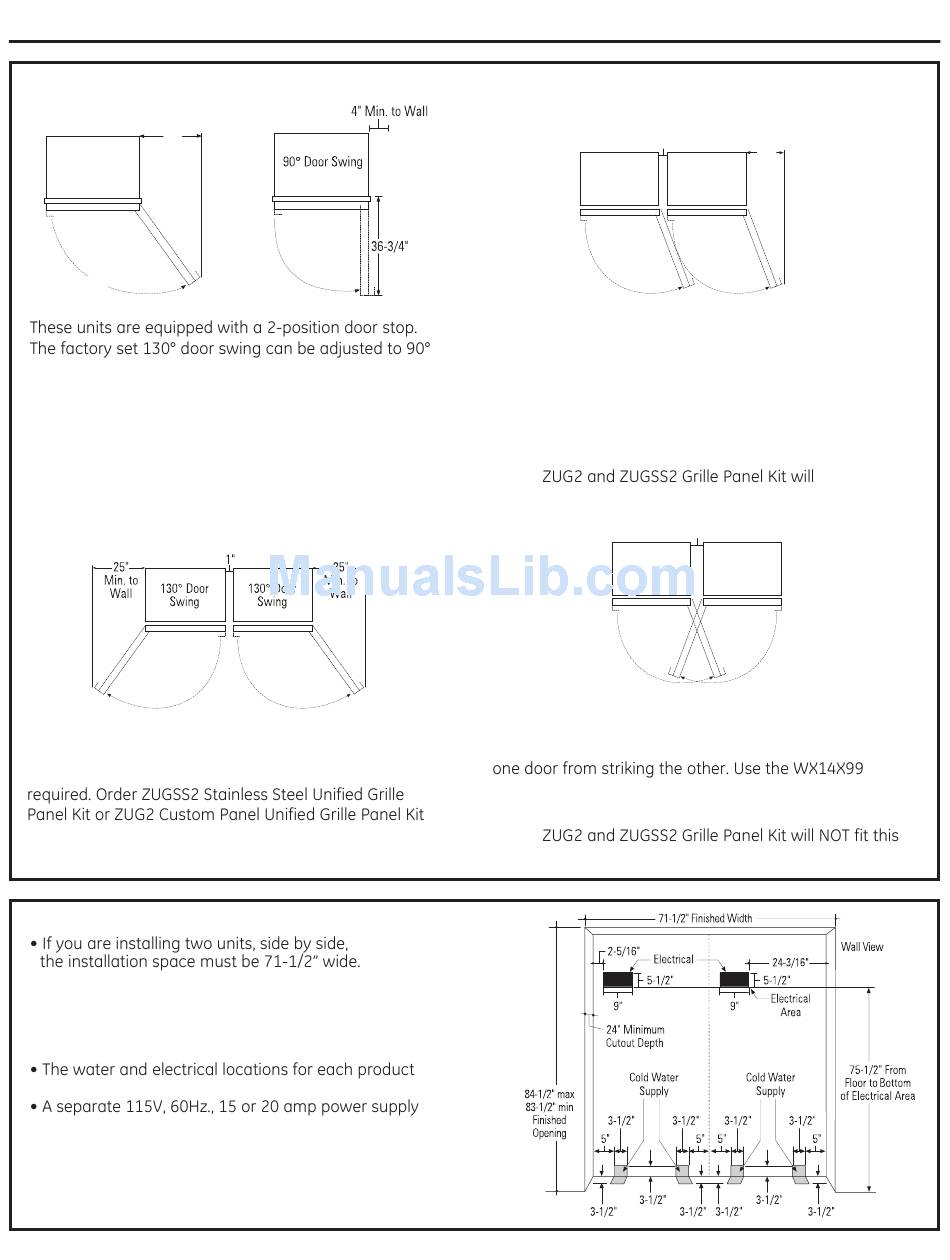

CLEARANCES
25"
Min. to
130° Door
Wall
Swing
130°
if clearance to adjacent cabinets or walls is restricted.
Order WX14X99 door stop for precise settings between
90° and 130°.
When Installed into a corner:
Allow 25" for a full 130° door swing. Allow 15" for pan
removal. Allow 4" min. clearance when door swing
is adjusted to a 90° opening for pan access, but pan
removal is restricted.
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door
swing product, a 1" clearance between the units is
for one continuous grille panel.
ZUG2, ZUGSS2 Unified Grille Panel Kit
Note: Additional cutout width may be required when
side panels are used. Add side panel thickness
to the finished cutout to calculate rough-in width.
must be located as shown.
is recommended for each product.
Design Guide
Clearances for two products installed side-by-side
with the same (left or right) door swing
Allow 2" minimum clearance between the products
to prevent door swing interference. Order the WX14X99
adjustable door stop to reduce the factory set 130°
door swing. Allow 15" minimum to a wall to achieve
full drawer extension and pan removal.
NOTE:
installation.
Clearances for two products installed side-by-side
with right and left side hinges together
Allow 5" minimum between the two products to prevent
adjustable door stop to reduce the factory set 130°
door swing and to allow pan removal.
NOTE:
installation.
4
2"
15"
NOT fit this
5"
