Design Guide

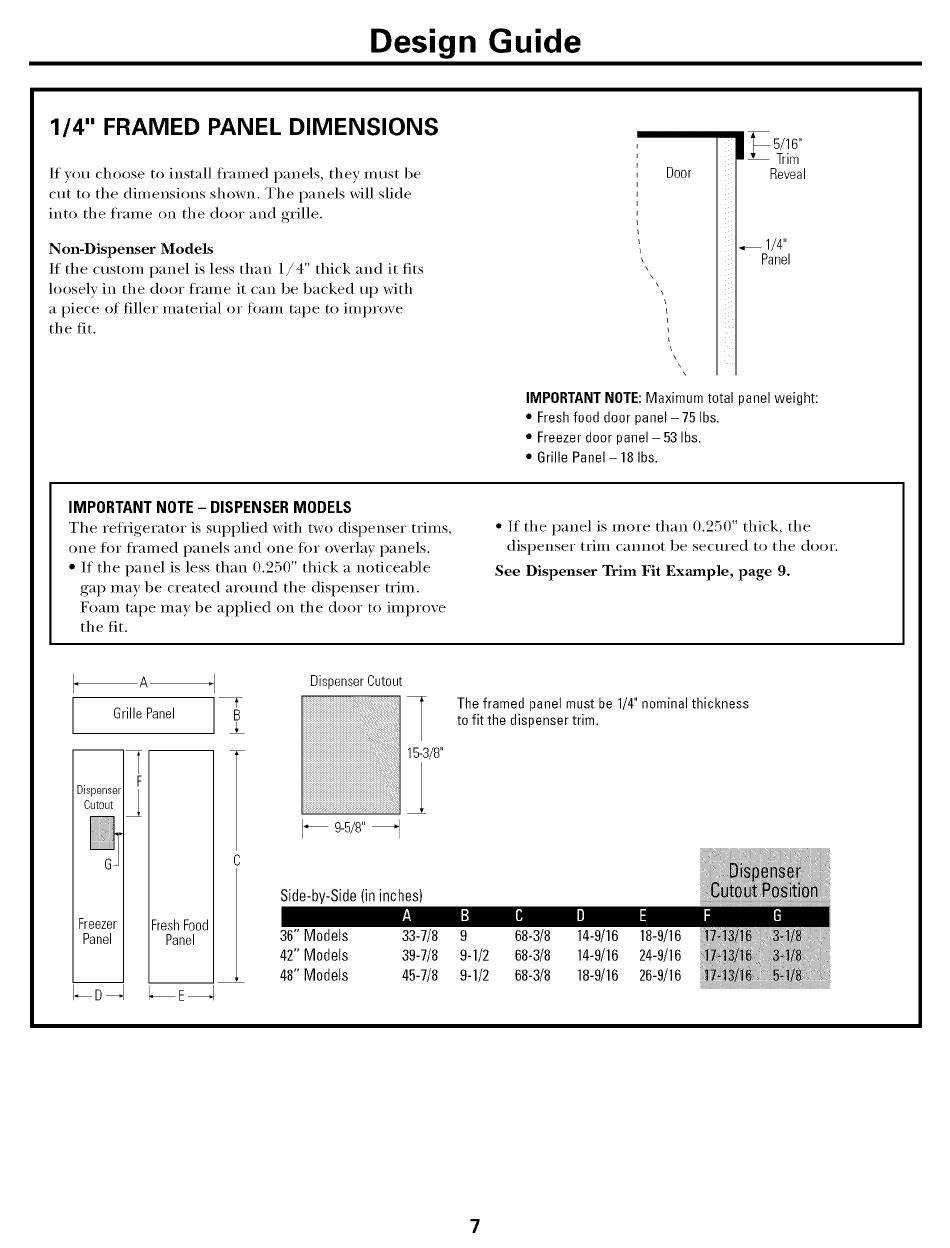

1/4" FRAMED PANEL DIMENSIONS
If _ou choose to install fl'amed panels, they must be
cut to the dimensions shown. The panels will slide
into the fraine on the door and grille.
Non-Dispenser Models
If the custom panel is less than 1/4" thick and it fits
loosely in the door fl'ame it can be backed up with
a piece of filler material or finm_ tape to improve
the fit,
1_5/18"
L Trim
Door Reveal
\
IMPORTANTNOTE:Maximum total panel weight:
• Fresh food door panel-75 Ibs.
• Freezer door panel -53 Ibs.
• Grille Panel - 18 Ibs.
IMPORTANT
NOTE
- DISPENSER MODELS
The reli'igerator is sui_plied with two dispenser trims,
one fi)r fl'amed panels and one fi)r overlay panels.
• If the panel is less than 0,250" thick a noticeable
gap may be created around the dispenser trim.
Foam tape may be applied on the door to improve
the fit.
• If the panel is more than 0,250" thick, the
dispenser trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
Grille Panel
t
F
Dispenser _ ,
Cutout
C
Freezer Fresh Food
Panel Panel
m m
I_D_I I_E_
Dispenser Cutout
I_ 94/8"
Side-by-Side (in inches)
15-3/8"
The framed panel must be 1/4" nominal thickness
to fit the dispenser trim.
36"Models 33-7/8 9 68-3/8 14-9/16 18-9/16
42"Models 39-7/8 9-1/2 68-3/8 14-9/16 24-9/16
48"Models 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16
