PCI-DAS6013 and PCI-DAS6014 User's Guide
Rising Edge Polarity
Falling Edge Polarity
STARTSCAN signal
The STARTSCAN output signal indicates when a scan of channels has been initiated.
You can program this signal to be available at any of the AUXOUT pins. The
STARTSCAN output signal is a 50 ns wide pulse the leading edge of which indicates
the start of a channel scan.

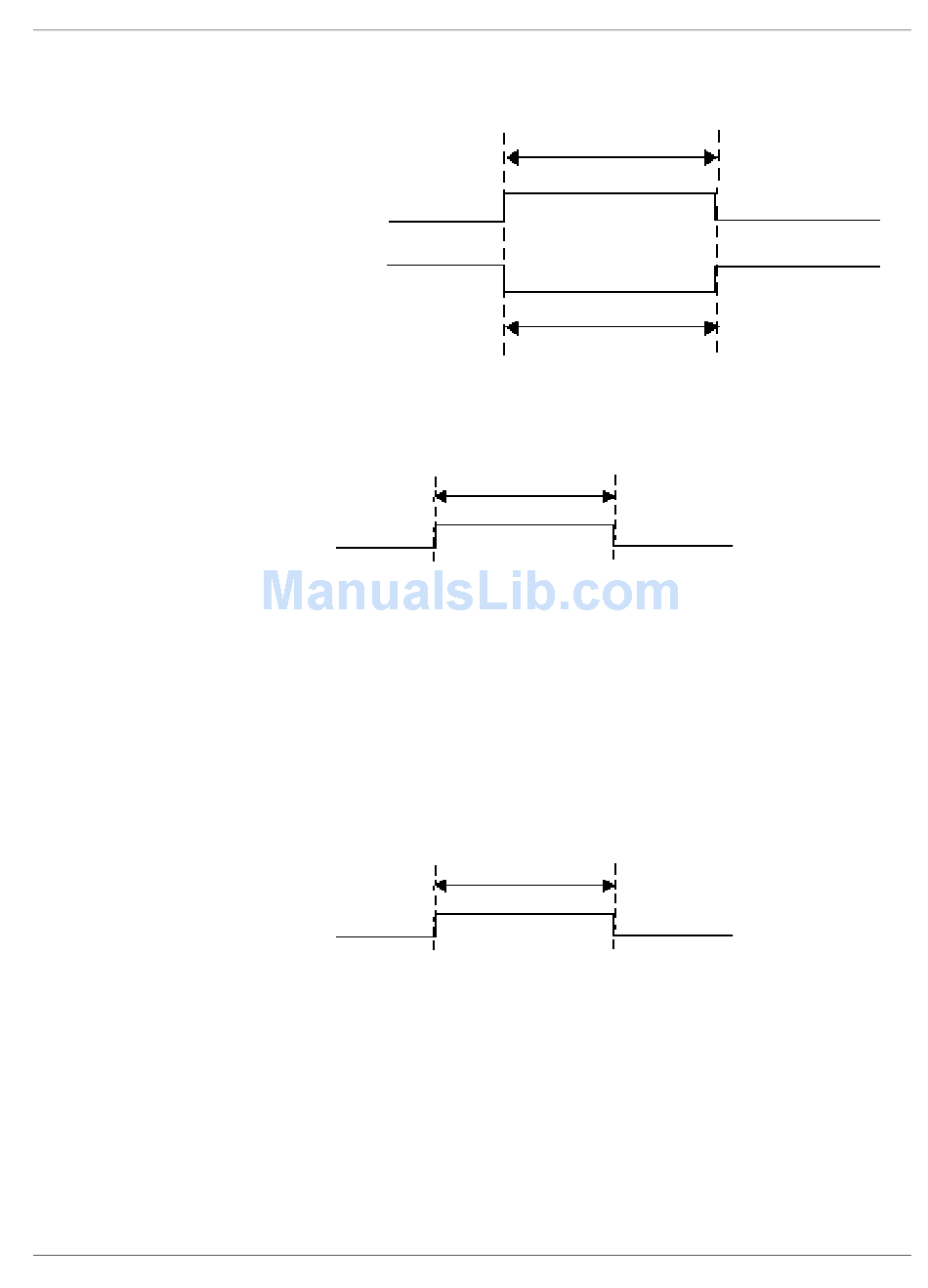

Figure 4-7. A/D STOP TRIGGER Input Signal Timing
Figure 4-8. A/D STOP TRIGGER Output Signal Timing
Figure 4-9. STARTSCAN Start of Scan Timing
t
w
t
= 37.5 ns minimum
w
t
w
t
= 50 ns
w
t
w
t
= 50 ns
w
4-7
Functional Details
