PCI-DAS6013 and PCI-DAS6014 User's Guide
DAQ signal timing
The DAQ timing signals are:
SCANCLK
A/D START TRIGGER
A/D STOP TRIGGER
STARTSCAN
SSH
A/D CONVERT
A/D PACER GATE
A/D EXTERNAL TIMEBASE
A/D STOP
SCANCLK signal
SCANCLK is an output signal that may be used for switching external multiplexers. It is
a 400 ns wide pulse that follows the CONVERT signal after a 50 ns delay. This is
adequate time for the analog input signal to be acquired so that the next signal may be
switched in. The polarity of the SCANCLK signal is programmable. The default output
pin for the SCANCLK signal is AUXOUT2, but any of the AUXOUT pins may be
programmed as a SCANCLK output.
CONVERT
SCANCLK

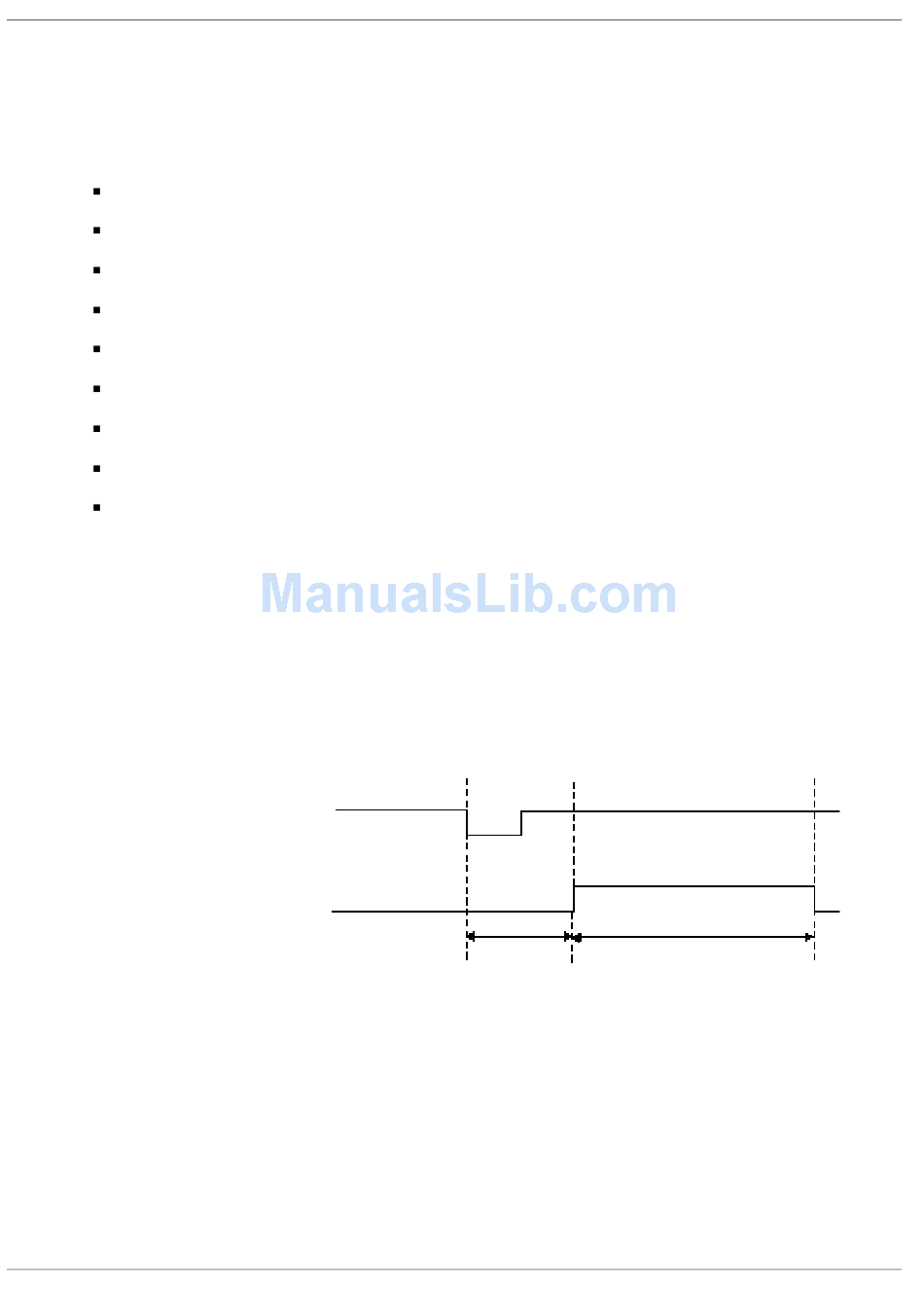

Figure 4-2. SCANCLK Signal Timing
t
t
d
d
t
= 50 ns
d
4-4
Functional Details
t
w
t
= 400 ns
w
