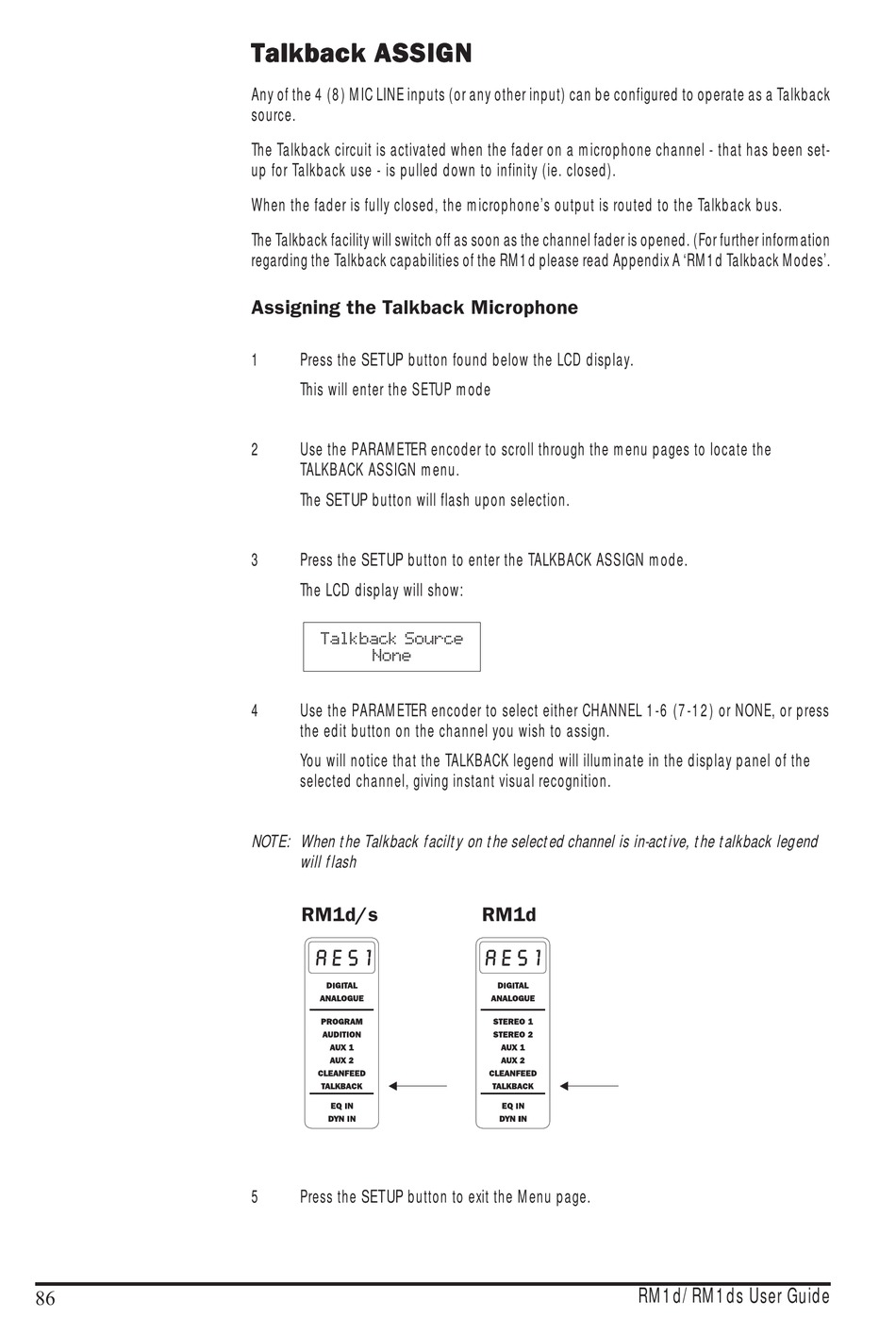

T T T T T alkback ASSIGN alkback ASSIGN alkback ASSIGN
alkback ASSIGN alkback ASSIGN
Any of the 4 (8) MIC LINE inputs (or any other input) can be configured to operate as a Talkback
source.
The Talkback circuit is activated when the fader on a microphone channel - that has been set-
up for Talkback use - is pulled down to infinity (ie. closed).
When the fader is fully closed, the microphone's output is routed to the Talkback bus.
The Talkback facility will switch off as soon as the channel fader is opened. (For further information
regarding the Talkback capabilities of the RM1d please read Appendix A 'RM1d Talkback Modes'.

Assigning the Talkback Microphone

1 Press the SETUP button found below the LCD display.
This will enter the SETUP mode
2 Use the PARAMETER encoder to scroll through the menu pages to locate the
TALKBACK ASSIGN menu.
The SETUP button will flash upon selection.
3 Press the SETUP button to enter the TALKBACK ASSIGN mode.
The LCD display will show:
4 Use the PARAMETER encoder to select either CHANNEL 1-6 (7-12) or NONE, or press
the edit button on the channel you wish to assign.
You will notice that the TALKBACK legend will illuminate in the display panel of the
selected channel, giving instant visual recognition.
NOTE: When the Talkback facilty on the selected channel is in-active, the talkback legend
will flash
RM1d/s
5 Press the SETUP button to exit the Menu page.
RM1d
RM1d/RM1ds User Guide
