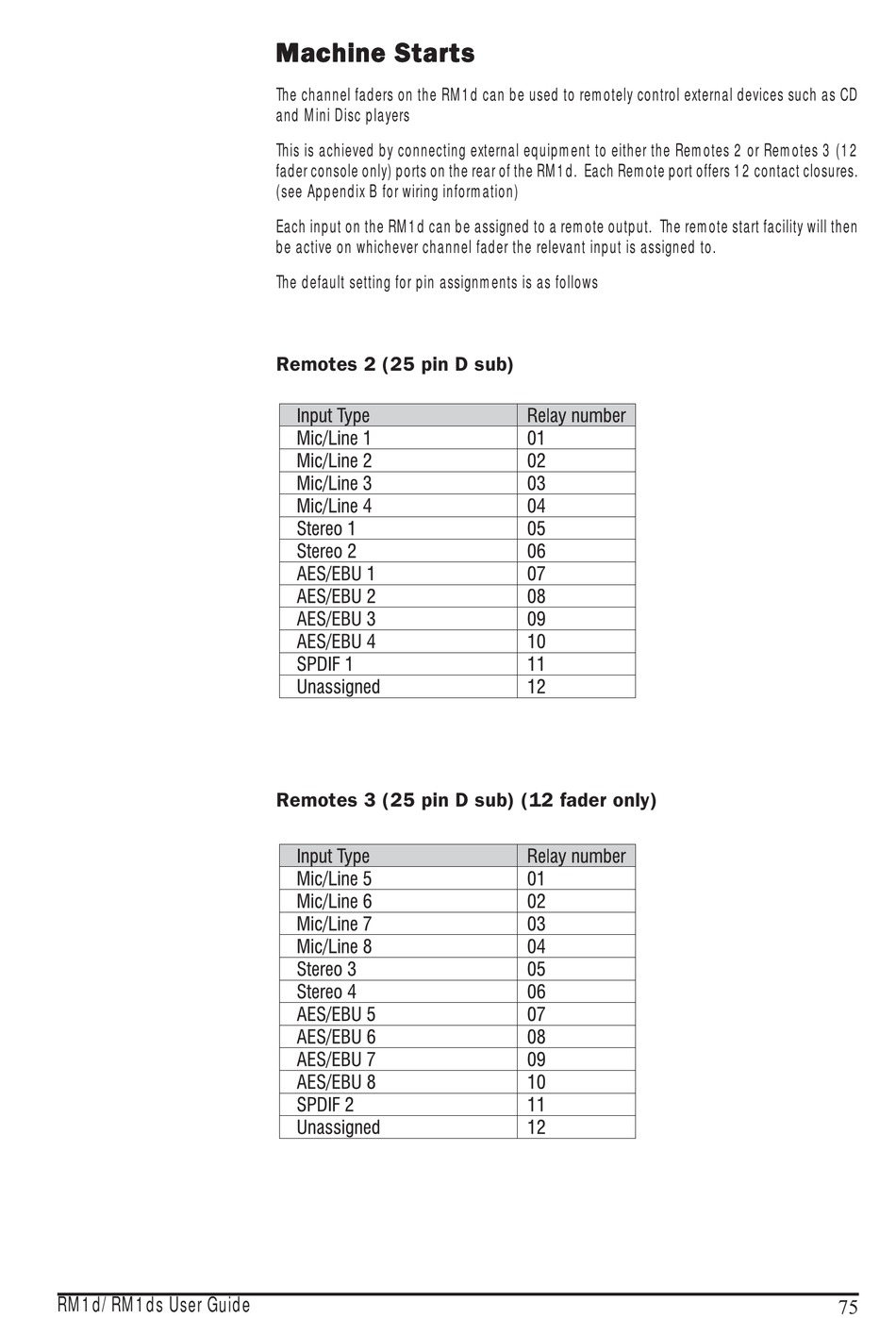

Machine Starts ts ts ts ts Machine Star Machine Star
Machine Star Machine Star
The channel faders on the RM1d can be used to remotely control external devices such as CD
and Mini Disc players
This is achieved by connecting external equipment to either the Remotes 2 or Remotes 3 (12
fader console only) ports on the rear of the RM1d. Each Remote port offers 12 contact closures.
(see Appendix B for wiring information)
Each input on the RM1d can be assigned to a remote output. The remote start facility will then
be active on whichever channel fader the relevant input is assigned to.
The default setting for pin assignments is as follows

Remotes 2 (25 pin D sub)

Remotes 3 (25 pin D sub) (12 fader only)
