Front Panel Leds - Dedicated Micros DV-IP Decoder Setup Manual

Data
COM 1 - 4
Dip switches for correct termination of COM3 and COM 4 for RS422 and
TERM 1- 5
RS485 serial data
9 way (male) D Type RS-232 (3 wire), RS-422, RS-485 serial port. Not
SER 1 - 5
currently used, available for future expansion
Dip switches for correct termination of SER 1 - 5 for RS422 and RS485 serial
TERM 1 - 10
data. Not currently used, available for future expansion
485 BUS 2x MMJ connector's. Not currently used, available for future expansion
NET RJ45 Ethernet network connector, 10/100BaseT auto-detecting.
Alarms and Relays
ALARMS IN 25 way (female) D Type. Not currently used, available for future expansion
AUX IN Screw terminal. Not currently used, available for future expansion
RELAYS 9 way (female) D Type. Not currently used, available for future expansion
R1 + R2 Screw terminal. Not currently used, available for future expansion

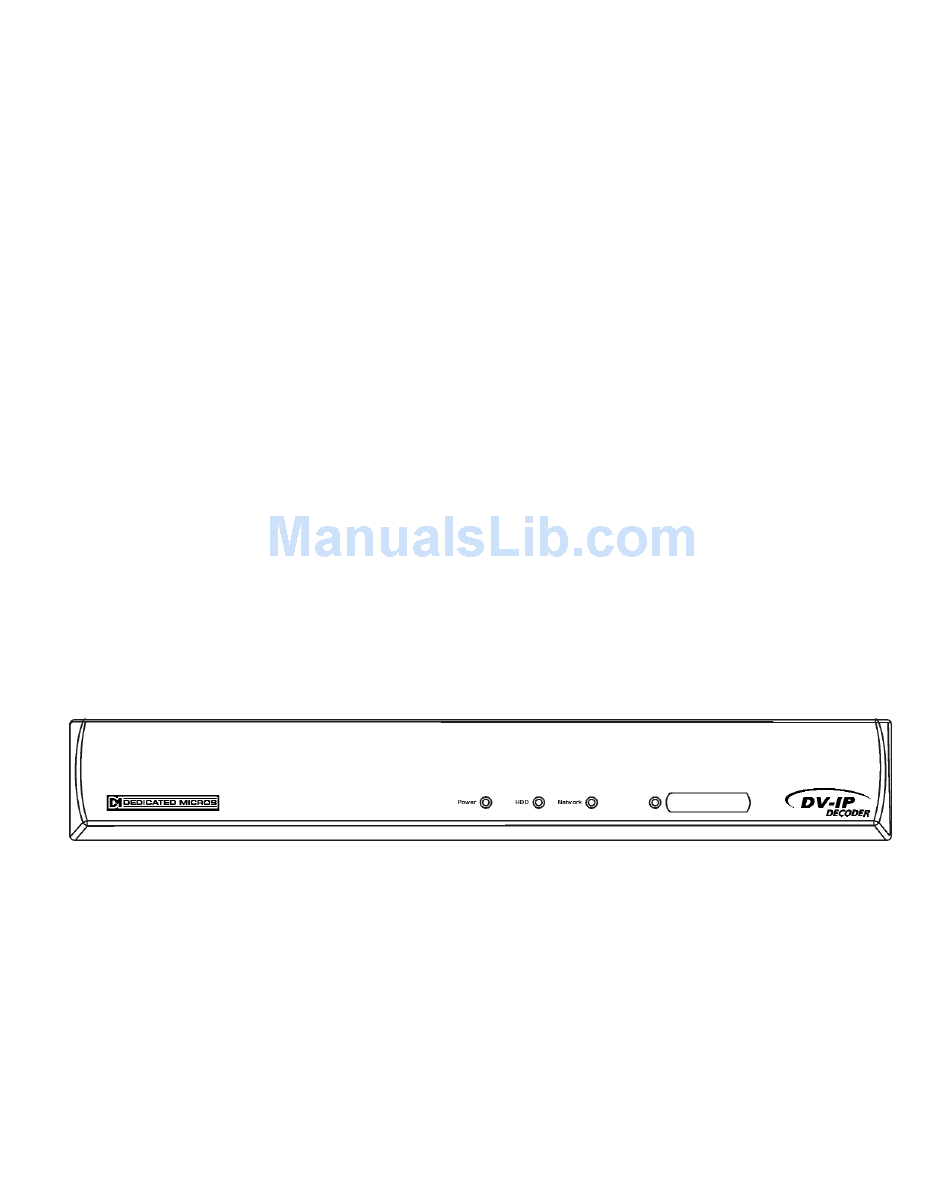

Front Panel LEDs

Power The power LED will be green to indicate power is connected to the Decoder
HDD Hard Disk Drive – this will flash when the unit is writing to flash
The Network LED will light when the unit is connected to the network, the LED
Network
will be off if there is no network connection
IR The Infra Red is not enabled on the unit and is for future development
This LED will glow orange to identify the unit as being a Decoder, this allows
Unmarked ease of recognistion when the unit is used in a system apoplication which
includes the DV-IP Decoder
Dedicated Micros
9 way (male) D Type RS-232 serial port (General purpose, debug)
Page 7
