Step 6 Connecting Power

To connect power to the DV-IP Decoder:

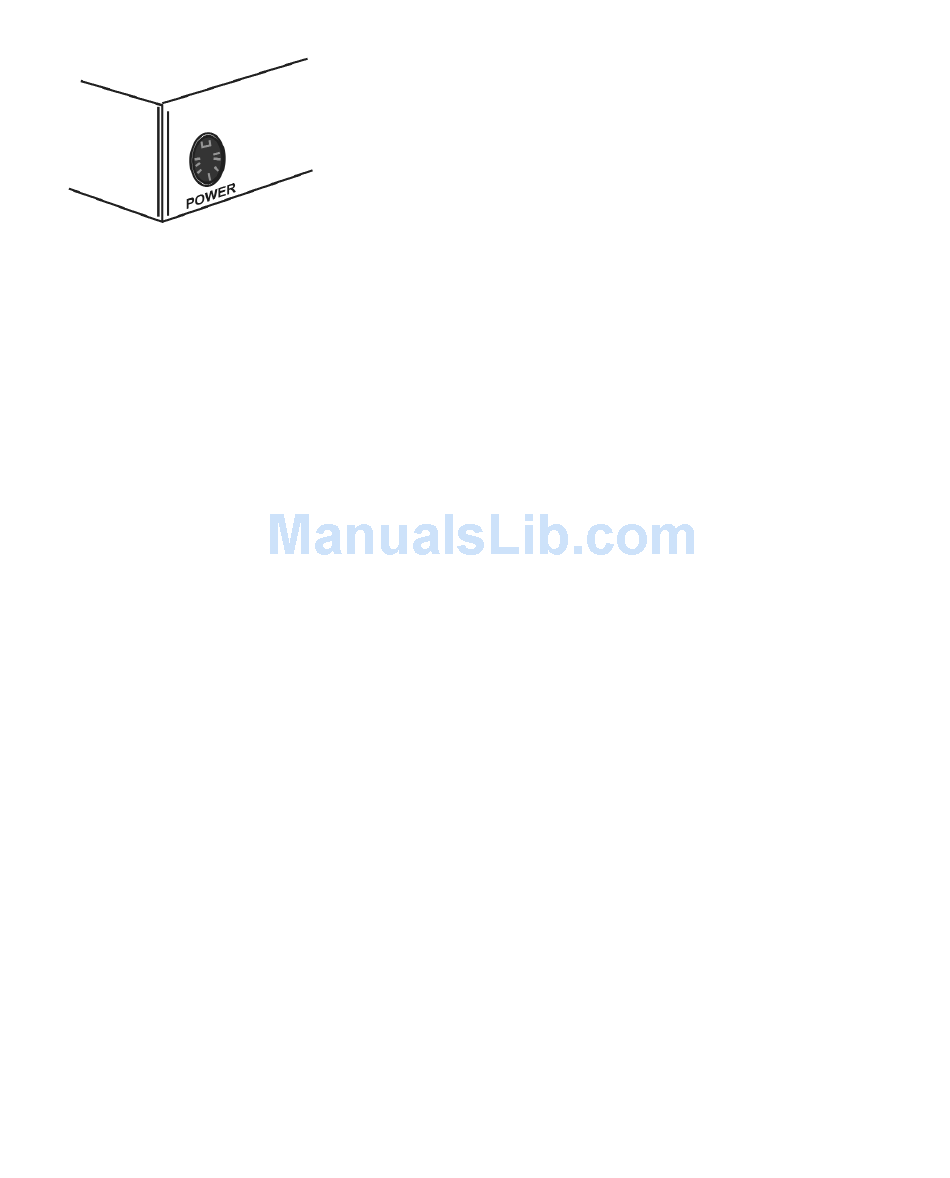

1. The mains connector on the DV-IP Decoder is an 8 pin DIN connector. To power up the unit:
2. Ensure the mains if switched off at the socket
3. Connect the power supply (supplied in the packing kit) to the POWER connector on the unit;
this is the 8 pin Din connector shown above
4. Connect the mains lead (supplied in the packing kit) to the power supply, the European lead
requires the relevant mains plug be attached to the lead, ensure you follow Health and Safety
procedures
5. Switch the mains on at the socket
6. Check the Green LED on the front panel of the DV-IP Decoder lights to show the unit has
powered up successfully.

Step 6a Allocating an IP Address

This section is separated into:
Setting a static IP address
Enabling DHCP
Setting a static IP address
The following describes how a preferred static IP address can be allocated and divided into:
static IP address
subnet mask
and if required default gateway
1. Ask your Network Administrator to complete the following with the information that will be
configured on the DV-IP Decoder.
Dedicated Micros
If there are no further installation requirements such as audio you
can connect power to the unit at this stage.
The DV-IP Decoder is configured for DHCP and will be
automatically allocated and IP Address if connected to a DHCP
network. If a static IP Address is required refer to Step 6a before
applying power.
Page 17
