8. Remember to save the configuration by selecting Save Settings!

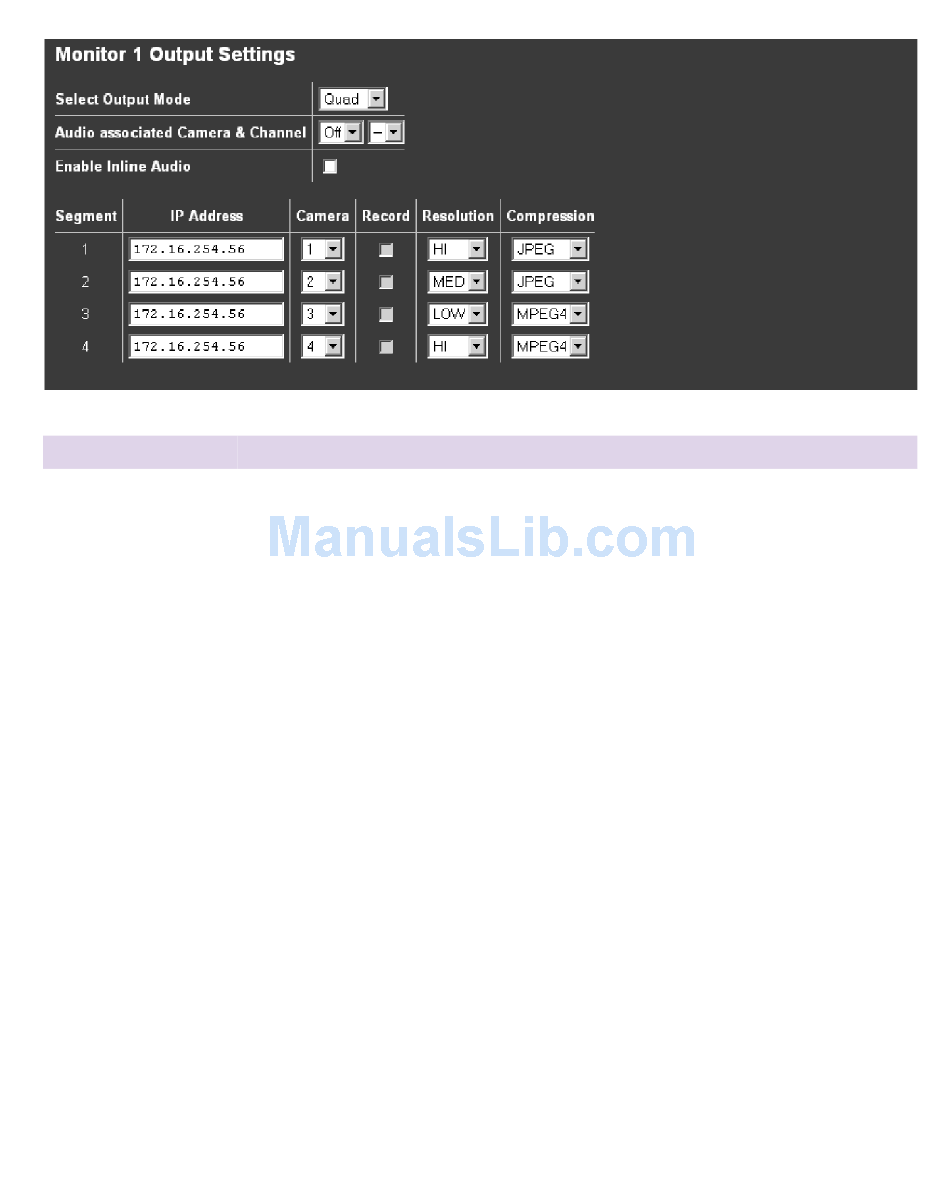

Function
Select Output
Mode
Audio associated
Camera & Channel
Enable Inline
Audio
Segment
IP Address
Camera
Dedicated Micros
Description
The DV-IP Decoder supports the option to display a single image or multiple simultaneous
images (up to four). The screen display options available are: Single and Quad
The audio link can be established between the DV-IP Decoder and a specific camera on
one of the selected NetVu Connected video servers, the audio channel on the DV-IP
Decoder can also be selected
It is possible to connect to an image server to establish an audio connection in Live or
Playback mode. The standard format for the audio link is UDP this is then transmitted
alongside the TCP video link.
Selecting inline audio will 'interleave' the audio with the video to create a single TCP
stream, this function is useful in applications where routers will not allow UDP traffic to be
transmitted across a network.
The DV-IP Decoder can display upto four cameras simultaneoulsy, this identifies the
segment on the screen where the associated camera will be displayed
This is the IP address of the NetVu Connected video server from which images will be
received by the Decoder
This identifies which camera input on the selected vide server will be displayed on the DV-
IP Decoder
