Installing the DV-IP Decoder

The Installation of the DV-IP Decoder can be carried out in simple steps as described in the
Quick Start Guide; this section will elaborate on this information and the connectivity required for
the Advanced features supported on the DV-IP Decoder.
In addition to detailing the physical connectivity this section also describes some aspects of
configuration that are required to be carried out at installation stage, these are all the serially
configured parameters of the Decoder.

DV-IP Decoder Connections and LEDs

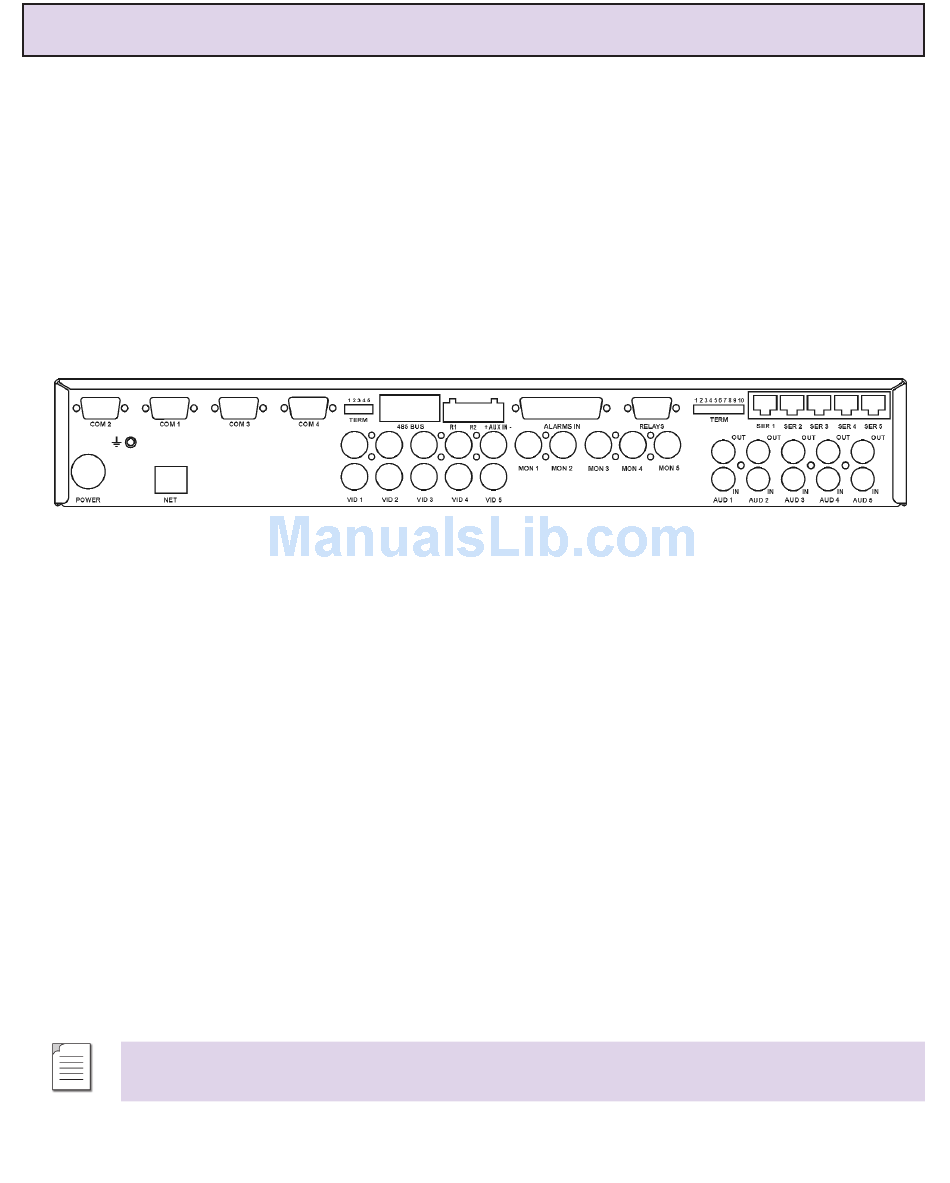

Rear Panel Connection

Power
POWER 8 Pin mini Din, external 12V PSU supplied with unit
Video
75Ohms BNC composite video input, 1V pk-pK. Not currently used, available
VID1 to VID5
for future expansion
Monitor Output
MON 1 - 5 75Ohms BNC composite monitor output, 1V pk-pK
Audio
Audio 1 - 5 IN
Audio 1 - 5 OUT
Important Note: Multi-channel audio is currently unavailable at the moment on the DV-IP Decoder
however Output Channel 1 is operational.
Page 6
RCA (phono) socket, 8 KHz sampling 47KOhms input impedance
RCA (phono) socket, line level - amplification required
