Step 4 Connecting Serial Devices

Communication Port
COM 1
COM 2
COM 3
COM 4
Each of the serial ports can be configured for port can be configured to support various
peripheral devices.

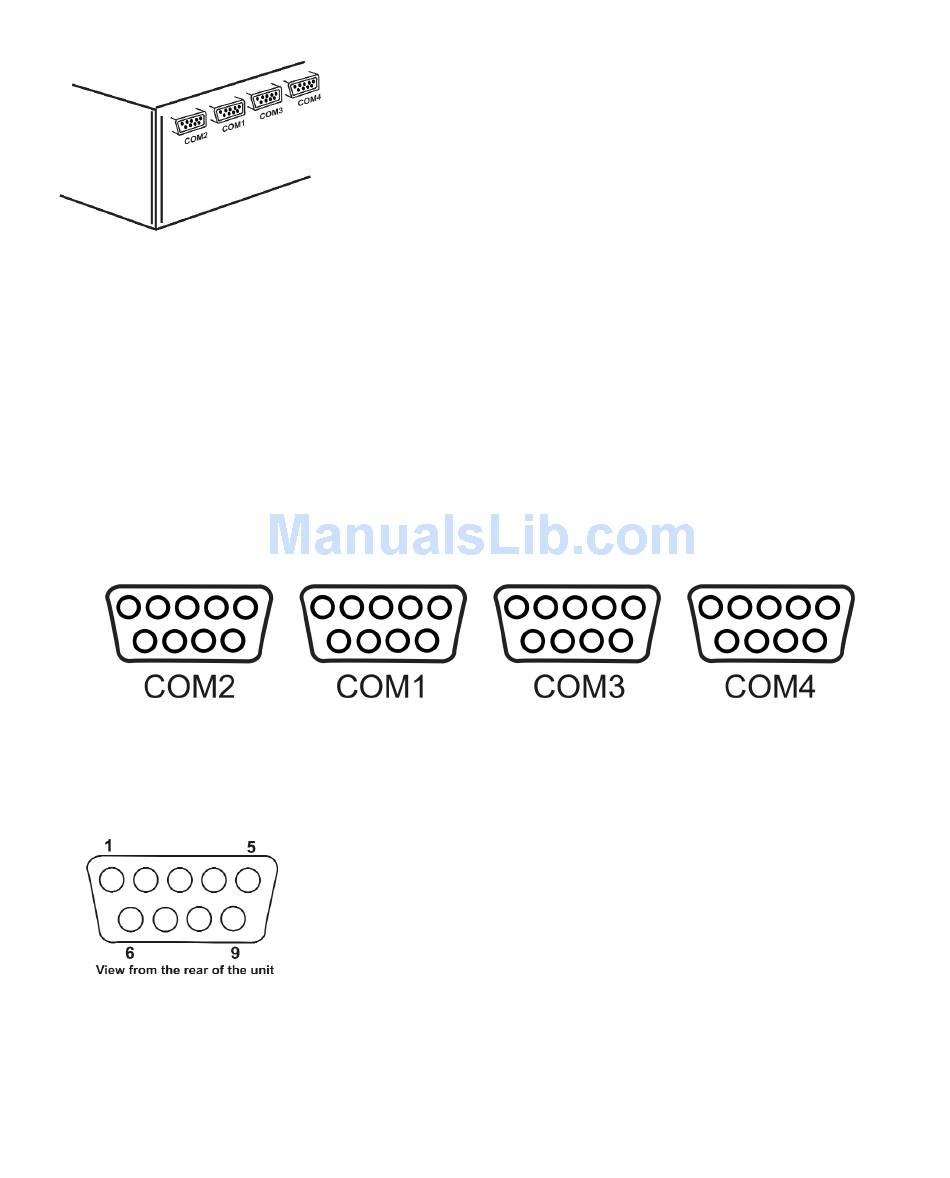

The COM port layout is as shown below, by default COM 1 is the only port enabled and is set
for Debug (Engineering mode) allowing you to connect and configure the unit.
Pin Layout
COM 1 and COM 2 are 9 Way D-type connector's support RS232 communication ports with the
following pin connections.
Page 14
The DV-IP Decoder supports four enabled serial ports. There are
two RS232 and two RS232/RS422/RS485 ports, these are as
follows:
Allocation
RS232
RS232
RS232/RS422/RS485
RS232/RS422/RS485
