- Page 1 USE AND MAINTENANCE MANUAL VISPA 35E ED. 09-2010 ORIGINAL INSTRUCTIONS Doc. 10003872 Ver.
- Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or the supply of accessories, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
-
Page 3: Table Of Contents
CONTENTS ON CONSIGNMENT OF THE MACHINE .................................. 4 SERIAL NUMBER PLATE ...................................... 4 INTRODUCTION ........................................4 INTENDED USE........................................4 TECHNICAL DESCRIPTION ....................................5 SYMBOLS USED ON THE MACHINE..................................6 GENERAL SAFETY REGULATIONS..................................7 MACHINE PREPARATION ..................................... 8 1. HANDLING THE PACKAGED MACHINE............................8 2. -
Page 4: On Consignment Of The Machine

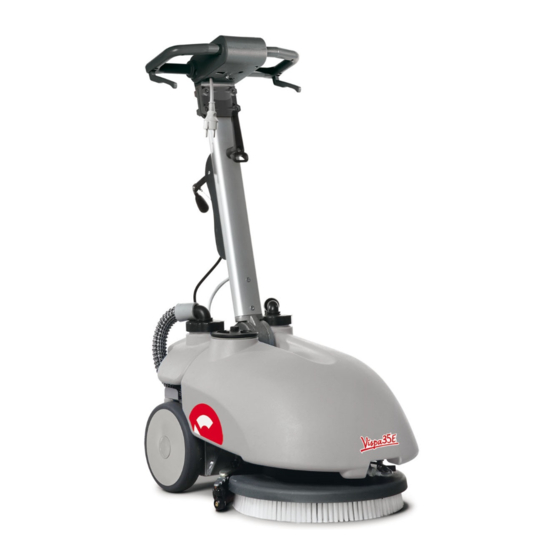

Introduction VISPA 35E is a floor scrubbing machine which, by means of the mechanical action of the rotating brush and the chemical action of a water/detergent solution, can clean any type of flooring. As it advances, it also collects any removed dirt as well as the detergent solution not absorbed by the floor. -
Page 5: Technical Description
TECHNICAL DESCRIPTION Vispa 35E Rated power Working width Width of rear squeegee Work capacity 1050 Water consumption ∅ mm Brushes (diameter or length) Brush rotations Pressure on the brushes 17.7 Brush motor – Rated voltage V/Hz 230/50 Brush motor – Max. absorbed power Type of advance semi-aut. -
Page 6: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Tap symbol Used to indicate the solenoid valve switch Voltage symbol Warning high voltage 110-220 Volt Symbol denoting suction motor Used to indicate the suction motor switch Indicates the maximum temperature of the detergent solution Located near the solution tank inlet Indicates the earth connection point of the electric system of the machine Indicates the maximum gradient... -
Page 7: General Safety Regulations
• When your COMAC machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, and bearing in mind that the machine itself was constructed using 100% recyclable materials. -
Page 8: Machine Preparation
Vispa 35E is easy to transport even by car. Exploiting the full flexibility of the handlebars, you can fold it up (see the handlebars fixing section) and, with the help of a colleague, place it in the boot of the car without disassembling any components. -
Page 9: Instrument Panel Components
MACHINE PREPARATION 5. INSTRUMENT PANEL COMPONENTS The instrument panel components are identified as follows: 1. Main switch (1) 2. Suction switch (2) 3. Solenoid valve switch (3) 6. FIXING THE HANDLEBARS For packaging purposes the handlebars are supplied folded; they must now be put in the working position. -
Page 10: Recovery Tank
MACHINE PREPARATION ATTENTION: Acid or alkaline detergents can be used with pH values between 4 and 10 and that do not contain: oxidising agents, chlorine or bromine, formaldehyde, mineral solvents. ATTENTION: always use detergents whose manufacturer's label indicates their suitability for scrubbing machines. Do not use acid or alkaline products or solvents without this indication. -
Page 11: Work
WORK 1. PREPARING TO WORK Certain operations must be carried out before starting any work: 4. Verify that the tanks are properly inserted in the housings and connected. 5. verify that the switches are in the off (“0”) position 6. connect the cable to the socket ATTENTION: Verify that the electricity socket has a protective conductor (or an earth conductor). -
Page 12: Forward Movements
WORK 3. FORWARD MOVEMENTS The traction of these machines is obtained by means of the brush which, by working slightly inclined, is able to drag the machine forwards. WARNING: Ensure that the moving brush never comes into contact with the power supply cable. WARNING: when making even brief reverse movements, verify that the squeegee is raised. -
Page 13: At The End Of The Work
AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. Turn off the solenoid valve switch (3) 2. Raise the squeegee by means of the rear handle (4) 3. -
Page 14: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 1. CLEANING THE RECOVERY TANK 1. Make sure that the power cable of the machine is unplugged from the mains socket 2. Remove the tubes attached to the connectors of the recovery tank caps. 3. -
Page 15: Cleaning The Squeegee
DAILY MAINTENANCE 2. CLEANING THE SQUEEGEE Check the squeegee rubbers are always clean, for a better drying action. To clean them you must: 1. raise the machine 2. carefully clean inside 3. carefully clean the squeegee rubbers ATTENTION: this operation must be carried out by wearing gloves in order to protect against contact with dangerous solutions. -
Page 16: Disassembling The Brush
DAILY MAINTENANCE 4. DISASSEMBLING THE BRUSH 1. Raise the squeegee 2. Raise the machine by using the handlebars as a lever and position it with the recovery tank on the ground. 3. With the base raised, remove the brush manually by rotating it clockwise. WARNING: during this operation, verify that there are no people or objects near the brush. -
Page 17: Periodic Maintenance
PERIODIC MAINTENANCE 1. CLEANING THE SQUEEGEE TUBE Periodically, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed. To clean it, proceed as follows: 1. Make sure that the power cable of the machine is unplugged from the mains socket 2. -
Page 18: Troubleshooting
The machine is fitted with a thermal trip unit with manual reset. The brush motor is reset by resetting the thermal trip unit located beneath the handlebars. If the machine stops repeatedly in a short space of time, you must contact the Comac technical assistance centre. -
Page 19: Choosing And Using The Brushes
TABLE FOR CHOOSING THE BRUSHES Machine No. of Code Type of bristles ∅ Bristles ∅ Brush Notes brushes 421701 422213 Pad holder – anchor VISPA 35E 422001 Pad holder – bristles SUGGESTED POWER CABLE EXTENSION CAST SCHUKO PLUG CAST SCHUKO PLUG... -
Page 20: Machine Disposal
MACHINE DISPOSAL To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with the currently effective environmental hygiene regulations: •... -
Page 21: Ec Declaration Of Conformity
The undersigned company: COMAC S.p.A. Via Maestri del Lavoro n.13 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the FLOOR SCRUBBING MACHINE mod. VISPA 35E complies with the requirements of the following Directives: • 2006/42/EC: Machinery Directive •...
