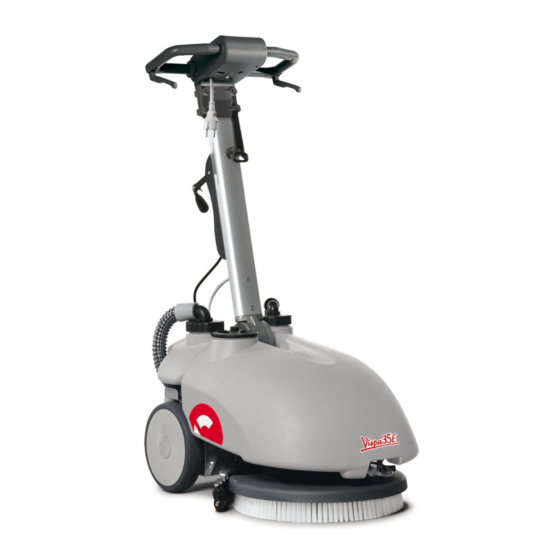

MANUAL USE AND MAINTENANCE
VISPA 35E
ED. 10-2008
IDoc.
10003872
Ver.
AA
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISPA 35E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COMAC VISPA 35E

Summary of Contents for COMAC VISPA 35E

  • Page 1 MANUAL USE AND MAINTENANCE VISPA 35E ED. 10-2008 IDoc. 10003872 Ver.
  • Page 2 The contained descriptions in the present publication are not binding. The company therefore reserves itself the right to bring in whatever moment possible organs changes, details or supplies of accessories, that it holds convenient for an improvement, or for any demand of constructive or commercial character.

  • Page 3: Table Of Contents

    CONTENTS ON CONSIGNMENT OF THE MACHINE................................... 4 SERIAL NUMBER PLATE ....................................... 4 INTRODUCTORY COMMENT....................................4 TECHNICAL DESCRIPTION ....................................5 SYMBOLS USED ON THE MACHINE ..................................6 GENERAL SAFETY REGULATIONS ..................................7 MACHINE PREPARATION ...................................... 8 1. HANDLING THE PACKED MACHINE ................................8 2.

  • Page 4: On Consignment Of The Machine

    On consignment of the machine Serial number plate When the machine is consigned to the customer, an immediate check Disconnect the tubes before removing the must be performed to ensure all the material mentioned in the shipping recovery tank to see the serial number plate. documents has been received, and also to check the machine has not suffered damage during transportation.

  • Page 5: Technical Description

    TECHNICAL DESCRIPTION Vispa 35E Rated power Working width Width of rear squeegee Work capacity 1050 Water consumption Brushes (diameter or length) Brush rotations Pressure on the brushes 17.7 Brush motor V / W 230 / 250 Type of advance semi-aut.

  • Page 6: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Tap symbol Used to indicate the solenoid valve switch Voltage symbol Used to indicate the machine's voltage switch Symbol denoting suction motor Used to indicate the suction motor switch Indicates the maximum temperature of the detergent solution Located near the solution tank inlet...

  • Page 7: General Safety Regulations

    When disposing of consumption materials, observe the laws and regulations in force When your COMAC machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, and bearing in mind that the machine itself was constructed using 100% recyclable materials.

  • Page 8: Machine Preparation

    2. Take the machine out of its packaging. 3. HANDLING AND TRANSPORTATION OF THE UNPACKED MACHINE Vispa 35E is a machine that can be managed in all situations and transported without effort, even in small vehicles. Just lift the front part, using the machine handlebars as a lever. The big rear wheels mean it can be towed anywhere and loaded on a truck by means of a simple ramp.

  • Page 9: Connecting The Machine

    MACHINE PREPARATION 4. CONNECTING THE MACHINE For the connection, you must: 1. connect the extension lead to the plug on the handlebars 2. block the extension lead to the cable-holder handle in front of the handlebars 3. connect the extension lead to the wall socket ATTENTION: before connecting the extension lead to the socket, check the switches are in the off (“0”) position! 5.

  • Page 10: Recovery Tank

    MACHINE PREPARATION 7. RECOVERY TANK Check the recovery tank is correctly inserted in its housing, and that the tubes are correctly inserted in the tank elbows. Check the caps are correctly closed. 8. SOLUTION TANK Check the cap is correctly inserted in its housing, and that the vent pin is lowered (A). Check the valve is correctly engaged (B).

  • Page 11: Work

    WORK 1. PREPARING TO WORK Before fitting the tanks, it is necessary to carry out certain operations: 1. check the switches are in the off (“0”) position 2. connect the cable to the socket 3. carry out the operations to prepare the machine 4.

  • Page 12: Forward Movements

    WORK 3. FORWARD MOVEMENTS The traction of these machines is obtained by means of the brush which, working slightly inclined, is able to drag the machine forwards. ATTENTION: when making even brief reverse movements, check the squeegee is raised.

  • Page 13: At The End Of The Work

    AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. Turn off the solenoid valve switch (3) 2. Raise the squeegee by means of the rear handle (4) 3.

  • Page 14: Daily Maintenance

    DAILY MAINTENANCE ATTENTION: Disconnect the power cable from the mains socket before carrying out any maintenance operations. CLEANING THE RECOVERY TANK Remove the tubes attached to the connectors of the recovery tank caps. Remove the recovery tank. ATTENTION: this operation must be carried out using gloves to protect against contact with dangerous solutions.

  • Page 15: Replacing The Squeegee Rubbers

    DAILY MAINTENANCE 3. REPLACING THE SQUEEGEE RUBBERS Check the state of wear and tear of the squeegee rubbers and, if necessary, replace them. To replace them you must: 1. Raise the squeegee 2. Remove the two knobs 3. Disassemble the squeegee from its support 4.

  • Page 16: Periodic Maintenance

    PERIODIC MAINTENANCE 1. CLEANING THE SQUEEGEE TUBE Periodically, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed. To clean it, proceed as follows: 1. remove the tube from the sleeve on the squeegee 2. remove the other end from the recovery tank 3.

  • Page 17: Troubleshooting

    The machine is fitted with a thermal trip unit with manual reset. The brush motor is reset by resetting the thermal trip unit located beneath the handlebars. If the machine stops repeatedly in a short space of time, you must contact the Comac technical assistance centre.

  • Page 18: Choosing And Using The Brushes

    CHOOSING AND USING THE BRUSHES POLYPROPYLENE BRUSH (PPL) Used on all types of floors. Good resistance to wear and tear, and hot water (no greater than 60°C). The Polypropylene brush is non-hygroscopic and therefore retains its characteristics even when working in wet conditions. PAD HOLDER The pad holder is recommended for cleaning shiny surfaces.

  • Page 19: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY The undersigned company: COMAC S.p.A. Via Ca’ Nova Zampieri no. 5 37057 San Giovanni Lupatoto (VR), Italy declares under its sole responsibility that the FLOOR SCRUBBER-DRYER mod. VISPA 35 E complies with the requirements of the following Directives: •...
  • Page 20 COMAC spa Via Cà Nova Zampieri, 5 – 37057 San Giovanni Lupatoto – Verona – ITALY Tel. +39 045 8774222 – Fax +39 045 8750303 – E-mail: com@comac.it o info@comac.it - www.comac.it...
