REPLACE AND DELETE THE DOCUMENT RC2300 REV 06 OF 10/2005-SS, ISSUED 06/1999-GG
READ THE USE AND MAINTENANCE HANDBOOK
Inspection of the electrical layout
1. Check the functions of the electrical layout: switches, motors,
solenoid valve.
2. Check the
control functions and the coupling and
uncoupling of the
3. Control
the
operation
(Machine with traction).
4. If necessary adjust the chopper-card as
follows:
• Lift the machine (Traction wheels without
contact to the floor)
• Open the handlebar unscrewing the four
underlying screws
• Fix the clamps of the tester (V-DC) to the
connections
M+
and
• Switch on the main key
• Insert
the
forward
Microswitch snaps (first speed)
• The tester should indicate 9-10V. If
necessary adjust the
speed), so that the above mentioned voltage
is obtained
• Activate the forward gear completely, so that
the 2° microswitch snaps. The tester must
indicate
24V
(max.
control the voltage of the battery and control
the cables.
• Acceleration adjustment: Set the
"L"
(ACC), so that its position is turned
clockwise about 30°/45° to the central
position. With this adjustment you obtain the
desired voltage (9-10V or 24V) in about 4
seconds.
• Check the function reverse gear
• Check motor braking (after release of the
handle bar the machine should stop in about
1 meter).
ADJUSTMENTS
AND
INSPECTIONS
brushes.
of
the
chopper
M-
of the chopper-card
gear
until
the
trimmer "I"
(first
battery);
Otherwise
trimmer

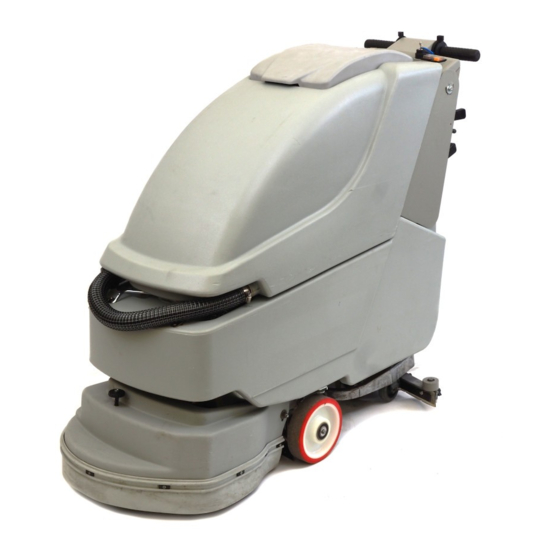

SIMPLA 45-50
1°
Doc.
10001244
Em.
04/2007
Rev.
00
Pag.
1 di 6
Advertisement
Table of Contents
Related Manuals for COMAC SIMPLA 45
Summary of Contents for COMAC SIMPLA 45
- Page 1 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 1 di 6 REPLACE AND DELETE THE DOCUMENT RC2300 REV 06 OF 10/2005-SS, ISSUED 06/1999-GG READ THE USE AND MAINTENANCE HANDBOOK Inspection of the electrical layout 1. Check the functions of the electrical layout: switches, motors, solenoid valve.
- Page 2 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 2 di 6 Adjustment battery check card 1. Check-up the right set-up of the battery check card. The adjustment can be performed by microswitches. 2. The possibles configurations are the following:...
- Page 3 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 3 di 6 Inspection waterworks 4. Check the cleanness and the positioning of the solution tank filter. 5. Fill the solution tank completely with water. 6. Check the tightness of the hoses, solenoid valve regulation of the cock.
- Page 4 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 4 di 6 1. Adjustment spring belt tightener to a compression length of 27mm. 2. Adjustment inclination: Let down the brushes and adjust the distance of the screw M8 to the brush base about 1mm.
- Page 5 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 5 di 6 1. Adjustment hand brake: Verify if the lever does not snap more than 3-4 times. If necessary restore the right execution register the nut on the brake cable.
- Page 6 Doc. 10001244 ADJUSTMENTS 04/2007 SIMPLA 45-50 Rev. INSPECTIONS Pag. 6 di 6 Functional inspection of the machine Check the funtionality of switches and lamps; Check the brush assembly funtionality; Check the funtionality of brush motor; Check the funtionality of the squeegee;...
