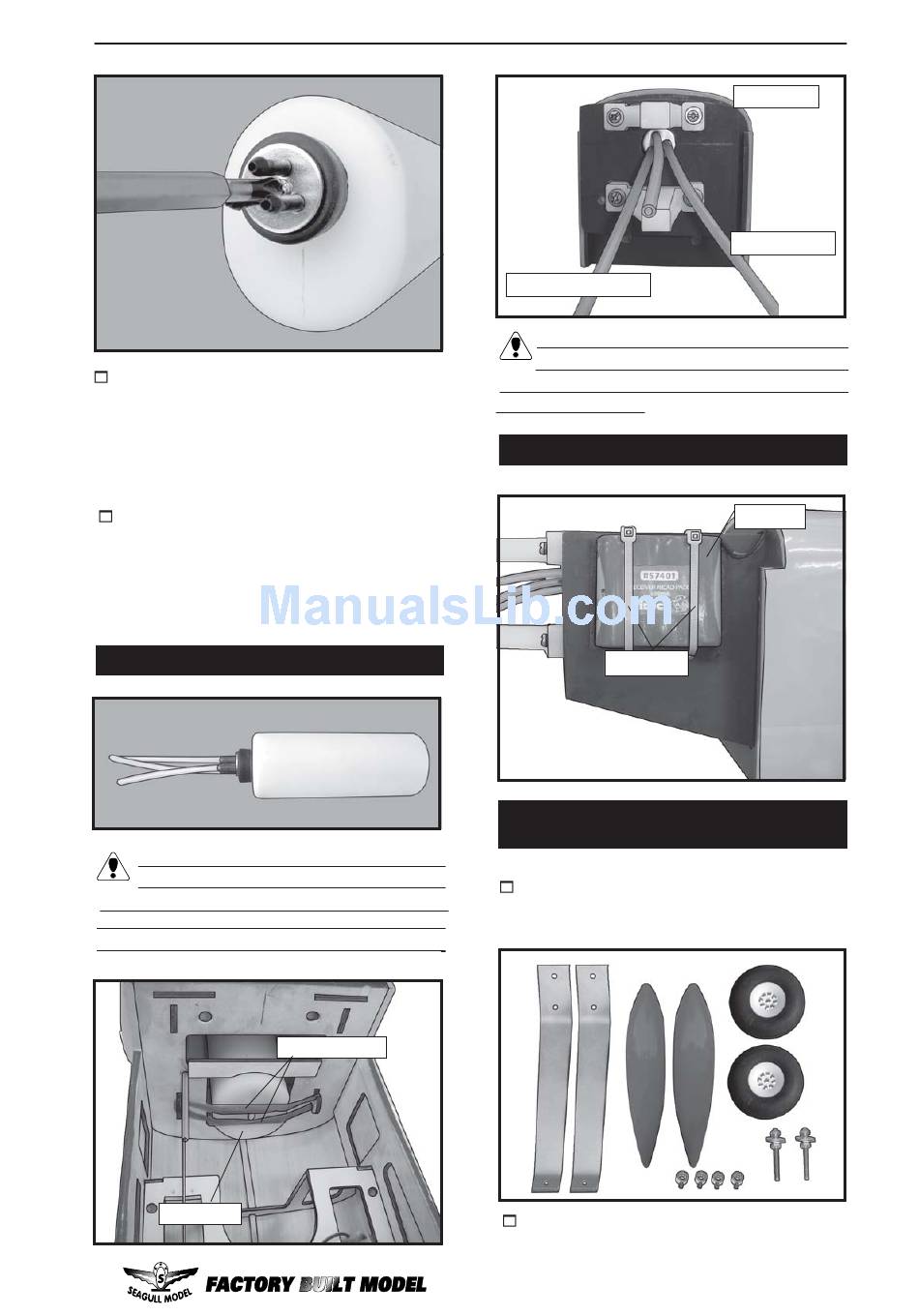

5) With the stopper assembly in place,
the weighted pick-up should rest away from
the rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.

FUEL TANK INSTALLATION.

You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
Fuel tank.
www.seagullmodels.com
Rubber band.
Fuel pick-up tube.
Blow through one of the lines to ensure
the fuel lines have not become kinked in-
side the fuel tank compartment. Air should
flow through easily.

INSTALLING THE BATTERY.

Tie Wrap.
WHEEL AND WHEEL PANTS
INSTALLATION.
1) Assemble and mounting the wheel pants
as shown in the following pictures.
2) Follow diagram below for wheel pant
installation:
Vent tube.
Fuel fill tube.
Battery.
7
