Engine Mount Installation; Installing The Stopper Assembly - Seagull Models CAP 232 Assembly Manual

CAP 232.

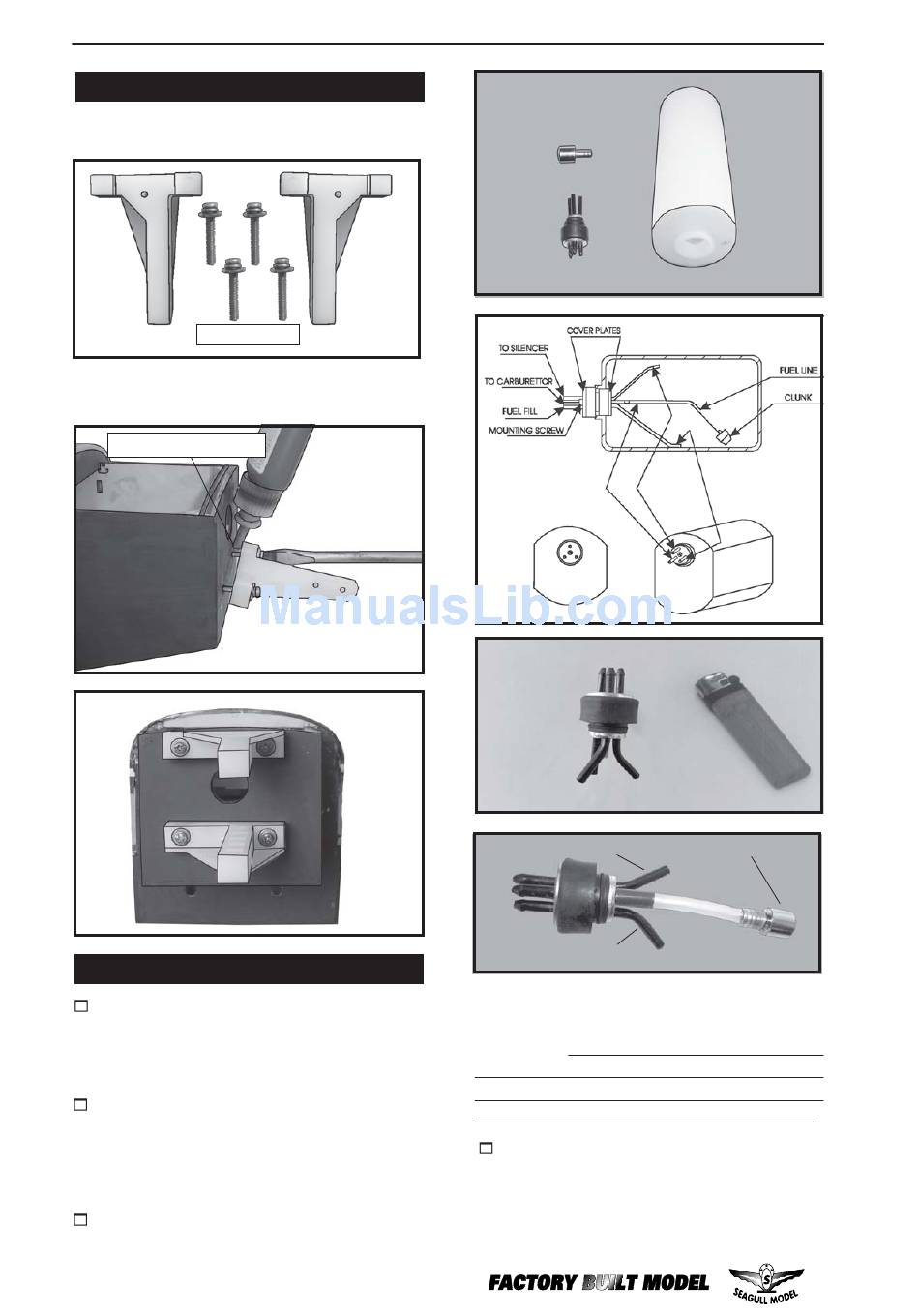

ENGINE MOUNT INSTALLATION.

See pictures below.Make yourself the
template of your engine on paper.
M4 x 30mm.
Mark and drill 4 holes for engine mount.
Insert 4 blind nuts to firewall.
Thread locker glue.

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.(The silicon tube is
not included).
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
6
Instruction Manual
Vent tube.
Fuel fill tube.
Carefully use a lighter or heat gun to
permenently set the angle of the vent tube.
Important: When the stopper assembly is in-
stalled in the tank, the top of the vent tube
should rest just below the top surface of the
tank. It should not touch the top of the tank.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
Fuel pick up tube.
