Ptt Motor Assembly - Suzuki DF 90 Service Manual

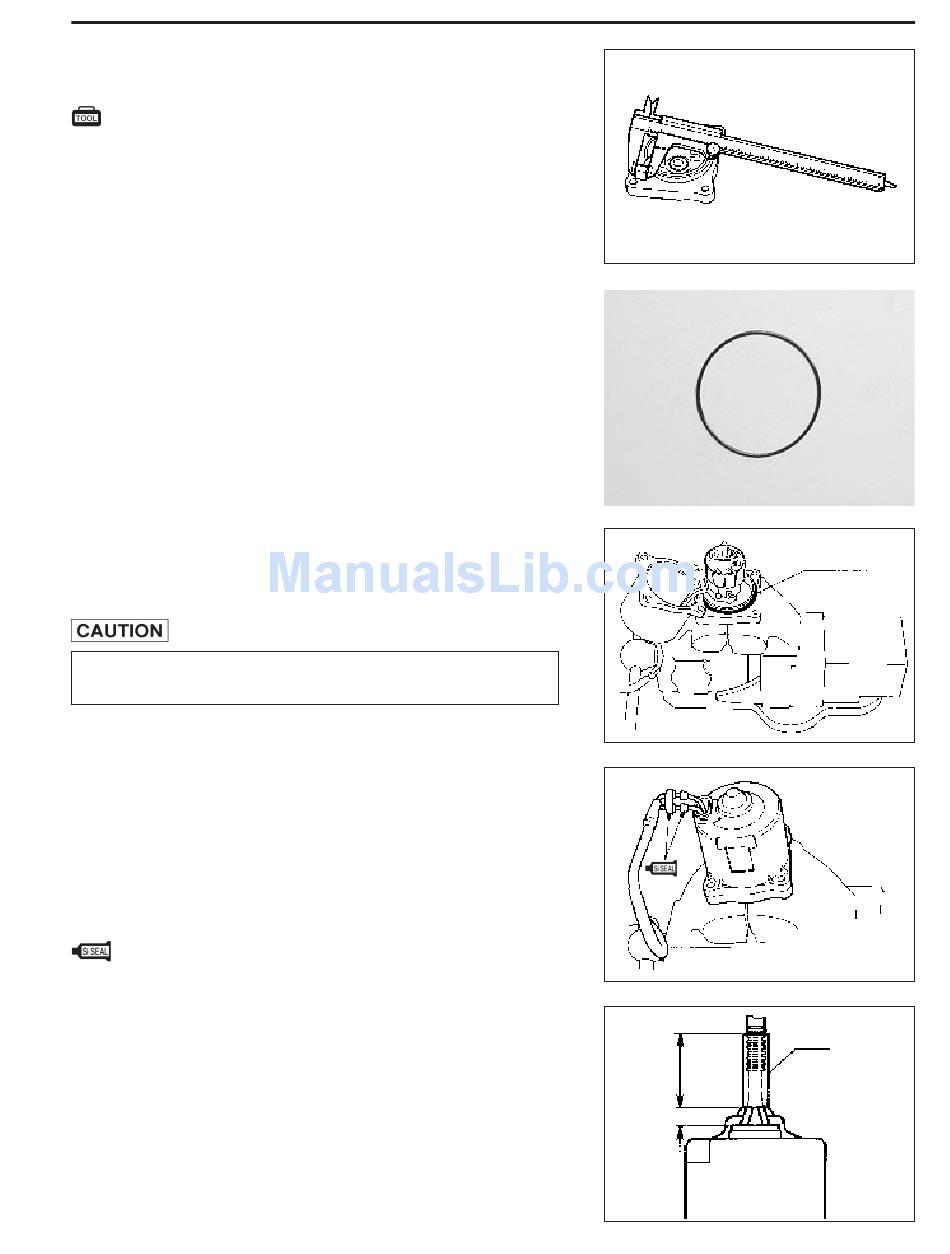

Brushes
Measure length of each brush.
09900-20101 : Vernier calipers
Brush length :
Standard
Service limit
If measurement exceeds service limit, replaced brush.
O-ring
Inspect O-ring between PTT motor and PTT pump case for cuts,
nicks or tears.

PTT MOTOR ASSEMBLY

Assembly is reverse order of disassembly with special atten-
tion to the following steps.
1. Install armature to brush holder first.
When installing armature, exercise care to avoid break-
ing brushes.
2. Match up previously scribed alignment marks.
3. When assembling field case to brush holder, proceed by
pulling PTT motor cables out of field case.
4. Apply Silicone Seal to PTT motor cable holder and grom-
mets, then install cable holder screw.
99000-31120 : Suzuki Silicone Seal
5. Fix cable protector tube to PTT motor cables with heat-re-
sisting tape.
: 9.8 mm (0.39 in.)
: 5.5 mm (0.22 in.)
POWER TRIM AND TILT
40 mm
(1.6 in)
10 mm
(0.4 in)
8-13
O-ring
Tape
