System Wiring Diagram - Suzuki DF 90 Service Manual

8-2 POWER TRIM AND TILT

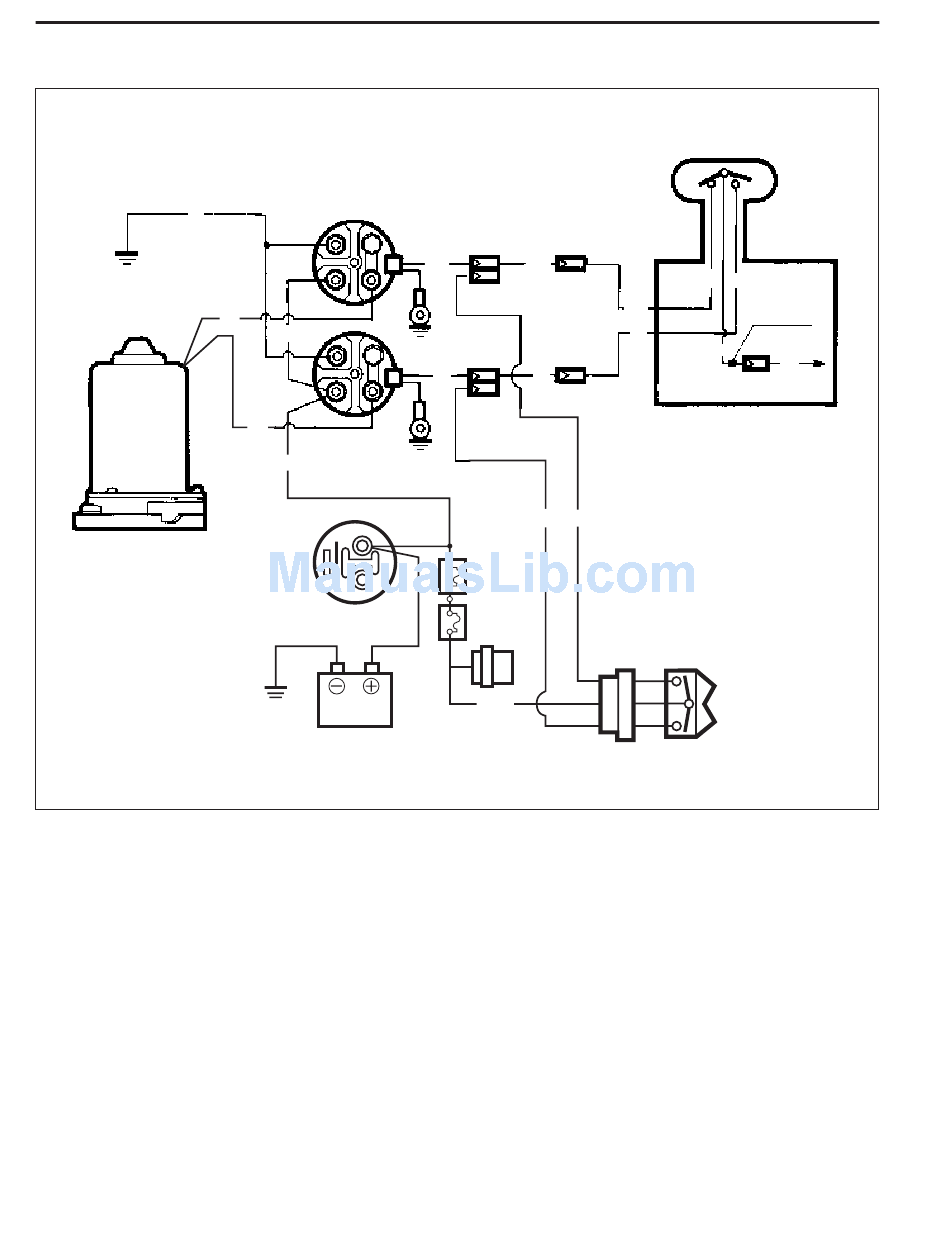

SYSTEM WIRING DIAGRAM

B
PTT motor
PTT motor relay (UP)
Bl
W
G
PTT motor relay
(DOWN)
R
Starter motor
magnetic switch
Battery
Lbl
Lbl
P
P
Lbl
P
Fuse 60A
Fuse 30A
Main relay
W/R
PTT switch
Lbl
P
Lbl
W tube
P
Gr
Gr
To ignition switch
Remote control box
UP
PTT switch
DN
