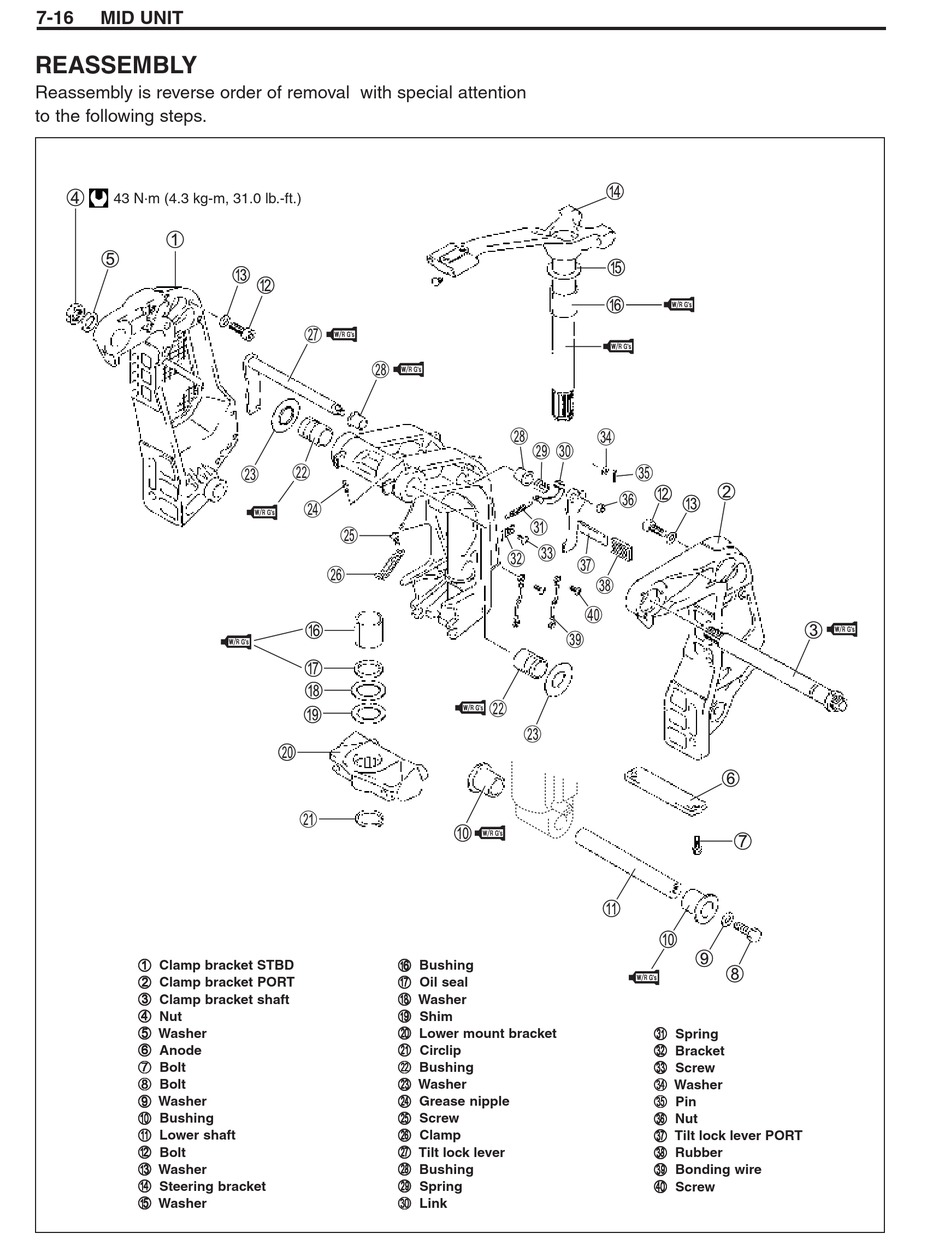

7-16 MID UNIT

REASSEMBLY

Reassembly is reverse order of removal with special attention
to the following steps.
43 N . m (4.3 kg-m, 31.0 lb.-ft.)
1 1 1 1 1 Clamp bracket STBD
2 2 2 2 2 Clamp bracket PORT
3 3 3 3 3 Clamp bracket shaft
4 4 4 4 4 Nut
5 5 5 5 5 Washer
6 6 6 6 6 Anode
7 7 7 7 7 Bolt
8 8 8 8 8 Bolt
9 9 9 9 9 Washer
0 0 0 0 0 Bushing
A A A A A Lower shaft
B B B B B Bolt
C C C C C Washer
D D D D D Steering bracket
E E E E E Washer
F F F F F Bushing
G G G G G Oil seal
H H H H H Washer
I I I I I Shim
J J J J J Lower mount bracket
K K K K K Circlip
L L L L L Bushing
M M M M M Washer
N N N N N Grease nipple
O O O O O Screw
P P P P P Clamp
Q Q Q Q Q Tilt lock lever
R R R R R Bushing
S S S S S Spring
T T T T T Link
U U U U U Spring
V V V V V Bracket
W W W W W Screw
X X X X X Washer
Y Y Y Y Y Pin
Z Z Z Z Z Nut
[ [ [ [ [ Tilt lock lever PORT
\ \ \ \ \ Rubber
] ] ] ] ] Bonding wire
^ ^ ^ ^ ^ Screw
