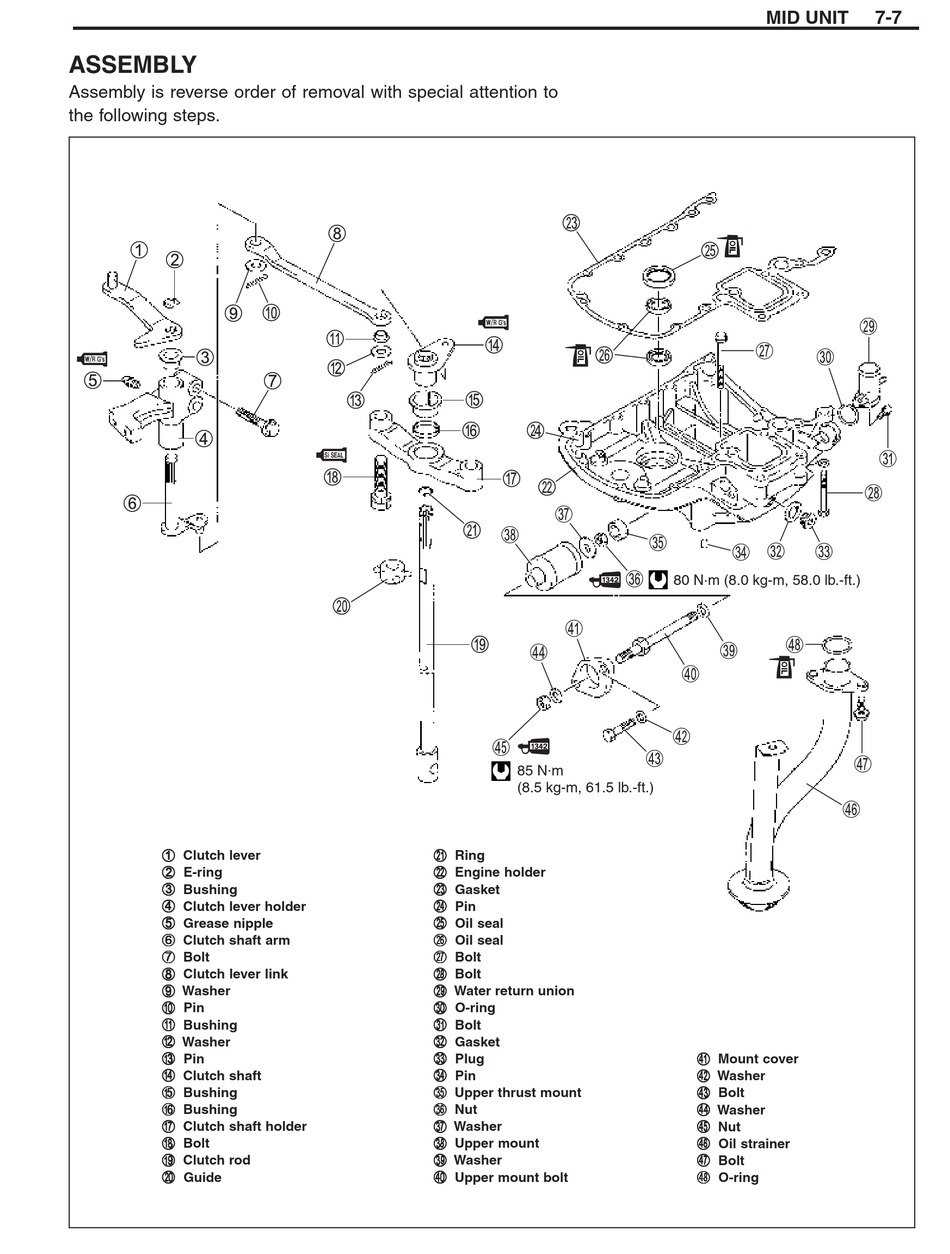

ASSEMBLY

Assembly is reverse order of removal with special attention to
the following steps.
1 1 1 1 1 Clutch lever
2 2 2 2 2 E-ring
3 3 3 3 3 Bushing
4 4 4 4 4 Clutch lever holder
5 5 5 5 5 Grease nipple
6 6 6 6 6 Clutch shaft arm
7 7 7 7 7 Bolt
8 8 8 8 8 Clutch lever link
9 9 9 9 9 Washer
0 0 0 0 0 Pin
A A A A A Bushing
B B B B B Washer
C C C C C Pin
D D D D D Clutch shaft
E E E E E Bushing
F F F F F Bushing
G G G G G Clutch shaft holder
H H H H H Bolt
I I I I I Clutch rod
J J J J J Guide
85 N . m
(8.5 kg-m, 61.5 lb.-ft.)
K K K K K Ring
L L L L L Engine holder
M M M M M Gasket
N N N N N Pin
O O O O O Oil seal
P P P P P Oil seal
Q Q Q Q Q Bolt
R R R R R Bolt
S S S S S Water return union
T T T T T O-ring
U U U U U Bolt
V V V V V Gasket
W W W W W Plug
X X X X X Pin
Y Y Y Y Y Upper thrust mount
Z Z Z Z Z Nut
[ [ [ [ [ Washer
\ \ \ \ \ Upper mount
] ] ] ] ] Washer
^ ^ ^ ^ ^ Upper mount bolt
MID UNIT
80 N . m (8.0 kg-m, 58.0 lb.-ft.)
a a a a a Mount cover
b b b b b Washer
c c c c c Bolt
d d d d d Washer
e e e e e Nut
f f f f f Oil strainer
g g g g g Bolt
h h h h h O-ring
7-7
