VoloAccess™

VPN

The VoloAccess can be configured as a VPN (Virtual Private Network) Host. To do this, proceed as follows:
●

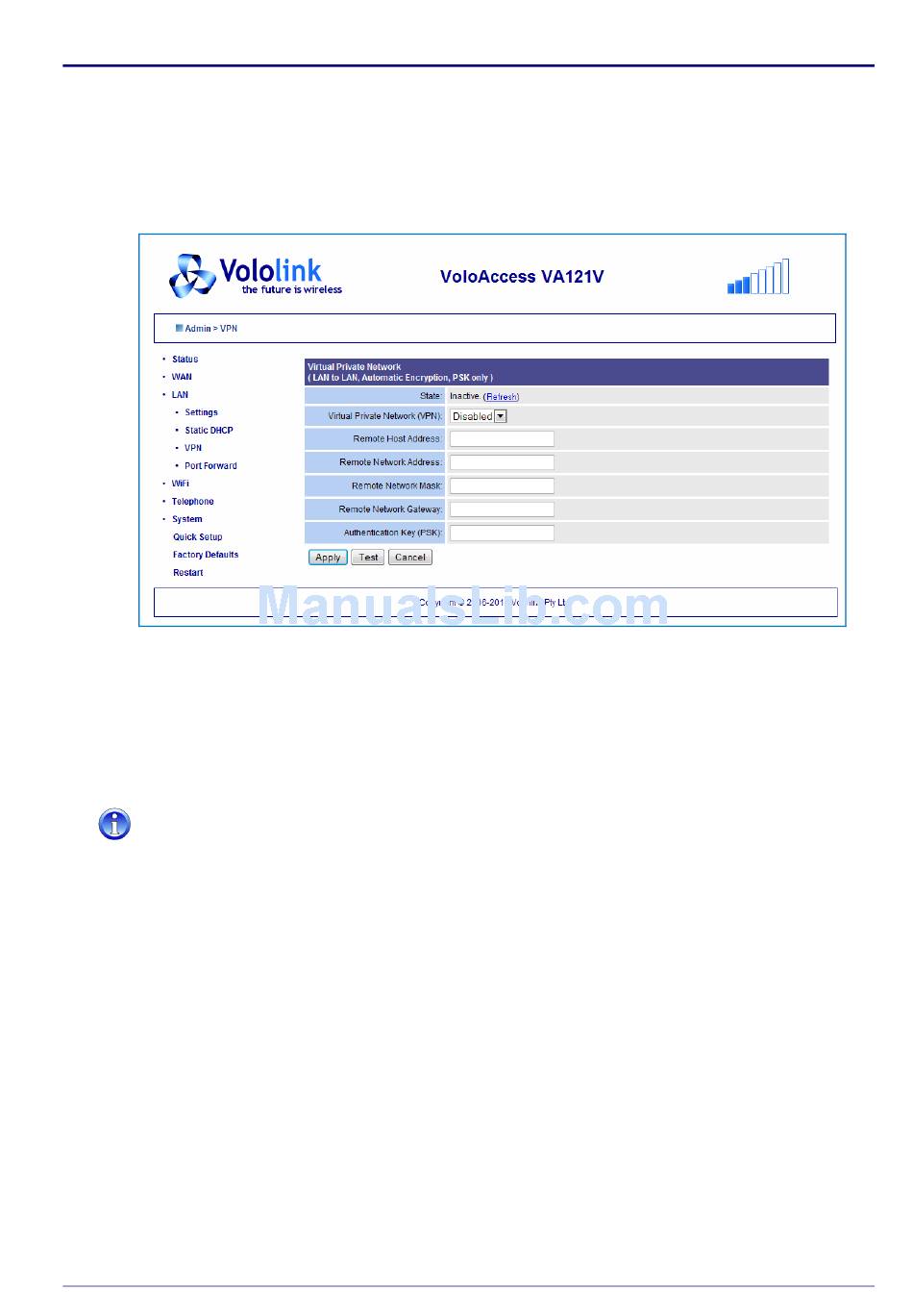

Select LAN followed by VPN in the Navigation panel - the VPN Page appears:
●
Select Enabled from the drop-down list and proceed to configure VPN.
●
Click the Apply button
You will need to obtain the following information from the administrator of the remote server:
●
Remote Host Address
●
Remote Network Address
●
Remote Network Mask
●
Remote Network Gateway
Authentication Key – A Pre-Shared Key (PSK)
●
The VPN is implemented using IPsec in Network-to-Network mode. This means that the VoloAccess
is a VPN router providing connectivity between two LANs.
Currently, the supported settings are authentication via pre-shared key using SHA1, with 3DES
encryption. The Diffie-Hellman group is modp1024.
