VoloAccess Indicators

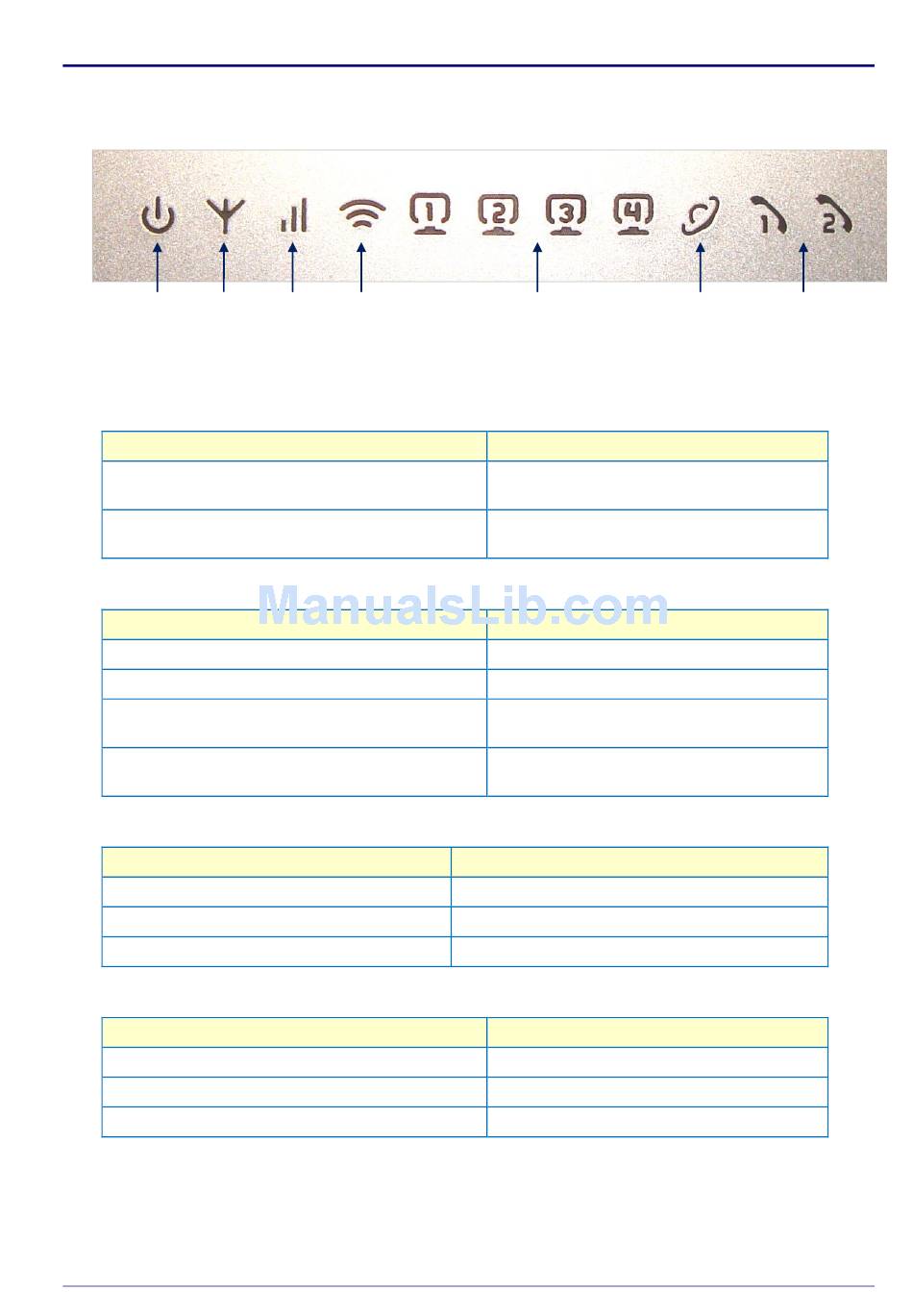

The following image shows the VoloAccess Indicators and describes what each one represents.
Power Mobile
Network
The following tables describe the behaviour of the indicators.

Power Supply

The VoloAccess is connected to mains power and
switched ON.
The VoloAccess is not connected to mains power
or it is switched OFF.

Mobile Network Connection

SIM is not available (missing or locked)
Searching for a mobile network
Connected to a mobile network – voice and SMS
available, but no data service
Broadband data service established - all services
available

Received Signal Strength

Good signal present
Weak signal present
No signal present

Wireless Local Area Network (WLAN)

WiFi is not enabled
WiFi is enabled
WiFi network traffic is detected
