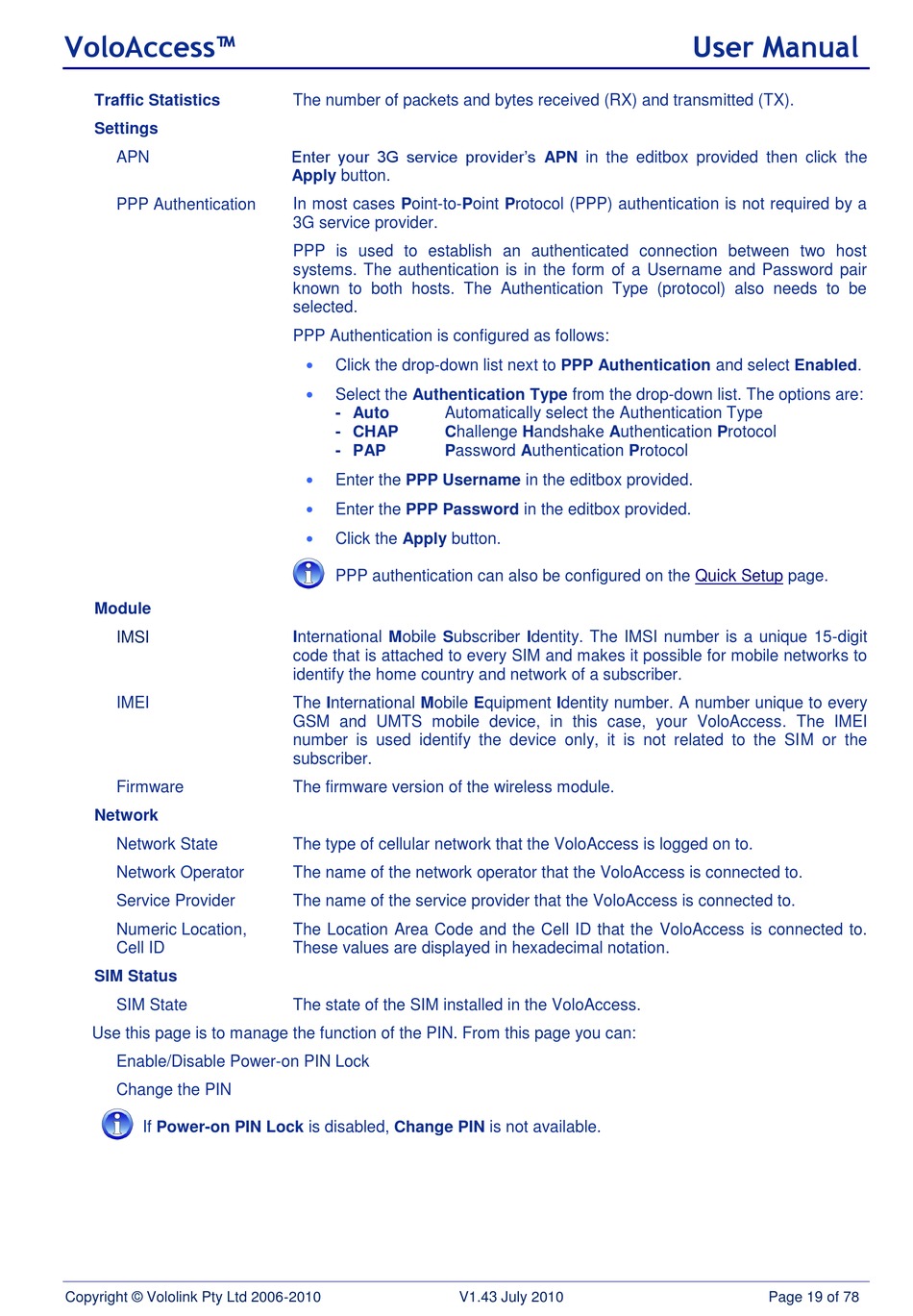

VoloAccess™
Traffic Statistics
Settings
APN
PPP Authentication
Module
IMSI
IMEI
Firmware
Network
Network State
Network Operator
Service Provider
Numeric Location,
Cell ID
SIM Status
SIM State
Use this page is to manage the function of the PIN. From this page you can:
Enable/Disable Power-on PIN Lock
Change the PIN
If Power-on PIN Lock is disabled, Change PIN is not available.
Copyright © Vololink Pty Ltd 2006-2010
The number of packets and bytes received (RX) and transmitted (TX).
Enter your 3G service provider‟s APN in the editbox provided then click the
Apply button.
In most cases Point-to-Point Protocol (PPP) authentication is not required by a
3G service provider.
PPP is used to establish an authenticated connection between two host
systems. The authentication is in the form of a Username and Password pair
known to both hosts. The Authentication Type (protocol) also needs to be
selected.
PPP Authentication is configured as follows:

Click the drop-down list next to PPP Authentication and select Enabled.

Select the Authentication Type from the drop-down list. The options are:
- Auto Automatically select the Authentication Type
- CHAP Challenge Handshake Authentication Protocol
- PAP Password Authentication Protocol

Enter the PPP Username in the editbox provided.

Enter the PPP Password in the editbox provided.

Click the Apply button.
PPP authentication can also be configured on the
International Mobile Subscriber Identity. The IMSI number is a unique 15-digit
code that is attached to every SIM and makes it possible for mobile networks to
identify the home country and network of a subscriber.
The International Mobile Equipment Identity number. A number unique to every
GSM and UMTS mobile device, in this case, your VoloAccess. The IMEI
number is used identify the device only, it is not related to the SIM or the
subscriber.
The firmware version of the wireless module.
The type of cellular network that the VoloAccess is logged on to.
The name of the network operator that the VoloAccess is connected to.
The name of the service provider that the VoloAccess is connected to.
The Location Area Code and the Cell ID that the VoloAccess is connected to.
These values are displayed in hexadecimal notation.
The state of the SIM installed in the VoloAccess.
V1.43 July 2010
User Manual
Quick Setup page.
