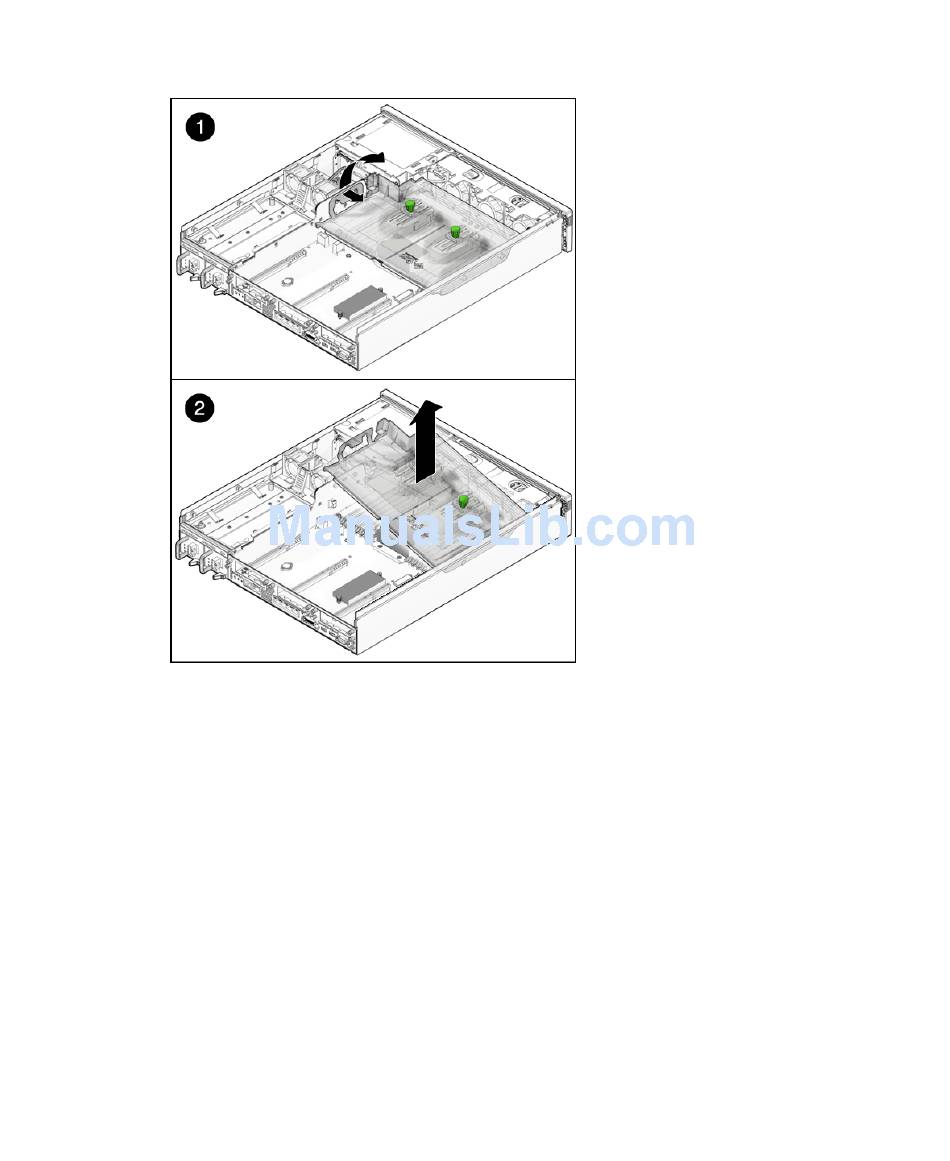

FIGURE 4-11
4. Consider your next step:
If you removed the air duct as part of another procedure, return to that procedure.
■
Otherwise, continue to
■
4.4.2

Installing the Air Duct

1. Remove the replacement air duct from its packaging.
2. With the duct at a 45 degree angle, position the pin holes in the duct to align
with the pins of the chassis (
3. Lower the duct to the horizontal position until the tab secures in place
(
FIGURE 4-12
4-18 Sun Netra T5220 Server Service Manual • January 2012
Removing the Air Duct
Section 4.4.2, "Installing the Air Duct" on page
).
).
FIGURE 4-12
4-18.
