4. Loosen captive screws labeled 2 and 3, and remove non-captive screw labeled 1
closest to the front of the server (
5. Lift the media bay assembly out of the chassis (
FIGURE 3-10
6. (Optional) Disconnect and remove the ribbon cable from the PDB.
7. Set the media bay assembly aside on an antistatic mat.
8. Consider your next step:
If you removed the media bay assembly as part of another procedure, return to
■
that procedure.
Otherwise, continue to
■
page
3-10 Sun Netra T5220 Server Service Manual • January 2012

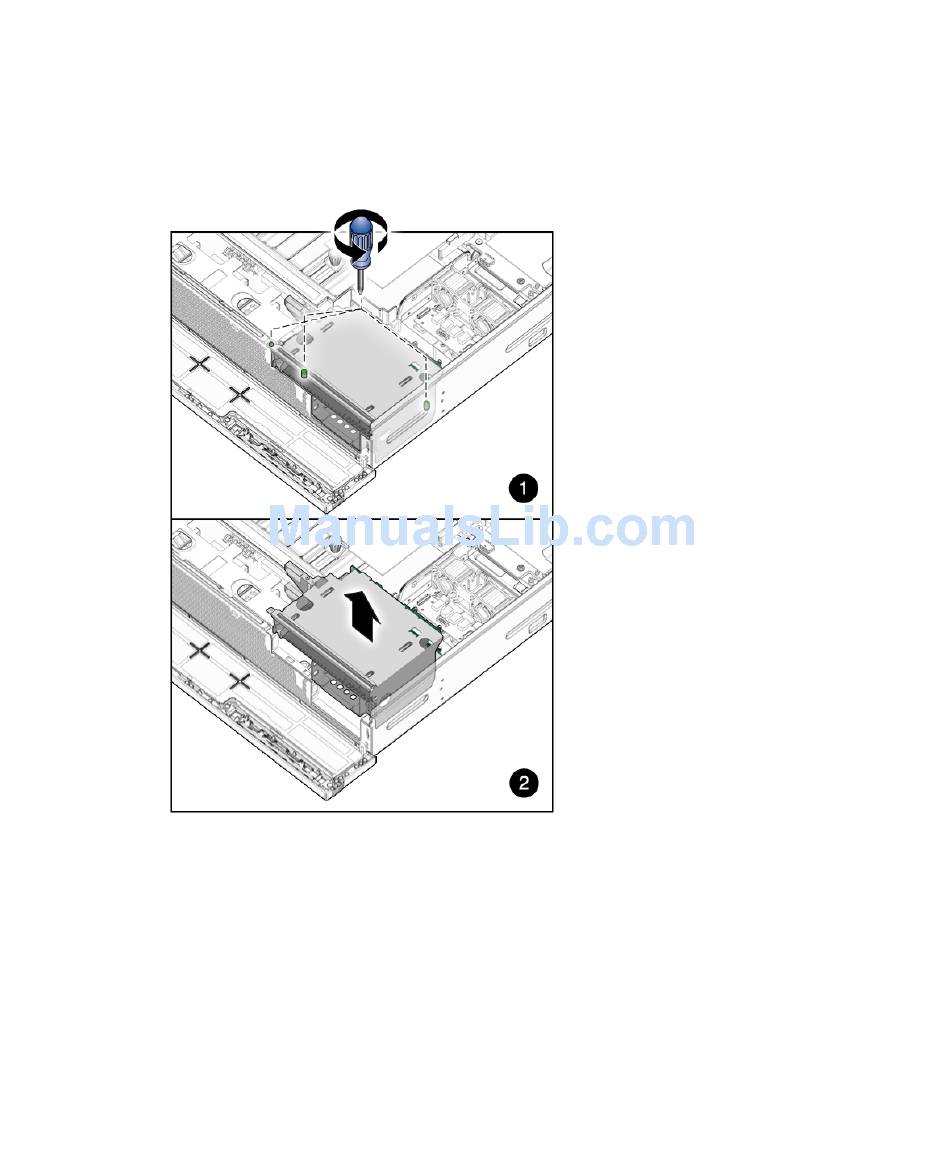

Loosening the Media Bay Assembly Screws and Lifting From Chassis
Section 3.3.2, "Installing the Media Bay Assembly" on
3-11.
).
FIGURE 3-10
FIGURE 3-10
).
