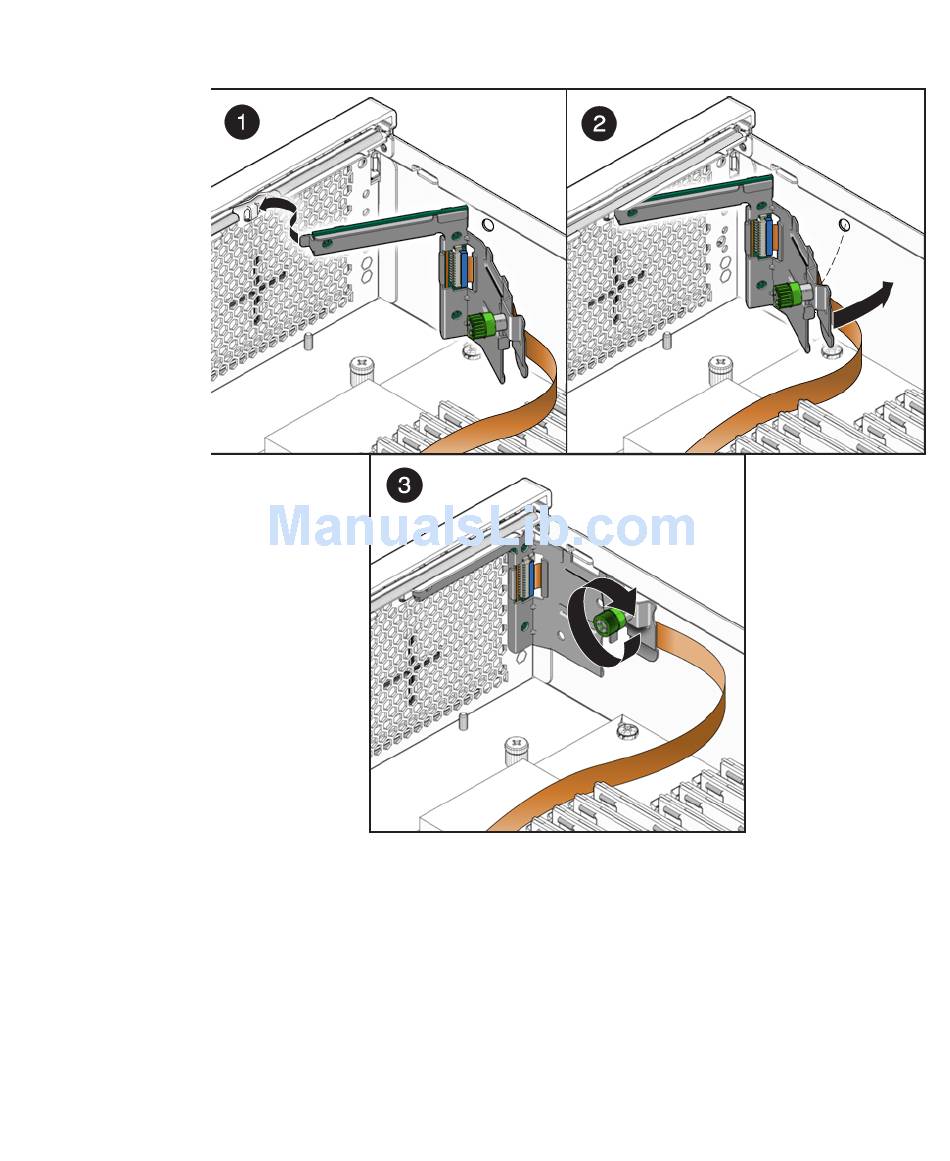

Inserting the LED Board Tab and Tightening Thumbscrew
FIGURE 5-19
5. Route the LED board cable back into the cable guides.
6. Install the system fan assembly.
See
Section 5.3.2, "Installing the System Fan Assembly" on page
7. Install the air duct.
See
Section 4.4.2, "Installing the Air Duct" on page
8. Perform the following tasks to bring the server back online:
Section 6.1.1, "Installing the PCI Mezzanine" on page 6-1
■
4-18.
Chapter 5
Replacing Chassis Components
5-8.
5-21
