TS400/TS410 Installation Instructions
Flush Contact
Surface Contact

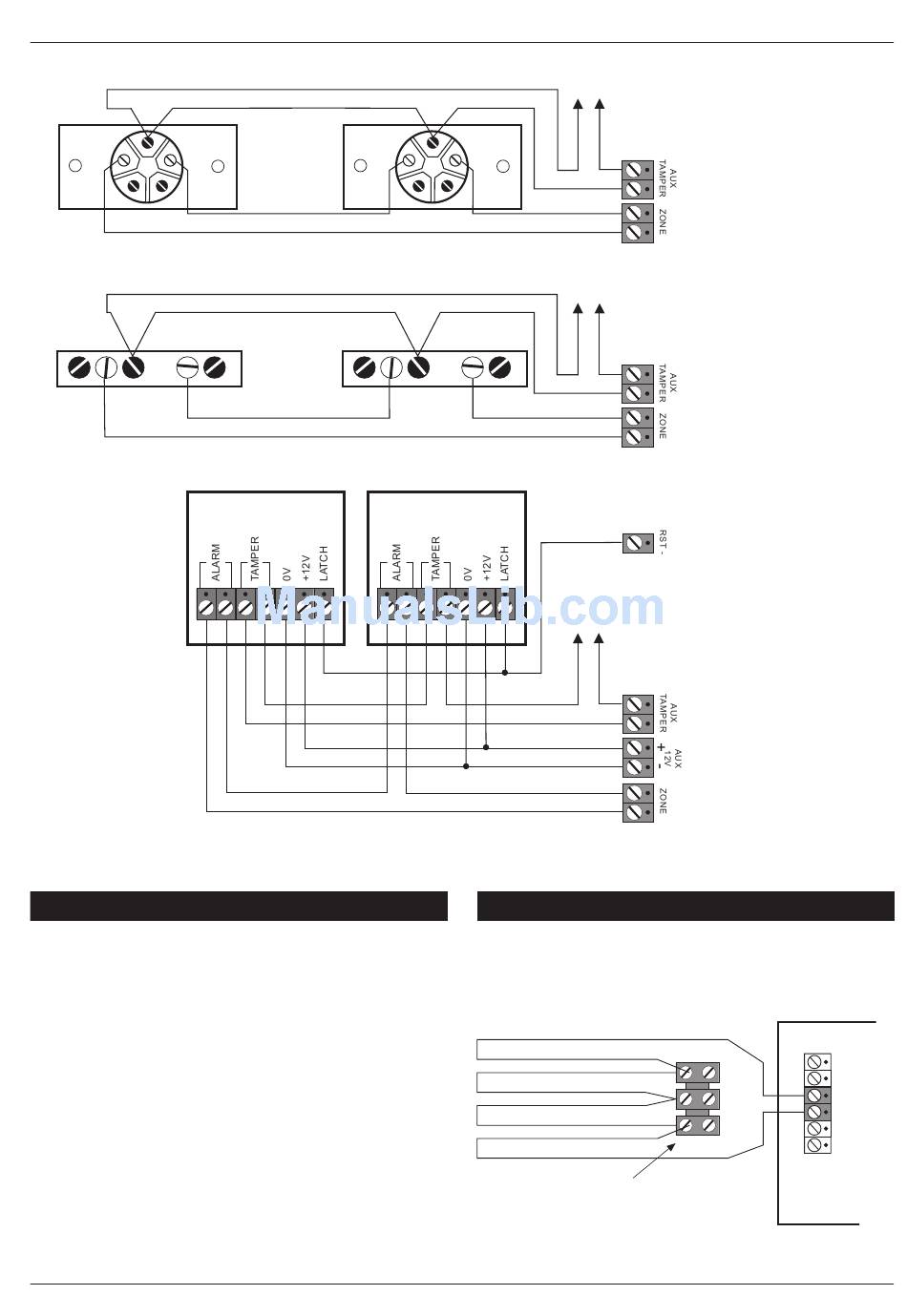

Figure 4 Connecting Multiple Detectors per Zone

Multiple Detectors on the same Zone

Door Contacts

When connecting more than one door contact to
a zone, the alarm contacts must be connected in
series. The switch inside the contact is connected
between the two plated screws (shown in white in
the above figure).

Passive Infra-Red

When connecting more than one PIR to a zone it is
recommended that you use "Latching" type PIRs.
The latch terminal on the PIR is connected to the
[RST-] output which must then be programmed as
SW 12V.
Flush Contact
Surface Contact
PIR
To tamper loop
for other zones
To tamper loop
for other zones
PIR Program [RST-] as
SW 12V
To tamper loop
for other zones

Auxiliary Tamper

The tamper wires for each detector must be
connected in series using a terminal strip or similar
and then connect to the AUX TAMPER terminals.
Tamper Loop
Tamper Loop
Tamper Loop
Tamper Loop
Terminal Strip (Not Supplied)
Figure 5 Auxiliary Tamper Connection
System Installation
Connecting several
flush contacts per zone
Connecting several
suface contacts per zone
Connecting several
PIRs per zone
AUX
TAMPER
9
