System Installation

Wiring Example

ALARM
PIR
TAMPER
0V
+12V
ALARM
PIR
TAMPER
0V
+12V
Smoke Detector
Supply +
Supply -
ALARM

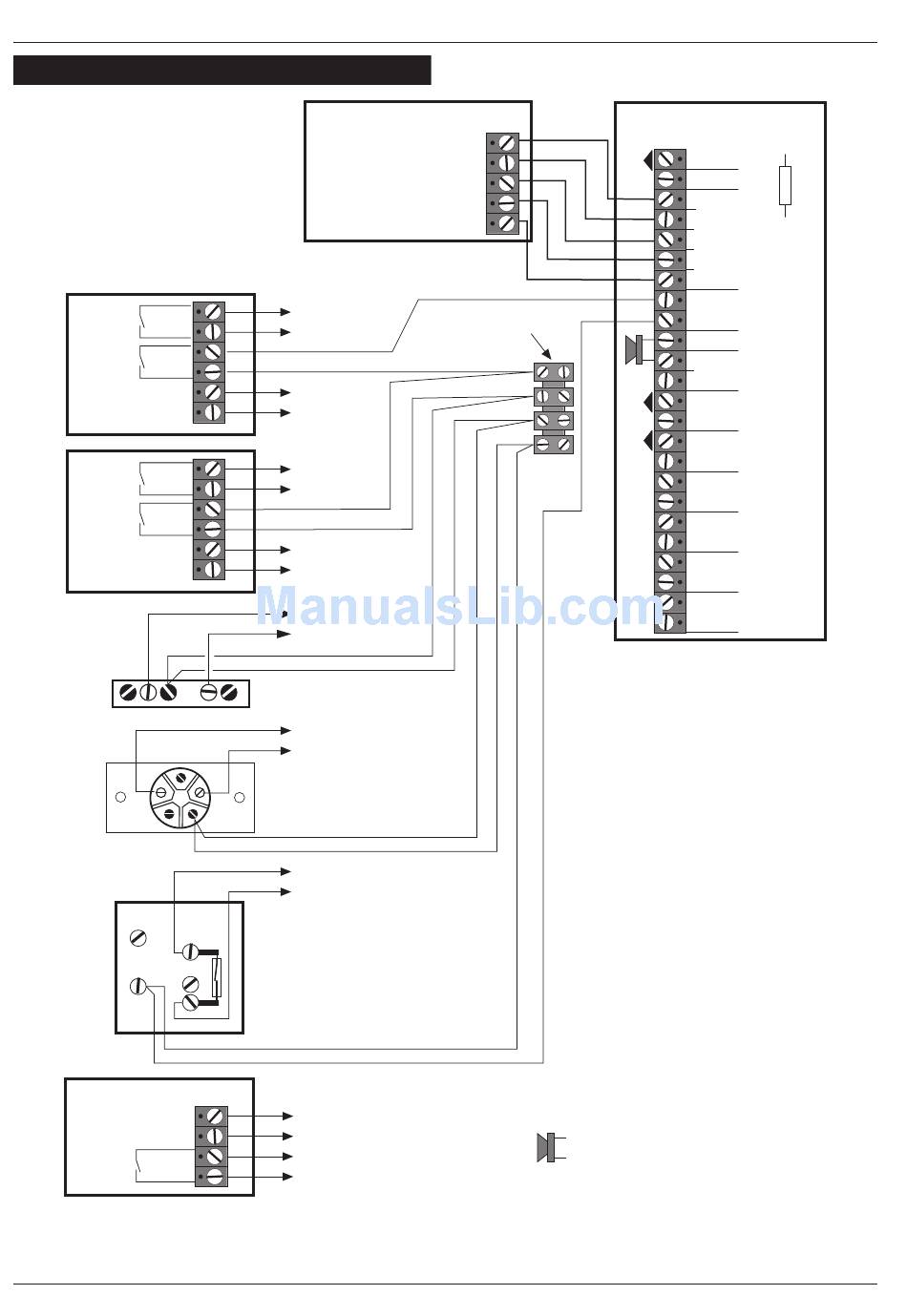

Figure 6 Example Wiring Diagram
10
External Sounder
TRIGGER -
STROBE -
HOLD OFF +
HOLD OFF -
TAMPER RETURN -
To ZONE 1
Terminal strip
(not supplied)
To AUX -12V
To AUX +12V
To ZONE 2
To AUX -12V
To AUX +12V
To ZONE 3
Surface Contact
To FINAL EXIT
Flush Contact
To ZONE 5 (P .A.)
P .A. Button
To AUX +12V
To AUX -12V
To ZONE 4 (Fire)
TS400/TS410 Installation Instructions
TS400 / TS410
ALM -
RST -
TRG -
STB-
+
H/O
-
TMP -
AUX
TAMPER
L/S -
+
AUX 12V
-
ZONE 5 (P A)
ZONE 4 (Fire)
ZONE 3 (K/Sw)
ZONE 2 (Access)
ZONE 1 (Access)
FINAL EXIT
Note
Any unused zones must be
linked out.
PIRs and surface contacts can
be connected to any zone. This
diagram is only used to
represent a typical installation
example.
If a keyswitch is fitted, it must
be connected to ZONE 3 and
then programmed as
KEYSWITCH.
If a smoke/heat detector is
fitted, it must be connected to
ZONE 4 and then programmed
as FIRE.
If a P .A. button is fitted, it must
be connected to ZONE 5 and
then programmed as P .A.
16 Ohm Extension loudspeaker
(cut R37 to reduce volume)
R37
