TS400/TS410 Installation Instructions
The mains cable must enter the control
panel through its own cable entry and
must not be mixed with other cables.
3. Hold the control panel back box in the required
position (keyhole to the top) and mark the
centre of the keyhole position. Remove the
back box, drill and plug the hole.
4. Screw a No 10 screw into the plugged hole.
Re-position the back box and mark the
remaining securing holes. Remove the back
box, drill and plug the holes.
5. Re-position the back box and pass all cables
into the base via cable entries, grommeting as
appropriate.
6. Secure the back box using not less than 30mm
+
x No 10 screws.
When replacing the cover, always
ensure that the earth bonding lead is
connected to the spade connection
inside the control panel.
Fused
terminal block
(200mA)
Transformer

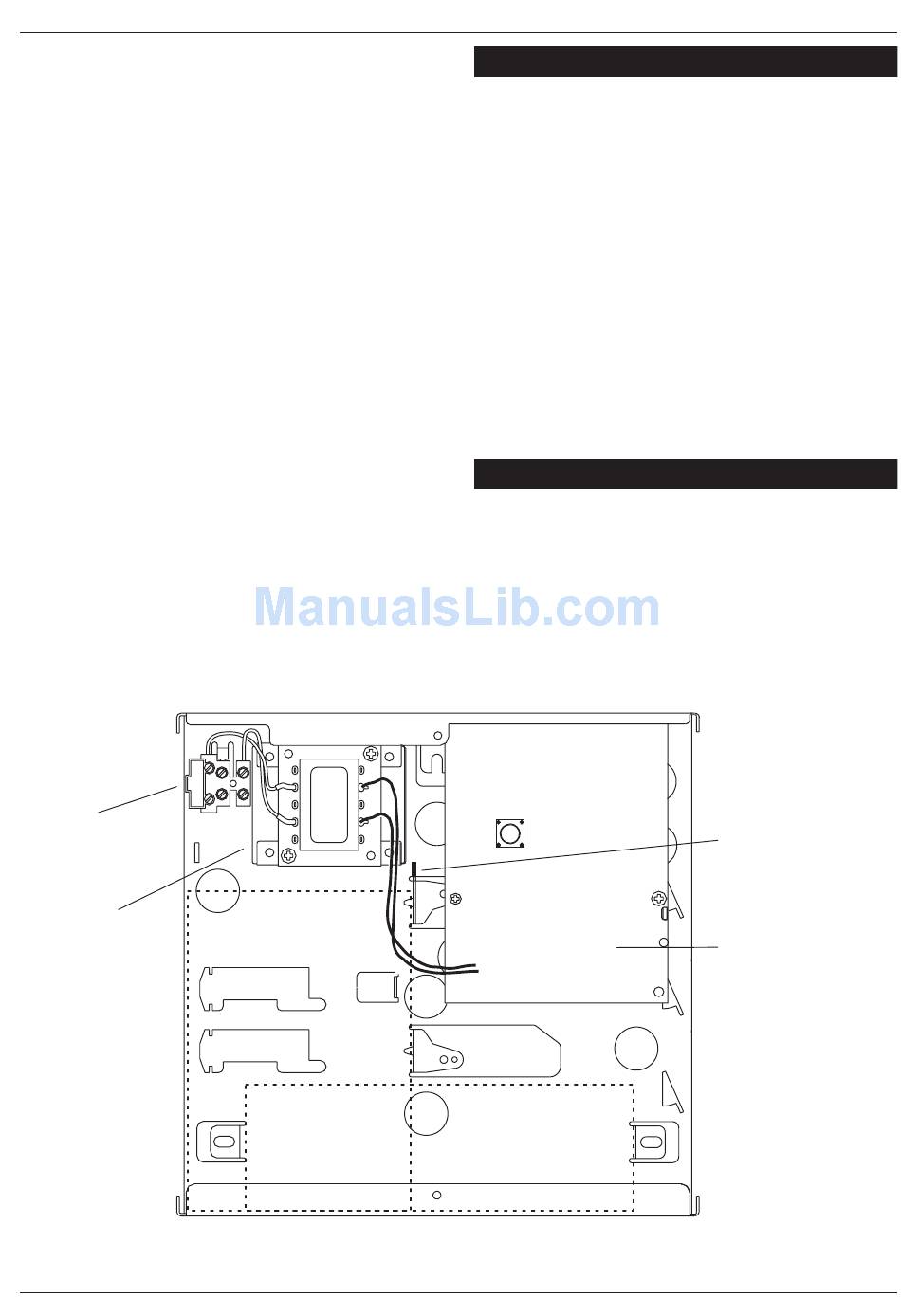

Figure 2 TS410 Control Panel Assembly
Standby battery
7.0 Ah

Mains Connection

The mains supply is connected to a 3 way "Euro
Type" fused terminal block, which is fitted with a
200mA fuse. All electrical connections should be
carried out by a qualified electrician and must
+
comply with the current IEE regulations.
To comply with european regulations the
supply should be fed from a readily
accessible disconnect device, e.g.
+
un-switched fused spur fitted.
When making mains connections it should
be ensured that if the cable slips in such a
way as to place a strain on the conductors,
the protective earthing conductor will be
the last to take the strain.

Battery Connection

A suitable standby battery must be fitted to the
system to allow it to function during a mains fail
condition. The TS400 and TS410 are equipped with
a "Battery Protection" circuit so that if a battery is
accidentally reverse connected or its voltage is
below 4V, a tamper alarm is generated. To clear
the fault simply reconnect or replace the battery
as appropriate.
Standby battery
2.1 Ah
System Installation
Spade connection
for earth lead to front
cover
Printed Circuit Board
(PCB)
7
