TS400/TS410 Installation Instructions

Installing a Remote Keypad

Ensure that the mains and battery power has been
disconnected and proceed as follows:
1. Connect each core of the 6-core cable to the
interface terminals "L E D C B A" (make a note of
the colours used for each connection).
2. Pass the yellow flying-lead behind the PCB and
connect it to the [L/S-] terminal.
3. Plug the Interface board into the interface
socket as shown below.
Flying-lead
connected to L/S -

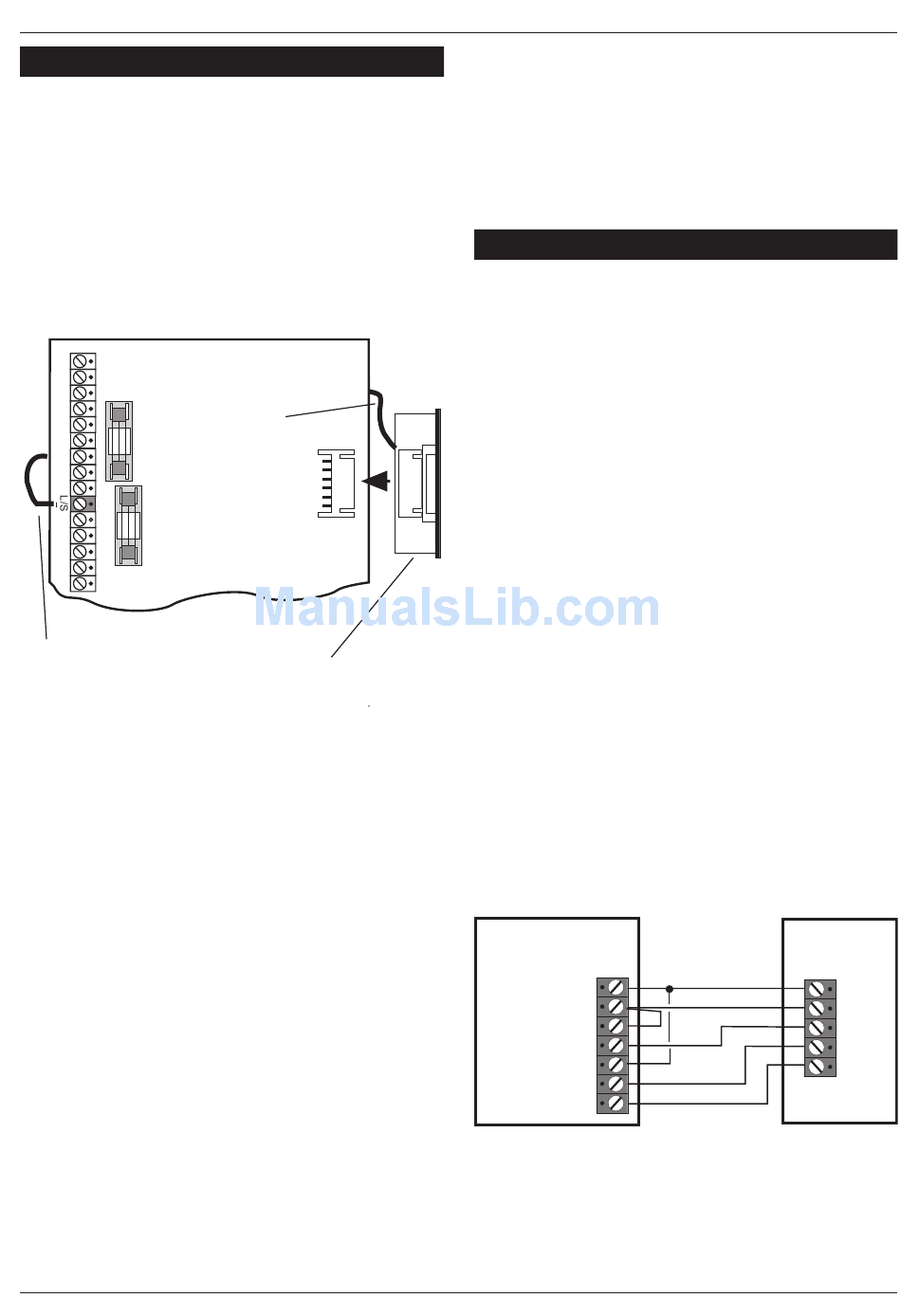

Figure 7
Remote Interface Connections
4. Separate the remote keypad cover and base
by using a screwdriver to push two of the clips
(top or bottom) inwards from the cover
retaining slots. Then lift the cover assembly,
noting that the circuit board is connected to
the under side of the cover.
5. Hold the remote keypad base in position
(keyhole to the top) and mark the three
securing holes, drill and plug the wall as
required. Pass the 6-core cable into the base
via the cable entry points as appropriate and
secure the base to the wall.
6. Connect each core of the 6-core cable to the
remote keypad terminals "L A B C D E", ensuring
that the connections through to the control
panel are A to A, B to B, etc. If more remote
keypads are to be fitted, they may be
conn ected i n a st a r o r da i sy ch a i n
configuration (providing the cable length to
Flying-lead
Interface PCB
the last or furthest remote keypad does not
exceed 50 metres).
7. Carefully reattach the front cover assembly to
the remote keypad base ensuring that all
cables are clear of the tamper switch spring
and the cover is securely clipped to the base.

External Sounder Connections

The following terminals have been provided to
allow connections to an external sounder:
H/O -
This is used to provide a permanent -ve
hold off to external sounders, strobes etc.
H/O + This is used to provide a permanent +ve
hold off to external sounders, strobes etc.
It is protected by a 1 Amp fuse (Bell 12V).
TMP -
This is the negative tamper return
connection from the external sounder. If
an external sounder is not fitted this input
must be linked to [H/O -].
STB -
This is the strobe output which switches to
0V on alarm. The output is rated at 500mA
and should be connected to -ve strobe
trigger input on the external sounder.
TRG -
This is the external sounder trigger output
which is rated at 500mA. This output can
b e pr og r a mm ed fo r SA B o r SC B
operation, as follows:
SAB: TRG - will switch to 0V on alarm and
will provide a maximum of 500mA.
SCB: TRG - will provide a negative hold
off (500mA), which is removed on alarm.
Typical
External Sounder
12V +
0V
Tamper In
Tamper Out
Strobe +ve
Strobe -ve
Trigger -ve
Figure 8
External Sounder Connections
System Installation
Control
Panel
H/O +
H/O -
TMP -
STB -
TRG -
