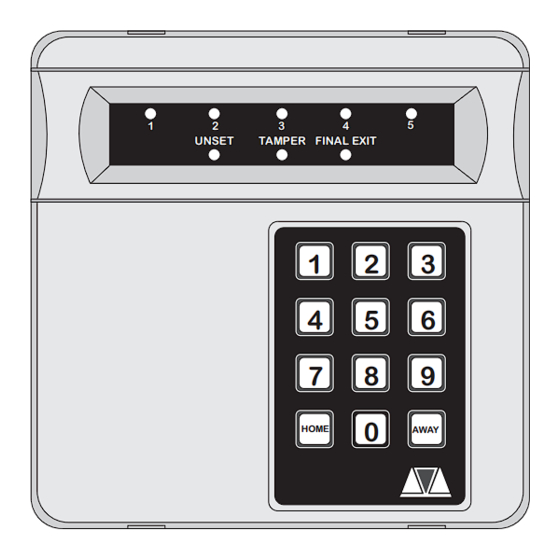

TS400 Remote Keypad Installation Instructions

Introduction

Up to four full function remote keypads can be connected to the TS400/TS410 control panel.
Each unit is supplied with an interface PCB which plugs onto the main panel PCB. The remote
keypad(s) can be positioned up to a maximum of 50 metres from the control panel using
standard six-core alarm cable.

Specifications

Current Consumption:
Dimensions:
Material:
Weight:
Environment:

Installation

Assuming that the control panel cover has been removed and that the mains and battery
power has been disconnected, proceed as follows:
1. Connect each core of the six-core cable to the interface terminals "L E D C B A" (make a
note of the colours used for each connection).
Pass the yellow fly-lead behind the PCB and connect it to the [L/S-] terminal.
2.
3. Plug the Interface PCB onto the REMOTE interface as shown in Figure 1.
4. Separate the remote keypad cover and base by using a screwdriver to push two of the
clips (top or bottom) inwards from the cover retaining slots. Then lift the cover assembly,
noting that the PCB is connected to the under side of the cover.
5. Hold the remote keypad base in position (keyhole to the top) and mark the three securing
holes, drill and plug the wall as required. Pass the six-core cable into the base via the cable
entry points as appropriate and secure the base to the wall.
6. Connect each core of the six-core cable to the remote keypad terminals "L E D C B A",
ensuring that the connections through to the control panel are A to A, B to B, etc. If more
remote keypads are to be fitted, they can be connected in a "star" or "daisy" chain
configuration (providing the cable length to the last or furthest remote keypad does not
exceed 50 metres).
7. Carefully re-attach the front cover assembly to the remote keypad base ensuring that all
cables are clear of the tamper switch spring and the cover is securely clipped to the base.
36mA (normal); 48mA (alarm)
130(W) x 130(H) x 30(D) mm
3mm Polycarbonate
322g
0 - 55°C
