Installing the TS400 Control Panel

1. Remove the screw from the top of the control
panel and lift away the front cover.
2. Ensure that there is no battery in the housing,
then remove the circuit board as follows:
(a) Disconnect the yellow leads from the
transformer and remove the connections
to the internal loudspeaker.
(b) Pull down the plastic clip at the bottom right
hand corner of the circuit board and gently
lift the board forward.
(c) Repeat with the plastic clip at the bottom
left hand corner of the circuit board.
(d) The bottom of the circuit board will then
swing forward and can be removed from
the base.
3. Hold the base in the required position and
mark the centre of the keyhole. Remove the
base, then drill and plug the holes. Note:
Remember to allow enough room to get the
cover screw in to top of panel when mounting
the base.
Holders for
spare fuses
Fused
terminal block
(200mA)
Transformer
Cover clips

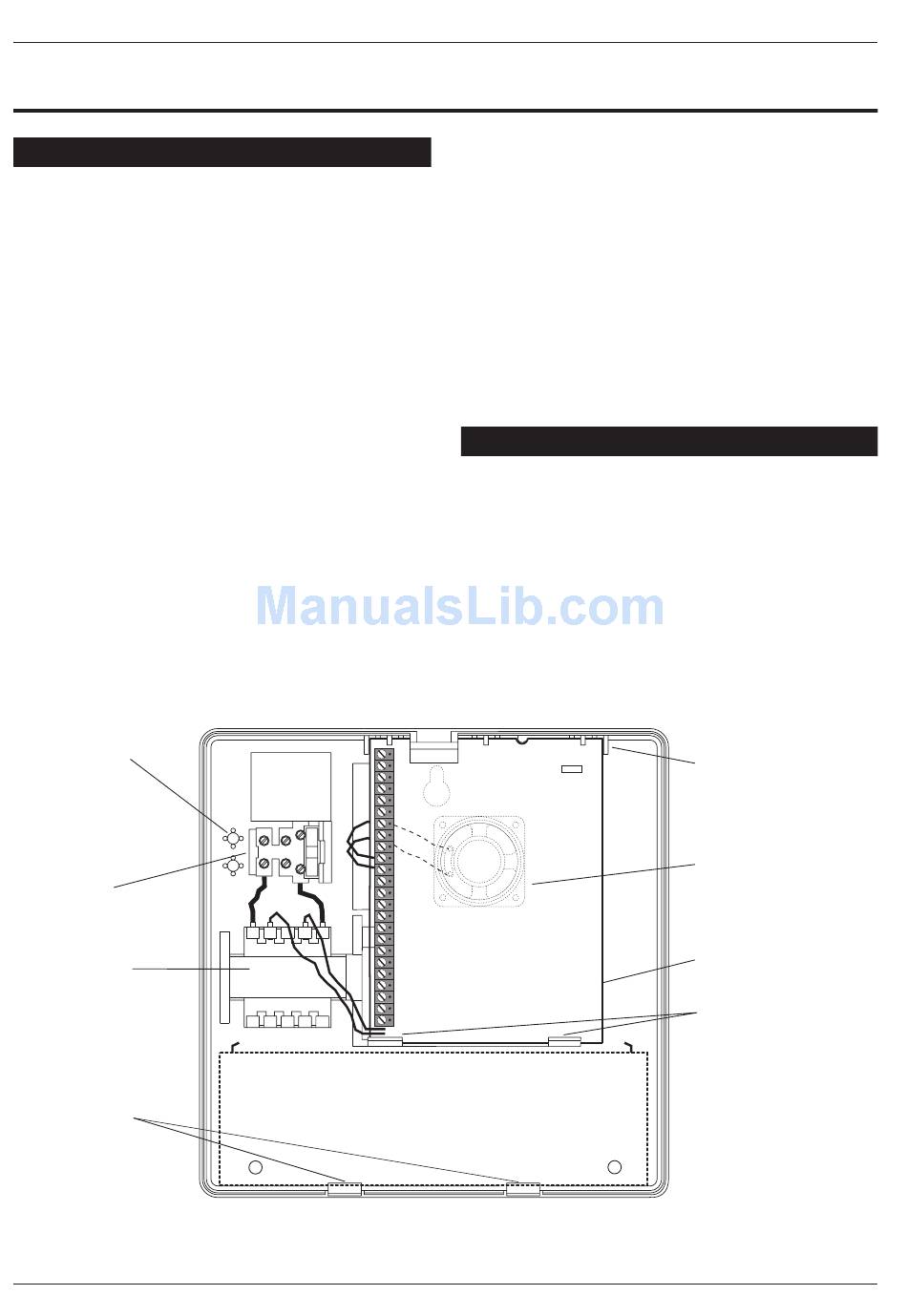

Figure 1 TS400 Control Panel Assembly
6
+
Standby battery
2.1 Ah max.
TS400/TS410 Installation Instructions
4. Re-position the base and secure to the wall
using not less than 30mm x No 10 screws.
5. Re-fit the circuit board assembly by aligning
the top of the board into the 2 supports in the
top of the housing ensuring that the edges of
the board sit between the 2 flanges, then push
the bottom of the circuit board until it clicks into
place.
6. Re-connect the yellow leads to the transformer
and re-connect the internal loudspeaker.

Installing the TS410 Control Panel

1. Open the control panel by removing the two
screws from the front cover.
2. Note the position of the cable entries as
follows:
(a) Seven 20mm cable entries for detection,
alarm and remote keypad cables.
(b) A 20mm cable entry for mains (240V)
below the mains input terminal block on
the left hand side of the control panel back
box.
-
PCB location
flange
Loudspeaker
(under PCB)
Printed Circuit Board
(PCB)
PCB retention clips
