System Installation

PCB Layout

Cut R37 to reduce
volume
External
sounder
connections
Zone
connections
Leads to
transformer

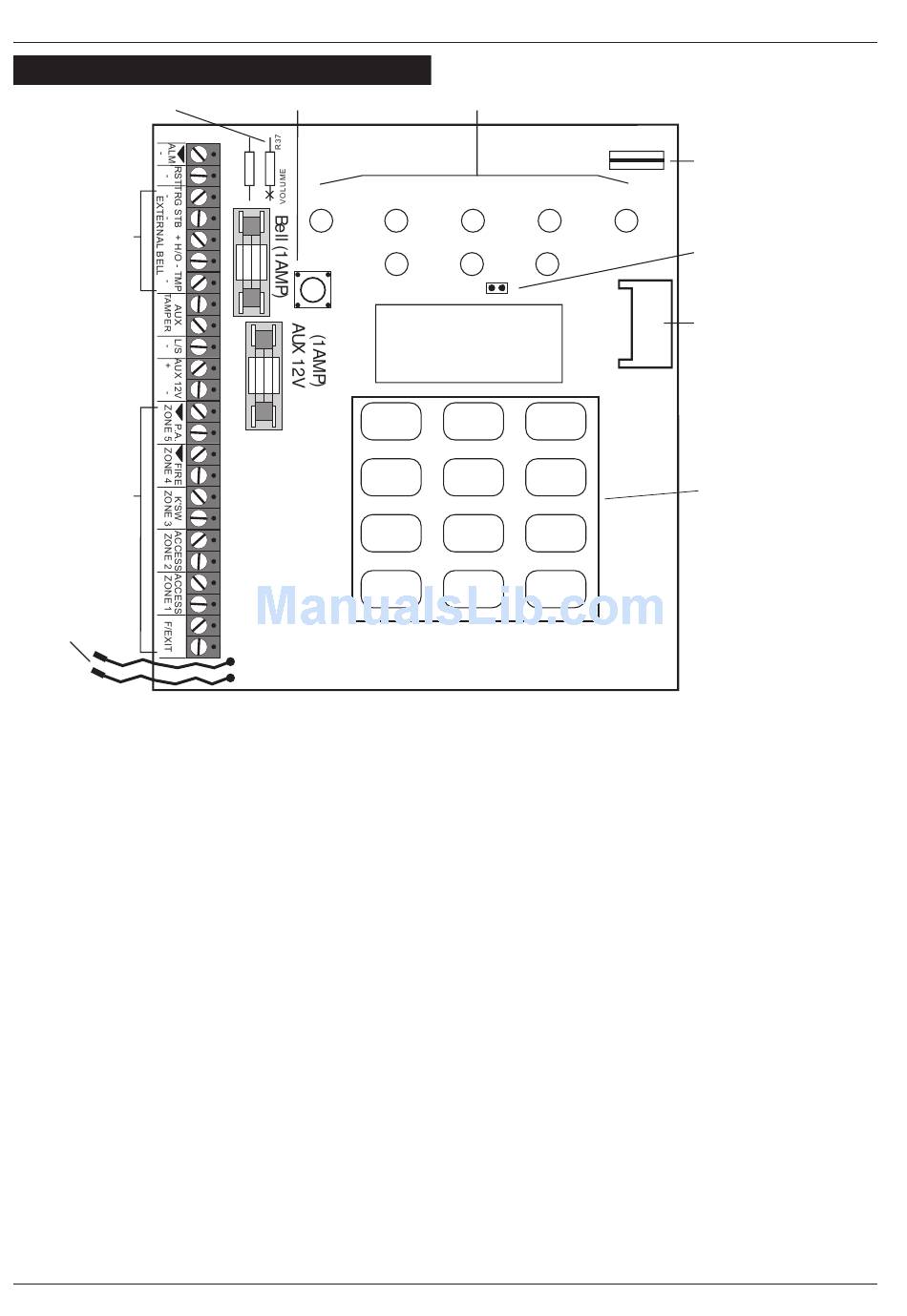

Figure 3 TS400 & TS410 Connection Diagram
Bell Fuse
This 1 Amp fuse protects the supply to the external
sounder/bell.
Aux Fuse
This 1 Amp fuse protects the supply to devices
power from the auxiliary 12V terminals.
Speaker Volume R37
Cut R37 to reduce the volume of the extension
loudspeakers.
Factory Restart Pins
If these pins are shorted during power-up all
system programming data is restored to the
factory default values, see page 13 for defaults.
Home Inhibit Link
When the link is open the [ALM-] terminal activates
when an alarm occurs during a full or part set
condition. When the link is closed the [ALM-]
terminal activates only if an alarm occurs during a
full set condition.
8
Tamper switch
1 2
UNSET
1
4
7
HOME
A.C.
TS400/TS410 Installation Instructions
Indicator LEDs
3 4
TAMP F/E
FACTORY
RESTART
2 3
5 6
8 9
0
AWAY
1 - 5 Indicator LEDs
These red indicator LEDs indicate the alarm status
of zone 1 - 5. Note these are not fitted on the
TS410.
Unset Indicator LED
This green indicator LED is used to indicate the
status of the system set or unset. It also flashes
when the mains power is removed or when the
user selects the user program mode
Tamp Indicator LED
This red LED is used to indicate a system tamper
alarm, it also flashes when the engineer program
mode is selected. Note this is not fitted on the
TS410.
F/E Indicator LED
This red LED is used to indicate the status of the final
exit zone. Note this is not fitted on the TS410.
HOME ALM
INHIBIT
Home alarm
inhibit link
5
Factory Restart Pins
Remote Keypad
Interface Connector
Keypad
(Not fitted on TS410)
