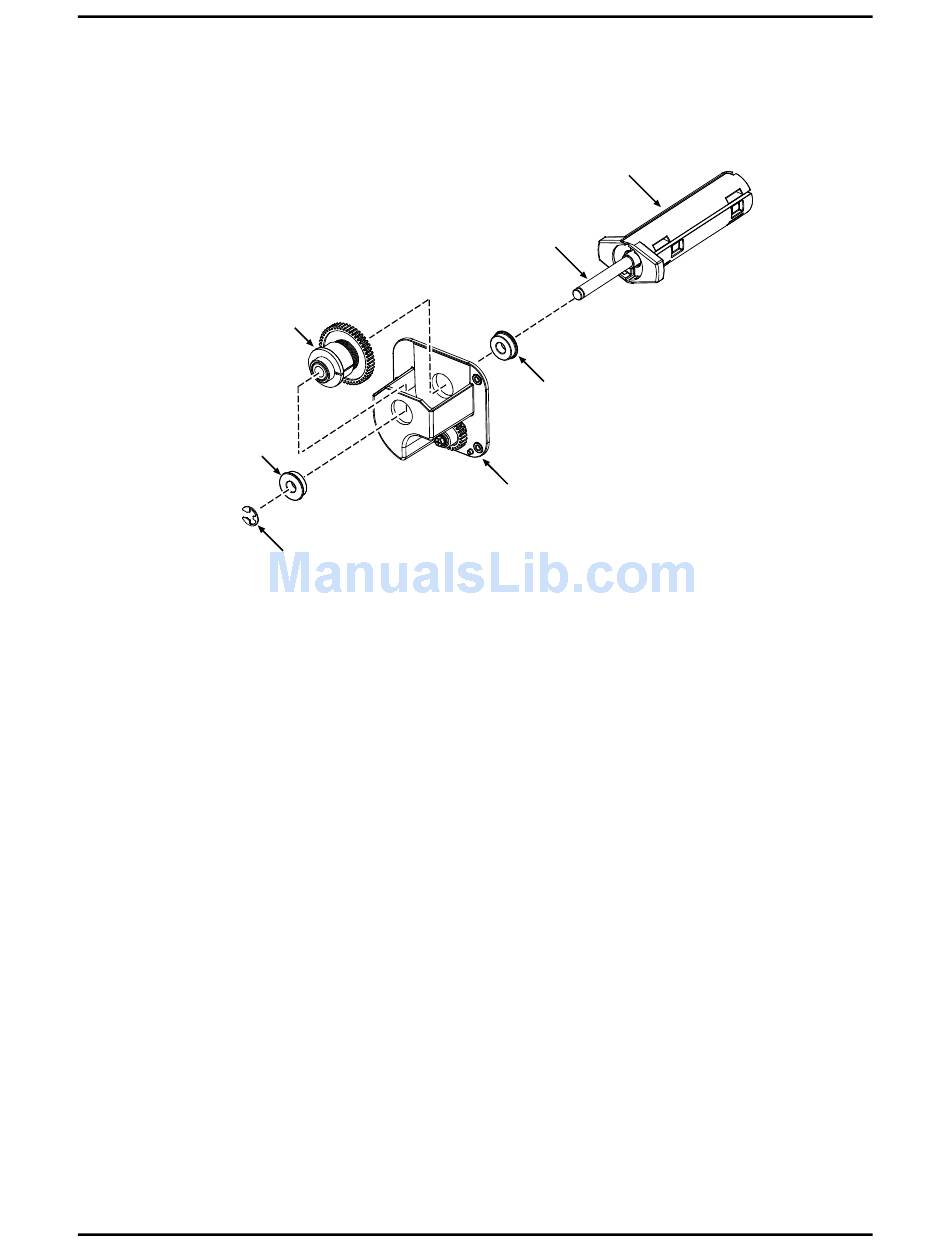

3. Slide out the Rewind Hub and Inner Bearing, and then remove the Clutch Assembly from
the Assembly Casting.
Clutch
Assembly
Outer
Bearing
Installation:
1. Position the Clutch Assembly in the Assembly Casting.
2. Install the Inner Bearing then slide the Rewind Hub Shaft through the Clutch Assembly
and Assembly Casting.
3. Install the Outer Bearing and secure the components with the C-Clip.
4. Install the Internal Rewinder; see Section 4.10.
4.10.2

Spur Gear

Removal:
1. Remove the Internal Rewinder; see Section 4.10.
2. Remove the Screw, Idler Post, and the Spur Gear from the Assembly Casting.
Removal and Replacement
C-Clip
4-27
Rewind
Hub
Rewind
Hub Shaft
Inner
Bearing
Assembly
Casting
