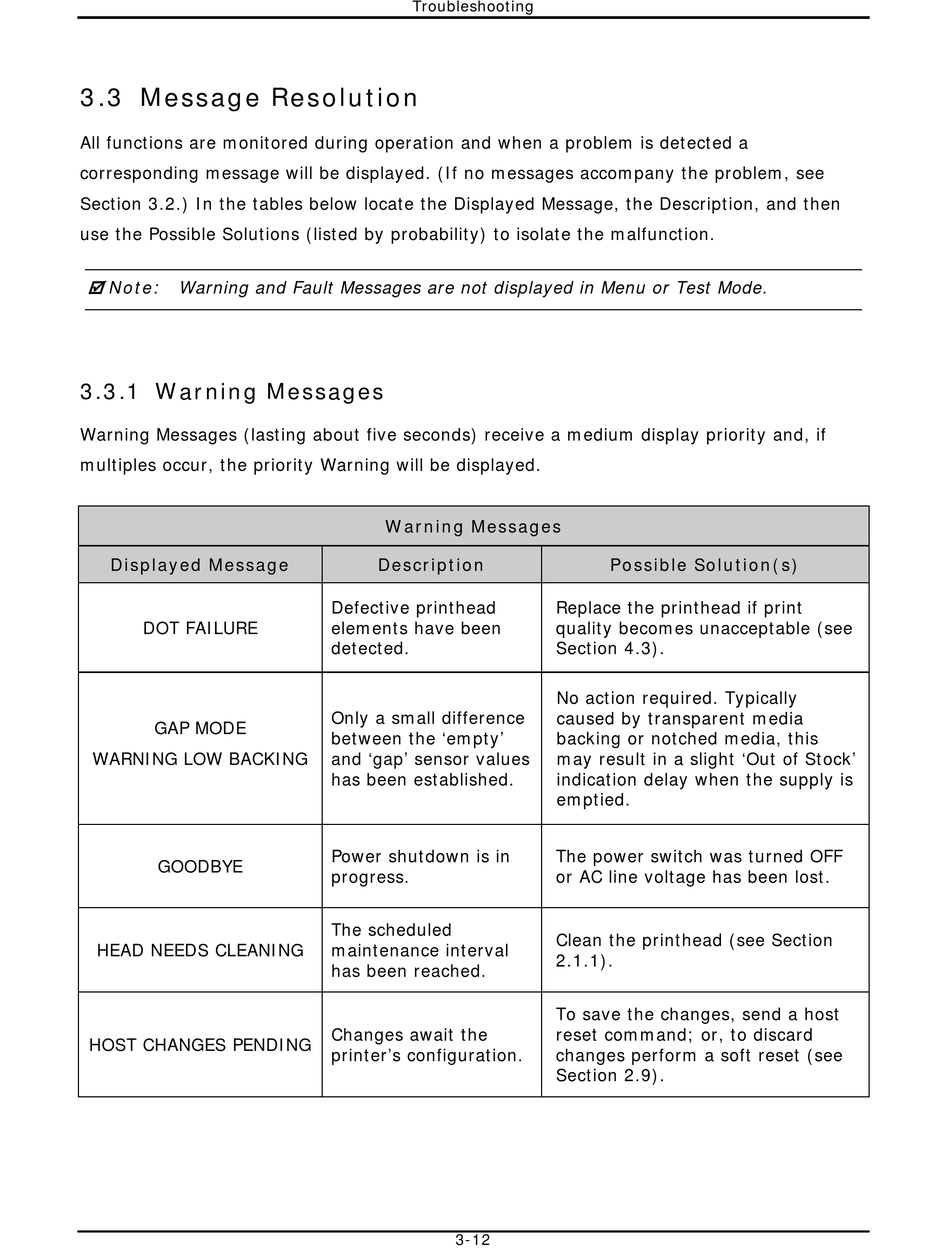

3.3 Message Resolution

All functions are monitored during operation and when a problem is detected a
corresponding message will be displayed. (If no messages accompany the problem, see
Section 3.2.) In the tables below locate the Displayed Message, the Description, and then
use the Possible Solutions (listed by probability) to isolate the malfunction.
Note: Warning and Fault Messages are not displayed in Menu or Test Mode.


3.3.1 Warning Messages

Warning Messages (lasting about five seconds) receive a medium display priority and, if
multiples occur, the priority Warning will be displayed.
Displayed Message
DOT FAILURE
GAP MODE
WARNING LOW BACKING
GOODBYE
HEAD NEEDS CLEANING
HOST CHANGES PENDING
Troubleshooting
Warning Messages
Description
Defective printhead
elements have been
detected.
Only a small difference
between the 'empty'
and 'gap' sensor values
has been established.
Power shutdown is in
progress.
The scheduled
maintenance interval
has been reached.
Changes await the
printer's configuration.
3-12
Possible Solution(s)
Replace the printhead if print
quality becomes unacceptable (see
Section 4.3).
No action required. Typically
caused by transparent media
backing or notched media, this
may result in a slight 'Out of Stock'
indication delay when the supply is
emptied.
The power switch was turned OFF
or AC line voltage has been lost.
Clean the printhead (see Section
2.1.1).
To save the changes, send a host
reset command; or, to discard
changes perform a soft reset (see
Section 2.9).
