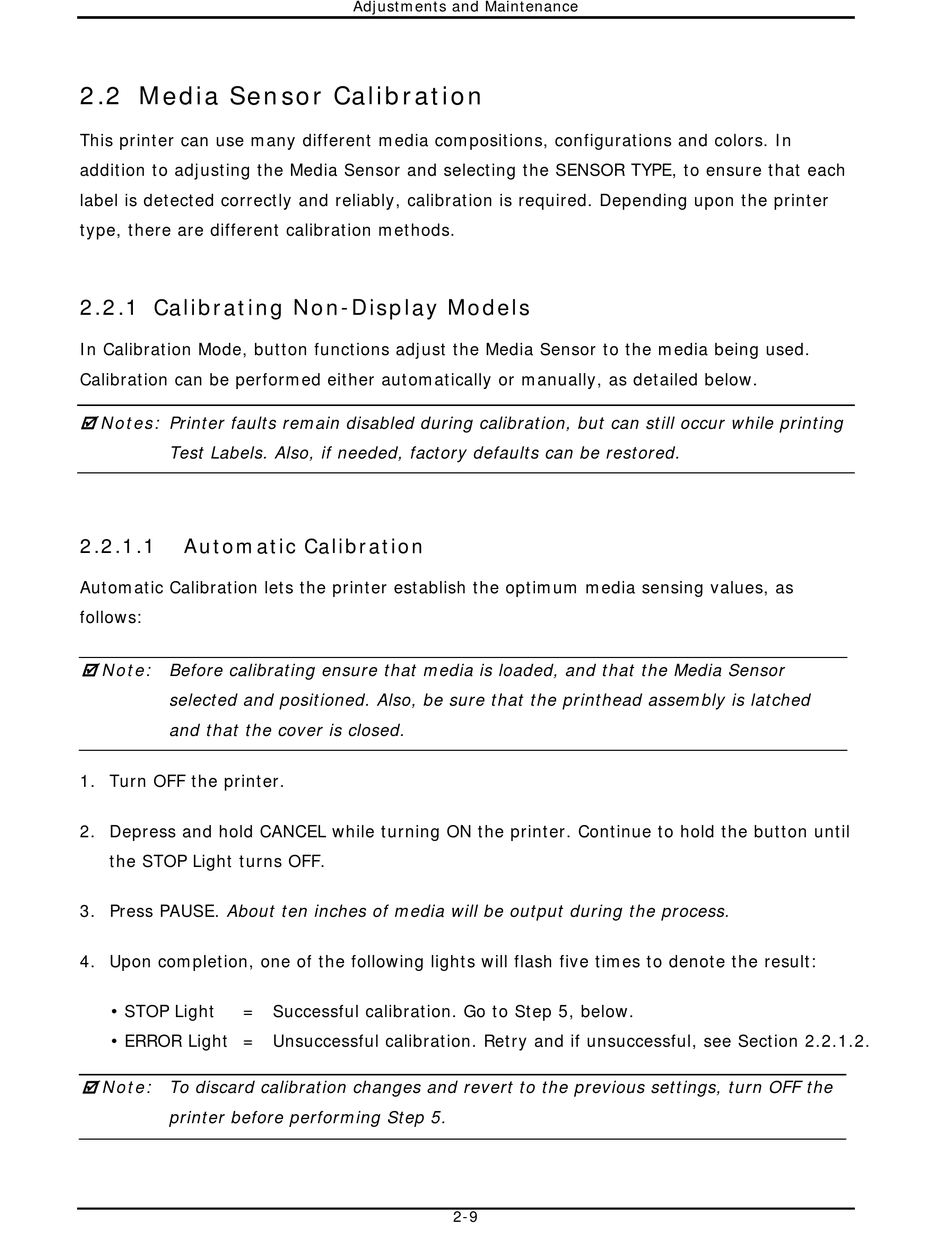

2.2 Media Sensor Calibration

This printer can use many different media compositions, configurations and colors. In
addition to adjusting the Media Sensor and selecting the SENSOR TYPE, to ensure that each
label is detected correctly and reliably, calibration is required. Depending upon the printer
type, there are different calibration methods.

2.2.1 Calibrating Non-Display Models

In Calibration Mode, button functions adjust the Media Sensor to the media being used.
Calibration can be performed either automatically or manually, as detailed below.
Notes: Printer faults remain disabled during calibration, but can still occur while printing

Test Labels. Also, if needed, factory defaults can be restored.
2.2.1.1

Automatic Calibration

Automatic Calibration lets the printer establish the optimum media sensing values, as
follows:
Note: Before calibrating ensure that media is loaded, and that the Media Sensor

selected and positioned. Also, be sure that the printhead assembly is latched
and that the cover is closed.
1. Turn OFF the printer.
2. Depress and hold CANCEL while turning ON the printer. Continue to hold the button until
the STOP Light turns OFF.
3. Press PAUSE. About ten inches of media will be output during the process.
4. Upon completion, one of the following lights will flash five times to denote the result:
= Successful calibration. Go to Step 5, below.
STOP Light
•
ERROR Light = Unsuccessful calibration. Retry and if unsuccessful, see Section 2.2.1.2.
•
Note: To discard calibration changes and revert to the previous settings, turn OFF the

printer before performing Step 5.
