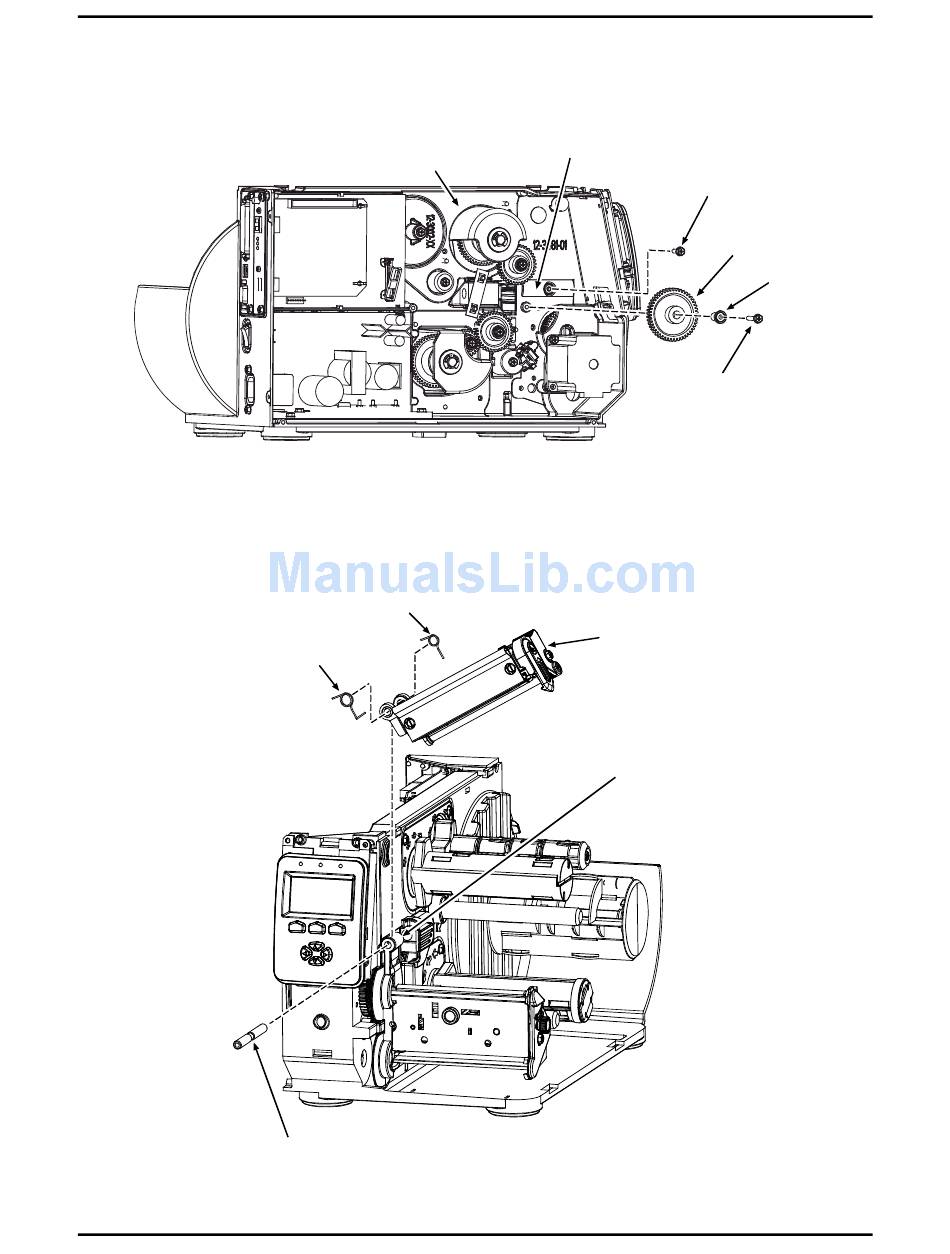

4. Remove the Pivot Pin Screw from the Platen Block Hinge.
5. Extract the Pivot Pin from the Platen Block Hinge and Printhead Assembly. Then, remove
the Printhead Assembly (the Front Lift Spring and the Rear Lift Spring will follow) and
route the printhead cables out of the Guard; see Section 4.3.
Front
Lift Spring
Removal and Replacement
Centerplate
Rear
Lift Spring
Pivot Pin
Platen
Block Hinge
Printhead
Assembly
Block Hinge
4-7
Pivot
Pin Screw
Drive
Gear
Idler
Post
Drive
Gear Screw
Platen
