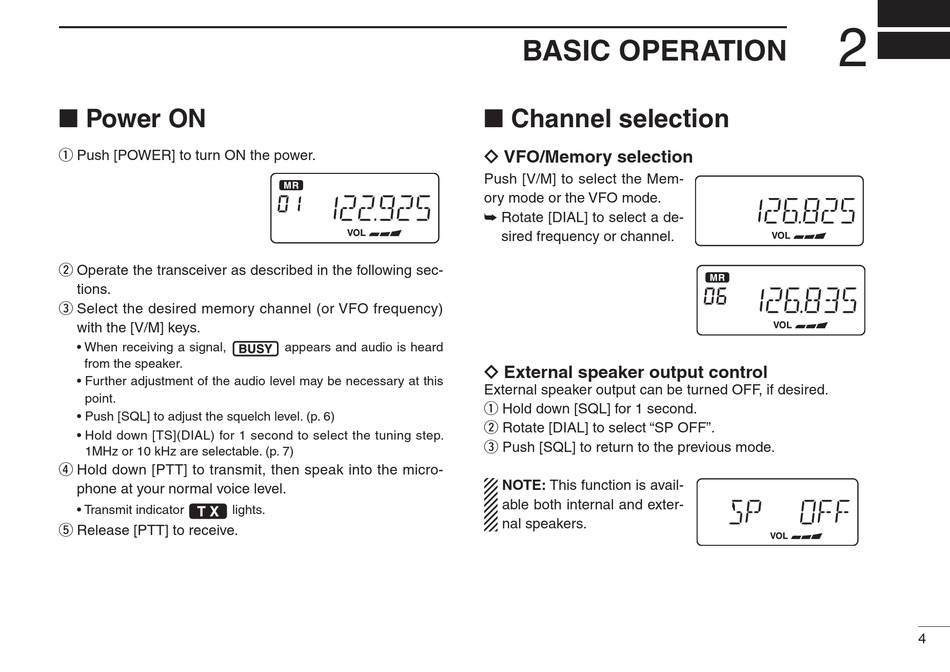

Basic Operation; Power On; Channel Selection - Icom IC-A110EURO Instruction Manual

■ Power ON

q Push [POWER] to turn ON the power.
w Operate the transceiver as described in the following sec-
tions.
e Select the desired memory channel (or VFO frequency)
with the [V/M] keys.
• When receiving a signal,
from the speaker.
• Further adjustment of the audio level may be necessary at this
point.
• Push [SQL] to adjust the squelch level. (p. 6)
• Hold down [TS](DIAL) for 1 second to select the tuning step.
1MHz or 10 kHz are selectable. (p. 7)
r Hold down [PTT] to transmit, then speak into the micro-
phone at your normal voice level.
• Transmit indicator lights.
t Release [PTT] to receive.
appears and audio is heard

BASIC OPERATION

■ Channel selection

ï VFO/Memory selection
Push [V/M] to select the Mem-
ory mode or the VFO mode.
➥ Rotate [DIAL] to select a de-
sired frequency or channel.
ï External speaker output control
External speaker output can be turned OFF, if desired.
q Hold down [SQL] for 1 second.
w Rotate [DIAL] to select "SP OFF".
e Push [SQL] to return to the previous mode.
NOTE: This function is avail-
able both internal and exter-
nal speakers.
2
4
