2

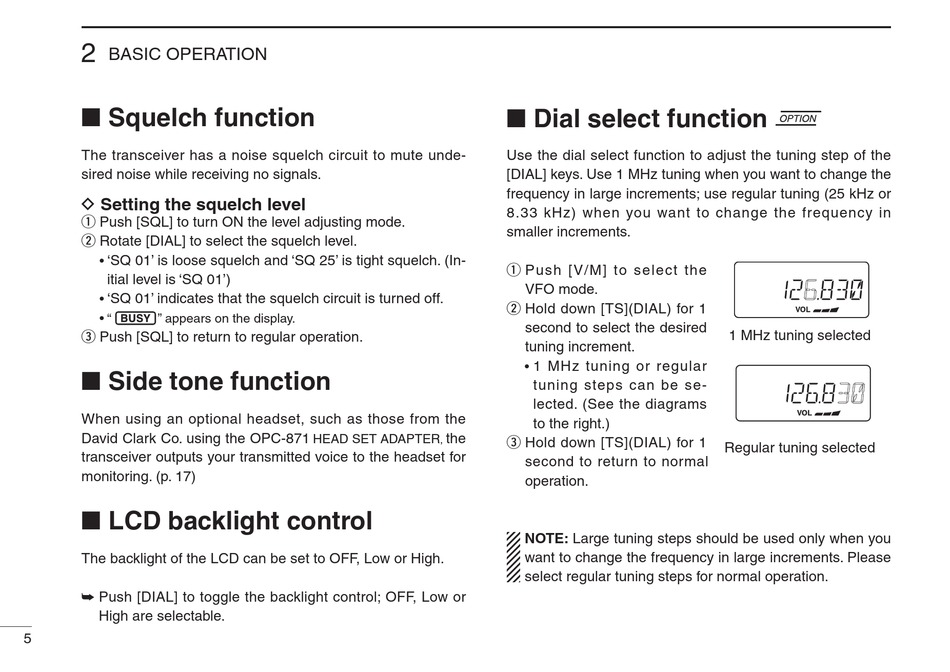

BASIC OPERATION

■ Squelch function

The transceiver has a noise squelch circuit to mute unde-
sired noise while receiving no signals.
D Setting the squelch level
q Push [SQL] to turn ON the level adjusting mode.
w Rotate [DIAL] to select the squelch level.
'SQ 01' is loose squelch and 'SQ 25' is tight squelch. (In-
•
itial level is 'SQ 01')
'SQ 01' indicates that the squelch circuit is turned off.
•
• " " appears on the display.
e Push [SQL] to return to regular operation.

■ Side tone function

When using an optional headset, such as those from the
David Clark Co. using the OPC-871
transceiver outputs your transmitted voice to the headset for
monitoring. (p. 17)

■ LCD backlight control

The backlight of the LCD can be set to OFF, Low or High.
➥ Push [DIAL] to toggle the backlight control; OFF, Low or
High are selectable.
5
the
HEAD SET ADAPTER
,

■ Dial select function

Use the dial select function to adjust the tuning step of the
[DIAL] keys. Use 1 MHz tuning when you want to change the
frequency in large increments; use regular tuning (25 kHz or
8.33 kHz) when you want to change the frequency in
smaller increments.
q Push [V/M] to select the
VFO mode.
w Hold down [TS](DIAL) for 1
second to select the desired
tuning increment.
1 MHz tuning or regular
•
tuning steps can be se-
lected. (See the diagrams
to the right.)
e Hold down [TS](DIAL) for 1
second to return to normal
operation.
NOTE: Large tuning steps should be used only when you
want to change the frequency in large increments. Please
select regular tuning steps for normal operation.
1 MHz tuning selected
Regular tuning selected
