Go Power! GP-SW3000, GP-SW2000, GP-SW1000and GP-SW600

3.3 GP-SW600

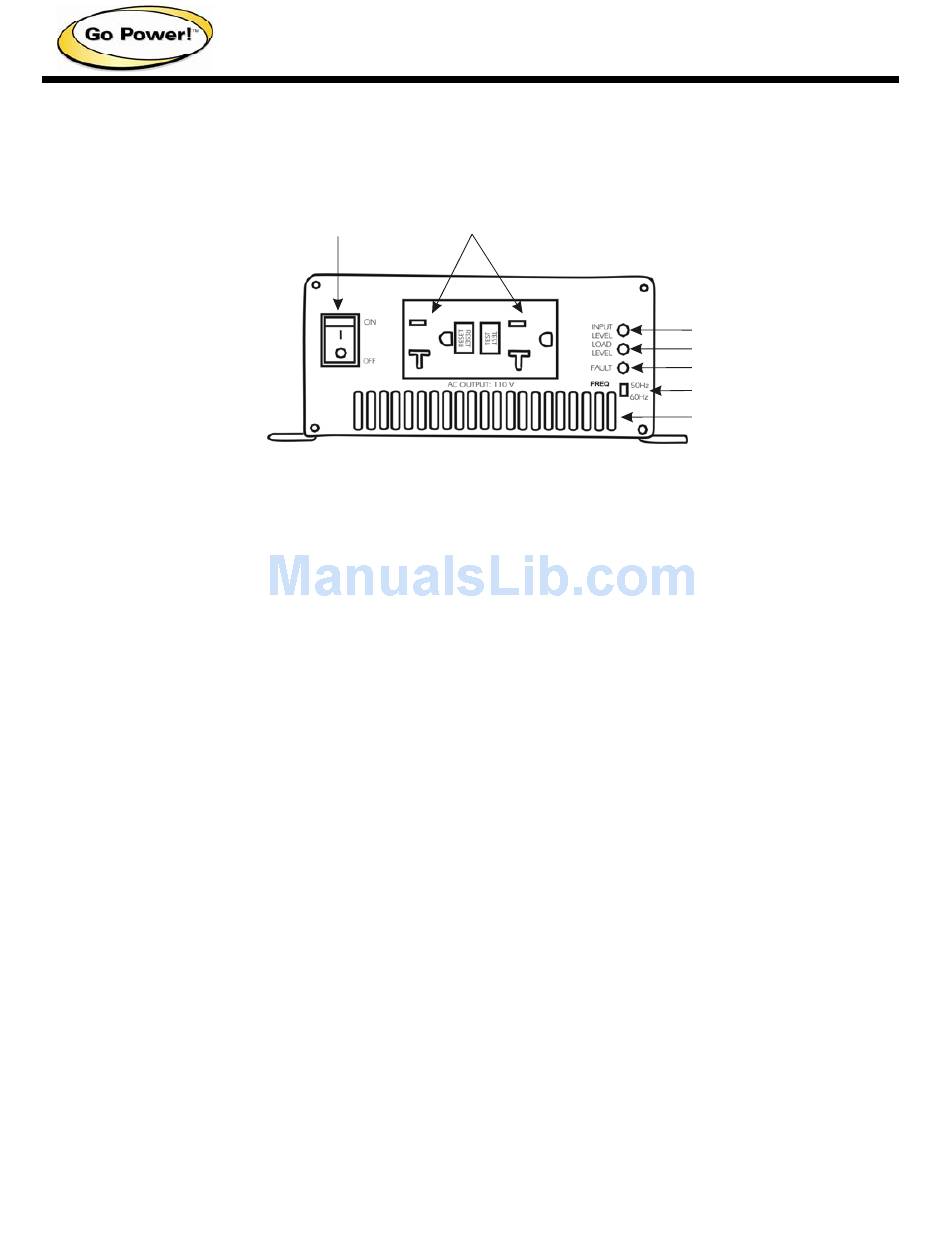

3.3.1 Front view (GP-SW600)
a) On / Off switch
a. ON / OFF switch:
Power ON/OFF switch, leave in the OFF position during installation
b. AC Outlet: Ground Fault Protected (GFCI)
Outlet sockets available:
c. Input Level:
Displays input voltage. Green indicates normal battery level, yellow indicates mid to low
battery level and red indicates under voltage.
d. Load Level:
Display AC load watts. Green indicates normal operation, yellow indicates mid or high
operation and red indicates overload levels
e. Fault:
See Section 5 for LED variations in Fault mode
f. Frequency:
Typical North American setting is 60 Hz
g. Ventilation Ports:
Do not obstruct, allow at least one inch for airflow
b) AC outlets
North America
Owner's Manual
c) Input level
d) Load level
e) Fault
f) Frequency
g) Ventilation ports
