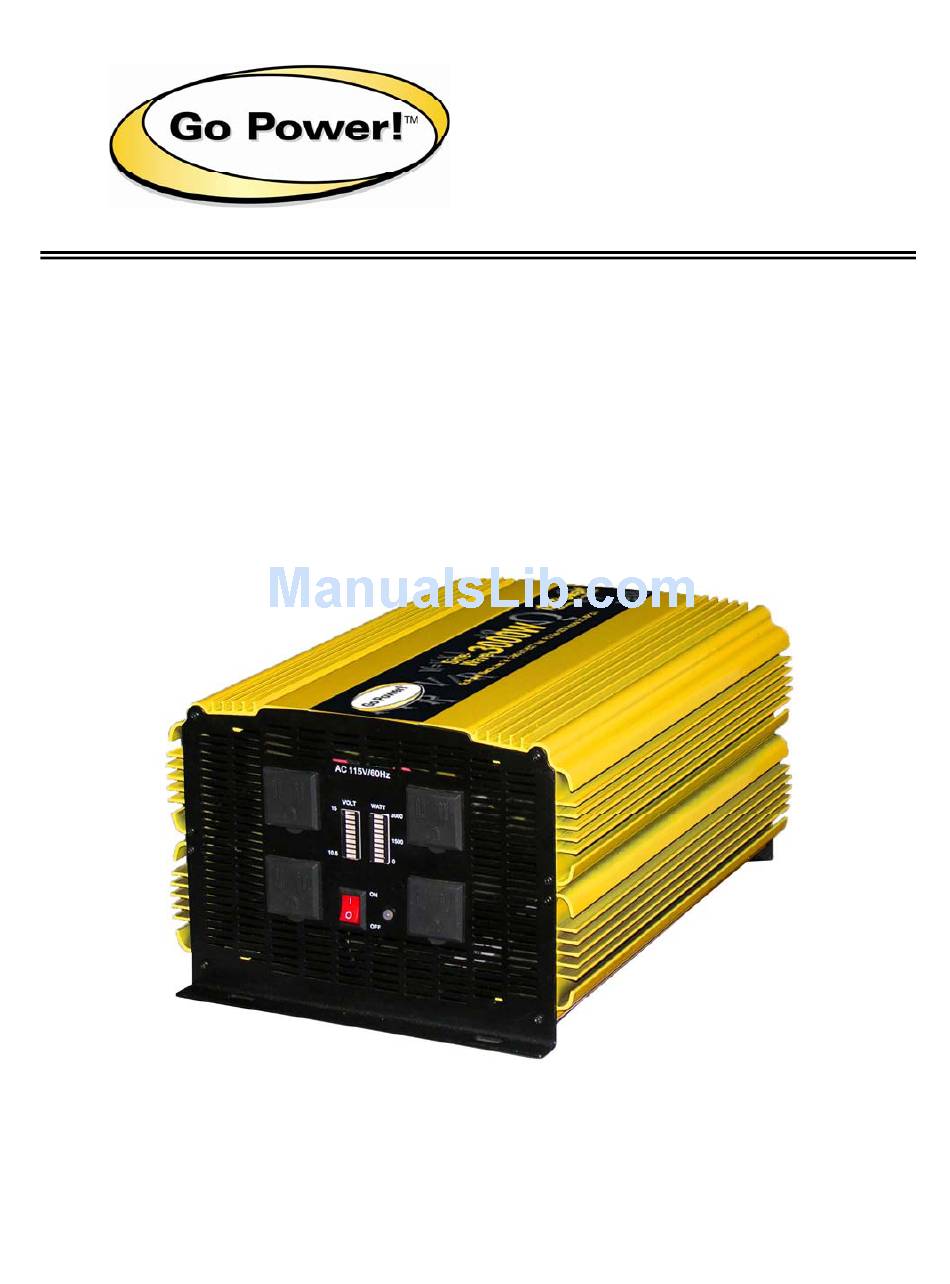

- Page 1 Go Power! Manual GP-3000HD Inverter...
-
Page 2: Table Of Contents
7.0 Maintenance 8.0 Warranty 8.1 Go Power! 1 Year Limited Warranty ..........16 8.1.1 What the Go Power! Warranty Covers and for How Long 8.1.2 What the Go Power! Warranty Does Not Cover 8.1.3 Restrictions and Limitations to the Go Power! Warranty 8.2 Warranty Return Procedure ............17... - Page 3 Go Power! Modified Sine Wave Inverter Owner’s Manual Installing the GP-3000HD Without an Automatic Transfer Switch .19 Installing the GP-3000HD With an Automatic Transfer Switch..19 www.gpelectric.com...
-
Page 4: Introduction
Owner’s Manual 1.0 Introduction The Go Power! Inverter series provides mobile power for dependable operation of standard appliances wherever you travel. Silent, lightweight, and simple to use, Go Power! Inverters can be used in a wide range of applications including RVs, boats, and light and heavy duty truck applications. -
Page 5: Specifications
Go Power! Modified Sine Wave Inverter Owner’s Manual 2.0 Specifications GP-3000HD Inverter Specification Values Continuous Output Power 3000 W Surge Rating 6000 W Output Waveform Modified Sine Wave Output Voltage±10% 115 VAC RMS Output Frequency 60Hz Input Voltage 10.5 to 15 V DC Maximum Efficiency ≥87%... -
Page 6: Features
Go Power! Modified Sine Wave Inverter Owner’s Manual 3.0 Features Front View – GP-3000HD Figure of front view of the GP-3000HD Remote control connection: Bar graph meters: Displays the battery voltage and current. Current should be in the green zone for continuous operation. -
Page 7: Rear View - Gp-3000Hd
Go Power! Modified Sine Wave Inverter Owner’s Manual Rear View – GP-3000HD Figure of rear view of the GP-3000HD DC Power input terminal: Red: Positive. Suggested Hardware: 5/16” DC Power input terminal: Black: Negative. Suggested Hardware: 5/16” Cooling fan: Do not obstruct, allow at least 1 inch (2.54 cm) for air flow. -
Page 8: Installation
1. Unpack and inspect your Go Power! inverter. Ensure that the power switch is in the OFF position. 2. Install the inverters on a flat surface, ensure that it has adequate ventilation and is not in direct sunlight. -
Page 9: Dc Install Kits
If you plan to measure the output voltage of the inverter, a true RMS meter must be used for accurate readings. DC Install Kits Go Power! DC Installation Kits include everything you will need to properly connect your Go Power! Inverter to the batteries. GP-3000HD – GP-DC-KIT 5... -
Page 10: Cables
Go Power! Modified Sine Wave Inverter Owner’s Manual Cables DC to AC inverters require high amperage to operate properly; connect inverter DC input terminals to battery with heaviest wire available; see Table 4-1. Table 4-1: Wire Gauge Max. Watts Out Approx. - Page 11 Go Power! Modified Sine Wave Inverter Owner’s Manual *Installation using two 12 V batteries in parallel. 12 V 12 V GP Inverter Fuse Fuse * Installation using two 6 V batteries in series. GP Inverter * Installation using two 6 V batteries.
-
Page 12: Operation
Go Power! Modified Sine Wave Inverter Owner’s Manual 5.0 Operation To operate the power inverter, turn it on using the ON/OFF switch on the front panel. The power inverter is now ready to deliver AC power to your loads. If you are operating several loads from the power inverter, turn them on separately, one after another. -
Page 13: Input Voltage
Go Power! Modified Sine Wave Inverter Owner’s Manual and the battery is charged, but the voltage still drops below 11 V, you may need to use a larger battery. Input Voltage The Power Inverter will operate from input voltage ranging 10 V – 15 V. If the voltage drops below 10.7 V, an audible low battery warning will sound and the voltage indicator... -
Page 14: Troubleshooting
Go Power! Modified Sine Wave Inverter Owner’s Manual 6.0 Troubleshooting Common Problems Buzz in audio systems Some inexpensive stereo systems will emit a buzzing noise from their loudspeakers when operated from the power inverter. This is due to the power supply in the device does not adequately filter the modified sine wave produced by the power inverter. -
Page 15: Maintenance
Go Power! Modified Sine Wave Inverter Owner’s Manual Problem and Symptoms Possible Cause Solution No output voltage, Error indicator Thermal shutdown. Allow inverter to cool off. Reduce on, load in excess of: load if continuous operation required. 3000 W: 250 A... -
Page 16: Warranty
(“Sale Date”), that the Go Power! Product provides coverage as follows: For the period ending 2 years from the Sale Date, Go Power! will, at Go Power!’s discretion, repair or replace the Product which fails to meet the Product Specifications due to a defect in materials or workmanship or apply credit towards the purchase of new Go Power! Product. -
Page 17: Restrictions And Limitations To The Go Power! Warranty
Go Power! Product shall in no event exceed the purchase price of the Go Power! Product which gave rise to the claim. IN NO EVENT SHALL GO POWER! BE... -
Page 18: Units Bought Directly From Go Power
Owner’s Manual 8.2.3 Units Bought Directly from Go Power! The Purchaser will return the product, freight prepaid, to Go Power! You must obtain a Return Material Authorization (RMA) number from Go Power! before returning a product. The RMA number MUST be clearly indicated on the outside of the box. -
Page 19: Rv Supplement
Go Power! Modified Sine Wave Inverter Owner’s Manual 9.0 RV Supplement Installing the GP-3000HD Without an Automatic Transfer Switch Plug main power cord into inverter (a 15 amp adapter may be required). Battery inter-connects should be a minimum of 4 gauge. - Page 20 © 2008 Carmanah Technologies Corporation www.carmanah.com Go Power! Building 4, 203 Harbour Road Victoria, British Columbia Canada V9A 3S2 Toll Free: 1.877.722.8877 | Fax: +1.250.380.0062 Email: info@carmanah.com Number: 53534_MAN_GP_Inverter_3000_ vC www.gpelectric.com...
