Owner's Manual

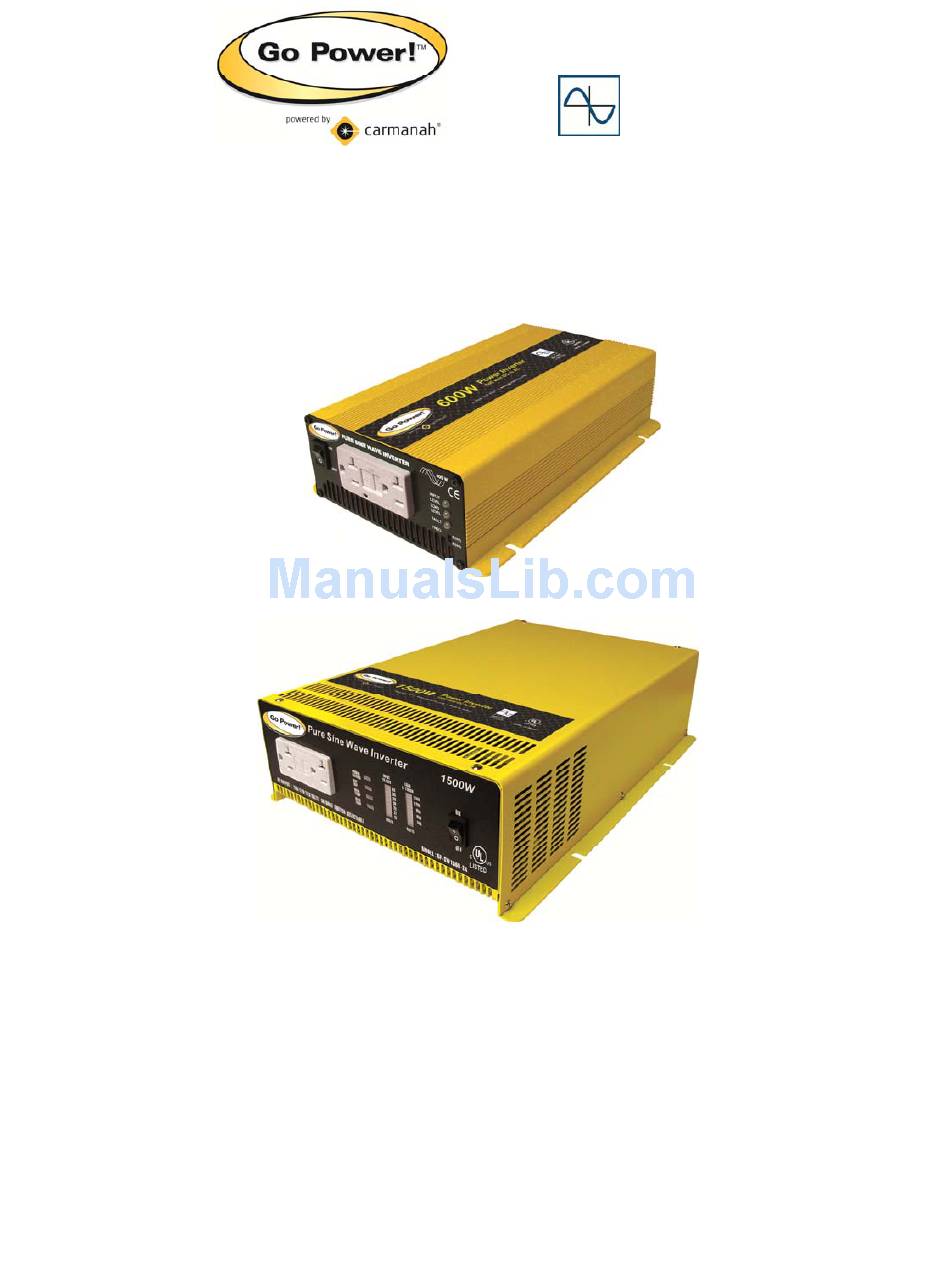

Pure Sine Wave Inverter
GPSW-600
GPSW-1500




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPSW-600 and is the answer not in the manual?

Questions and answers

Related Manuals for Go Power GPSW-600

Summary of Contents for Go Power GPSW-600

  • Page 1 Pure Sine Wave Inverter GPSW-600 GPSW-1500 ________________________________________________ Owner’s Manual      ...

  • Page 2: Table Of Contents

    Disclaimer of Liability and Warranty Configuring your GPSW-600/1500 1. Introduction The Go Power! Sine Wave series models are used in a wide range of applications including remote homes, RVs, sailboats and powerboats. It will operate most televisions and VCRs, personal computers, small appliances and tools such as drills, sanders, grinders, mixers and blenders.

  • Page 3: Specifications

    GPSW-600/1500 ___________________________________________________________  2. Specifications 2.1 1500 W Inverter GPSW-1500 (12V) SPECIFICATIONS GPSW-1500 (24V) Continuous Output Power 1500 W Surge Rating 2000 W Output Waveform Pure Sine Wave <3% THD Output Voltage ± 5% 115 VAC RMS Input Voltage 11 – 16.0 VDC 21.0-30.0 Efficiency 85-90%...
  • Page 4 GPSW-600/1500 ___________________________________________________________  2.2 600 W Inverter GPSW-600 (12V) SPECIFICATIONS GPSW-600 (24V) Continuous Output Power 600 W Surge Rating 860 W Output Waveform Pure Sine Wave <3% THD Output Voltage ± 5% 115 VAC RMS Input Voltage 10.5– 15 VDC 21.0-30.0 Efficiency 85-92 % No Load Current Draw / Powersave...

  • Page 5: Name And Main Function

    GPSW-600/1500 ___________________________________________________________  3.0 Name and Main Function 3.1 Front View GPSW-1500     ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation. OVP: over voltage protection. UVP: under voltage protection OTP: over temperature protection. OLP: over load protection. BATT.
  • Page 6 GPSW-600/1500 ___________________________________________________________  3.2 Rear View GPSW-1500    Warning! Operation of the inverter without a proper ground connection may result in an electrical safety hazard. Ventilation ports: Do not obstruct, allow at least 1 inch for air flow. Battery terminals: Connect to 12V / 24V battery or other 12V / 24V power source. [+] is positive [ - ] is negative.
  • Page 7 GPSW-600/1500 ___________________________________________________________  3.3 Front View GPSW-600 ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation. Ventilation ports: Do not obstruct, allow at least 1 inch for air flow. Load Level: Display AC load watts, green indicates normal operation and red indicates high load levels.
  • Page 8 GPSW-600/1500 ___________________________________________________________  3.4 Rear View GPSW-600 Warning! Operation of the inverter without a proper ground connection may result in an electrical safety hazard. Ventilation port: Do not obstruct, allow at least 1 inch for air flow Battery terminals: Connect to 12V battery or other 12V power source. [+] is positive [-] is negative.

  • Page 9: Installation

    4.2 Hook-up and testing To hook-up please follow these guidelines: 1. Unpack and inspect your Go Power! Inverter, check to see that the power switch is in the OFF position. Set up your power output according to Section 10, Configuring your Sine Wave.
  • Page 10 DC to AC inverters require high amperage / low voltage DC power to low amperage / high voltage AC power. To operate properly connect inverter DC input terminals direct to battery with appropriate Go Power! Install kit. 4.4 Grounding The power inverter has a lug on the rear panel [chassis ground]. This is to connect the chassis of the power inverter to the ground.

  • Page 11: Operation

    GPSW-600/1500 ___________________________________________________________  electrical code requirements that separately derived AC sources (such as inverters and generators) have their neutral tied to ground in the same way that the neutral conductor from the utility line is tied to ground at AC breaker panel. Caution! The negative DC input of the power inverter is connected to the chassis.

  • Page 12: Operating Limits

    GPSW-600/1500 ___________________________________________________________  5.4 Resetting Faults Any of the inverters protection faults can be re-set by turning the inverter off for five seconds and then turning the inverter on again. The GPSW1500 can also re- set any of its protection faults using the optional remote on/off switch to turn the inverter off and then on again.

  • Page 13: Troubleshooting

    GPSW-600/1500 ___________________________________________________________  When determining whether a microwave oven can be operated by the 1500 W inverter, remember that the power commonly advertised for microwave ovens is the cooking power (the power delivered to the food) not the power actually consumed by the microwave oven. The microwave oven will consume 40% to 100% more than its advertised cooking power.

  • Page 14: Maintenance

    GPSW-600/1500 ___________________________________________________________  • Make sure that the antenna feeding your television provides an adequate ("snow free") signal and that you are using good quality cable between the antenna and the TV. • Move the television as far away from the power inverter as possible. •...

  • Page 15: Disclaimer Of Liability And Warranty

    Product. To exercise this right, the Purchaser shall ship, at its own expense, and return the Product to Go Power! according to the return instructions detailed below, and Go Power! will, repair or replace the Product and return it to the Purchaser free of charge, or offer credit towards the purchase of new Product.
  • Page 16  Failure due to fire, water, neglect, improper installation, generalized corrosion, biological infestations, or input voltages that create operating conditions beyond the maximum or minimum listed in the Go Power! specifications including lightning strikes.  Products which have been altered other than by Go Power! authorized by Go Power! ...
  • Page 17 's liability on any claim, whether in warranty, contract, negligence, or any other legal theory, for loss, damage or injury arising directly or indirectly from or in relation to the use of the Go Power! Product shall in no event exceed the purchase price of the Go Power! Product which gave rise to the claim.

  • Page 18: Configuring Your Gpsw-600/1500

    GPSW-600/1500 ___________________________________________________________  9.2.3 Units bought directly from Go Power! The Purchaser will return the product, freight prepaid, to Go Power! You must obtain a Return Material Authorization (RMA) number from Go Power! before returning a product. The RMA number MUST be clearly indicated on the outside of the box.
  • Page 19 GPSW-600/1500 ___________________________________________________________  10.2 Configuring the GPSW 600 Switches are located on the front panel. 19   ...
  • Page 20 GPSW-600/1500 ___________________________________________________________  © 2011 GO POWER!™ By Carmanah Technologies www.gpelectric.com MOBI_MAN_GPSW-600-1500_vE_Dec2011 20   ...

This manual is also suitable for:

Gpsw-1500

Table of Contents
