- Page 1 Go Power! Manual GP-SW150 Inverter GP-SW300 Inverter Go Power! Electric Inc. PO Box 6033 Victoria, BC V8P 5L4 Tel: 866-247-6527 Fax: 866-607-6527 Email: info@gpelectric.com...
-
Page 2: Table Of Contents
Go Power! SW150, SW300 Inverter Owner’s Manual Table of Contents INTRODUCTION ................3 SPECIFICATIONS..............3 NAME AND MAIN FUNCTION ...........4 INSTALLATION .................7 OPERATION ................9 OPERATING LIMITS..............10 TROUBLESHOOTING .............10 MAINTENANCE ...............11 WARRANTY................11 Go Power! Electric Inc. PO Box 6033 Victoria, BC V8P 5L4... -
Page 3: Introduction
Owner’s Manual 1. Introduction The Go Power! Sine Wave series models are used in a wide range of applications including remote homes, RVs, sailboats and powerboats. It will operate most televisions and VCRs, personal computers, small appliances and tools such as drills, sanders, grinders, mixers and blenders. -
Page 4: Name And Main Function

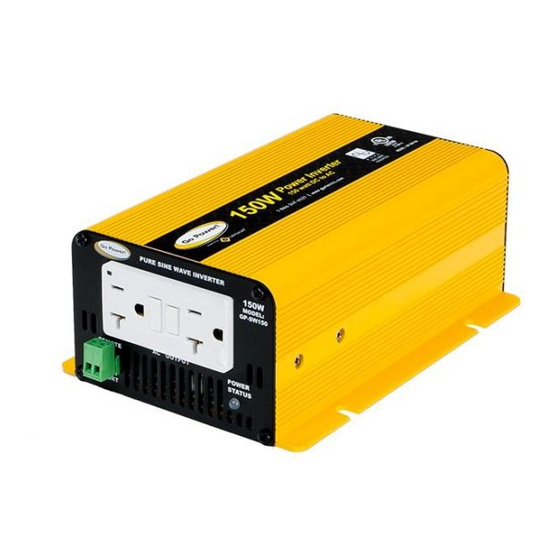

Go Power! SW150, SW300 Inverter Owner’s Manual 3. Name and main function 3.1 Front view GP-SW150: a. AC outlet b. ON /OFF switch c. Remote port d. Power status LED a) AC outlet: Outlet sockets available: North America b) ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation. - Page 5 Go Power! SW150, SW300 Inverter Owner’s Manual 3.2 Front view GP-SW300: a. ON /OFF switch c. AC outlet c. Remote port d. Power status LED a) ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation.
- Page 6 Go Power! SW150, SW300 Inverter Owner’s Manual 3.3 Rear view GP-SW150: a. Ventilation port b. DC Input Cables d. Chassis ground lug a) Ventilation ports: Warning! Do not obstruct, allow at least 1 inch for air flow. Operation of the...
-
Page 7: Installation
Go Power! SW150, SW300 Inverter Owner’s Manual 3.4 Rear view GP-SW300: b. Ventilation ports a. Chassis ground c. Battery terminal a) Chassis ground or to vehicle chassis using # 8 AWG wire. b) Ventilation ports: Do not obstruct, allow at least 1 inch for air flow. - Page 8 Go Power! SW150, SW300 Inverter Owner’s Manual 4.2 Hook-up and testing 1. Unpack and inspect your Go Power! Inverter, check to see that the power switch Caution! is in the OFF position. A reverse polarity 2. Connect the negative cable (black) to the negative terminal of the battery. Make a connection will blow a secure connection.
-
Page 9: Operation
Any of the inverters protection faults can be re-set by turning the inverter off for five seconds and then turning the inverter on again. The GP-SW150 can also re-set any of its protection faults using the optional remote on/off switch to turn the inverter off and then on... -
Page 10: Operating Limits
Go Power! SW150, SW300 Inverter Owner’s Manual 5.4 Remote A user supplied remote option is available. When the on/off button is put to the remote setting, the inverter will only work if a connection is made between the two terminals of the remote input. -
Page 11: Maintenance
We warrant this product against defects in materials and workmanship for a period of two years from the date of purchase and will repair or replace any defective Go Power! Inverter when directly returned, postage prepaid, to manufacturer. This warranty will be...
