Owner's Manual





Pure Sine Inverter
GPSW-150
GPSW-300







Advertisement

loading
Need help?

Need help?

Do you have a question about the GPSW-300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Go Power GPSW-300

Summary of Contents for Go Power GPSW-300

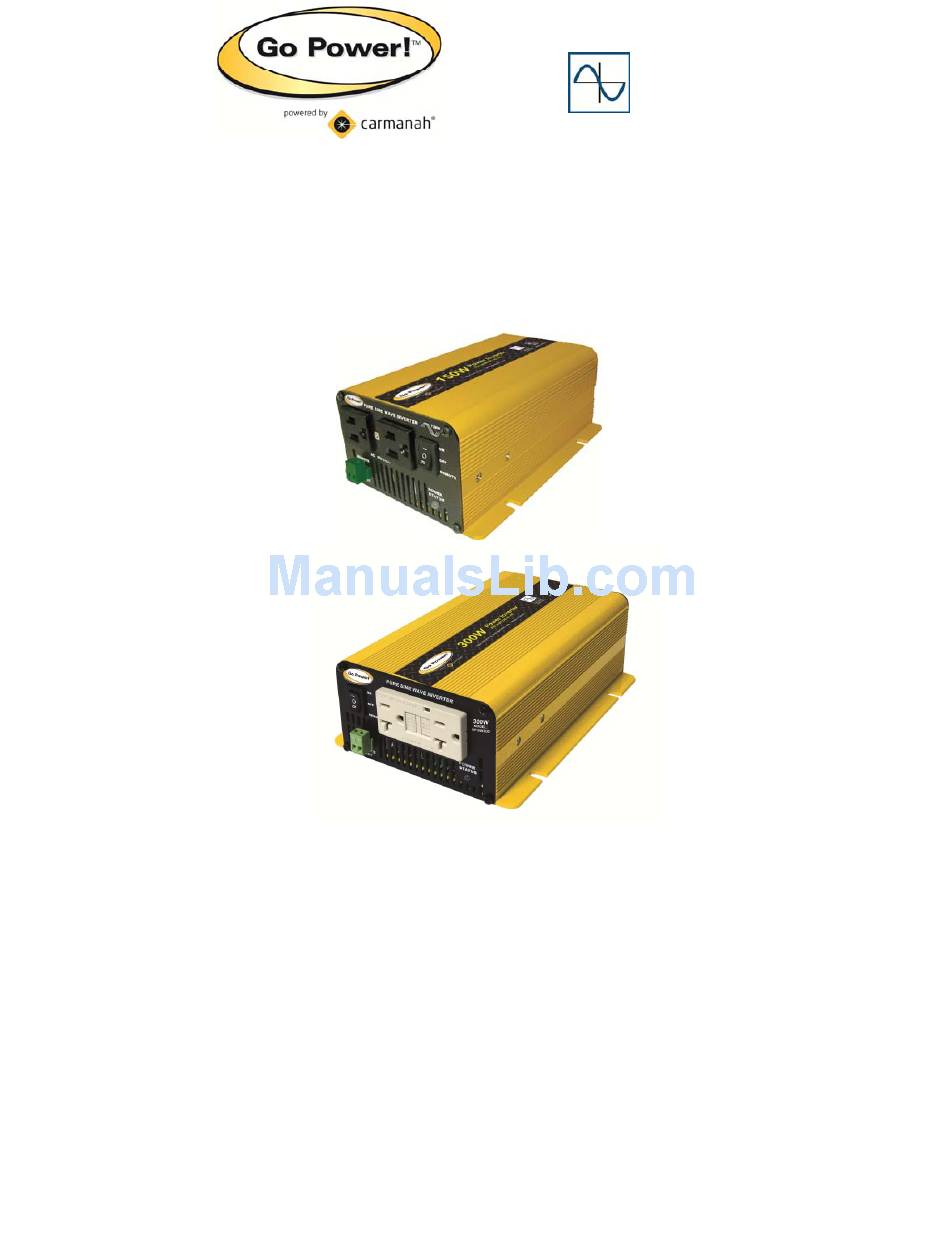

  • Page 1 Pure Sine Inverter GPSW-150 GPSW-300 ________________________________________________ Owner’s Manual                      ...

  • Page 2: Table Of Contents

    Maintenance Disclaimer of Liability and Warranty 1.0 Introduction The Go Power! SW150 and SW300 Sine Wave Inverters convert DC power to AC power and can be used in a wide range of applications including remote homes, RVs, sailboats, powerboats, laptops, cell phone chargers, and even gaming equipment.

  • Page 3: Specifications

      Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  2.0 Specifications 2.1 GPSW-150 W Inverter GPSW-150 (12V) SPECIFICATIONS* GPSW-150 (24V) Continuous Output Power 150 W Surge Rating 260 W Output Waveform Pure Sine Wave <3% THD Output Voltage 115 VAC RMS ±...
  • Page 4   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  2.2 GPSW-300 W Inverter GPSW-300 (12V) SPECIFICATIONS* GPSW-300 (24V) Continuous Output Power 300 W Surge Rating 450 W Output Waveform Pure Sine Wave <3% THD Output Voltage 115 VAC RMS ± 5% Input Voltage 10.5 –...

  • Page 5: Name And Main Function

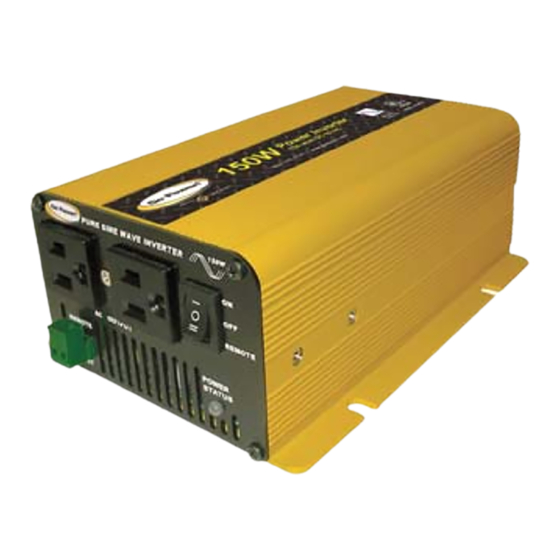

      Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  3.0 Name and Main Function 3.1 GPSW-150  Front View AC outlet: Outlet sockets available: North America (NEMA 5-15R) ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation. Remote port: Allows customer to connect 2 wire switch to use as ON/OFF remote.
  • Page 6   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  3.1.2 Rear View GPSW-150 Operation of the inverter without a proper ground connection may result in an electrical safety hazard. Ventilation port: Do not obstruct, allow at least 1 inch (2.54 cm) for air flow. Connect the chassis ground to the vehicle chassis using a #8 AWG wire.
  • Page 7   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  3.2 GPSW-300 Front View     ON / OFF switch: Power ON/OFF switch, leave in the OFF position during installation. AC outlet: Outlet sockets available: North America (GFCI). Remote port: Allows customer to connect 2 wire switch to use as ON/OFF remote. Ex.
  • Page 8   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________    Rear View   Operation of the inverter without a proper ground connection may result in an electrical safety hazard. Ventilation port: Do not obstruct, allow at least 1 inch (2.54 cm) for air flow. Connect the chassis ground to the vehicle chassis using a #8 AWG wire.

  • Page 9: Installation

    AC source for the AC wiring or AC loads, it is highly recommended that you install an automatic transfer switch (GP-TS), available from Go Power! Dry - Do not allow water to drip or splash on the inverter.
  • Page 10   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  Loose connections result in excessive voltage drop and may cause overheated wires and melted insulation. A reverse polarity connection will blow a fuse in the inverter and may permanently damage the inverter. Damage caused by reverse polarity connection is not covered by the warranty.
  • Page 11   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  4.3 Cables 4.3.1 GPSW150 – 12 V / 24 V Use the included 3 feet (0.91 m) of #14 AWG wire and automobile DC plug. When used in conjunction with an automobile DC socket, ensure the DC socket fuse in the automobile fuse box is rated to the inverter load.

  • Page 12: Operation

      Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  from the utility line is tied (bonded) to ground in the AC breaker panel of a non-mobile dwelling. Important: As per the national electrical code, electrical panels in mobile applications must not have a bonded neutral.
  • Page 13   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  Table 1: Inverter Power States State Description Over voltage Red LED blinking Over voltage protection indicates that the protection fast inverter has shut itself down because its input voltage is over: ...

  • Page 14: Operating Limits

      Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  becomes operational only when a connection is made between the two terminals of the remote input. A switch may be placed between the two terminals and the inverter can then be turned off using the switch. A ⅛” (3.0 mm) precision screwdriver is recommended for tightening the two terminals.

  • Page 15: Troubleshooting

      Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________  7.0 Troubleshooting 7.1 Television interference Operation of the inverter can interfere with television reception on some channels. If this situation occurs, the following steps may help to alleviate the problem.  Ensure that the chassis ground lug on the back of the inverter is securely connected to the ground system of your vehicle, boat, or home.

  • Page 16: Maintenance

    9.1.1 What the Go Power! Warranty Covers and for How Long Subject to the exclusions and claim procedure set out below, Go Power! warrants for a period of 2 years from the date of purchase at the point-of-sale to the original end-user customer (“Sale Date”), that the Go Power!
  • Page 17 Product. To exercise this right, the Purchaser shall ship, at its own expense, and return the Product to Go Power! according to the return instructions detailed below, and Go Power! will, repair or replace the Product and return it to the Purchaser free of charge, or offer credit towards the purchase of new Product.
  • Page 18 's liability on any claim, whether in warranty, contract, negligence, or any other legal theory, for loss, damage or injury arising directly or indirectly from or in relation to the use of the Go Power! Product shall in no event exceed the purchase price of the Go Power! Product which gave rise to the claim .
  • Page 19 Contact your sales representative or Dealer and discuss the problem. Often the sales representative can troubleshoot common scenarios. If applicable, warranty will be handled between the End User and the Dealer. Go Power! will only accept returned items from an End User as a last resort. If you are unable to...
  • Page 20   Pure Sine Wave Inverter GPSW-150   GPSW-300 ___________________________________________________________            © 2011 GO POWER!™ By Carmanah Technologies www.gpelectric.com MOBI_MAN_GPSW-150-300_vF_Dec2011 20   ...

This manual is also suitable for:

Gpsw-150
