Peripheral Devices

Removing a Drive from the Media Bay

007-4276-001
The chassis contains one peripheral bay for CD-ROM, DAT, and floppy drives. The
peripheral bay contains two smaller bays: a device bay and a media bay.
Follow the instructions in this section to replace drives in the media bay and the device
bay.
The media bay holds a 0.5-inch slim-line floppy and a 0.5-inch slim-line CD-ROM drive.
The drives are secured to the media bay by a screw as shown in Figure 2-11. (Although
Figure 2-11 shows a single 3.5-inch floppy disk drive, the SGI 1450 server is shipped with
a 0.5-inch slim-line floppy and a 0.5-inch slim-line CD-ROM drive.)

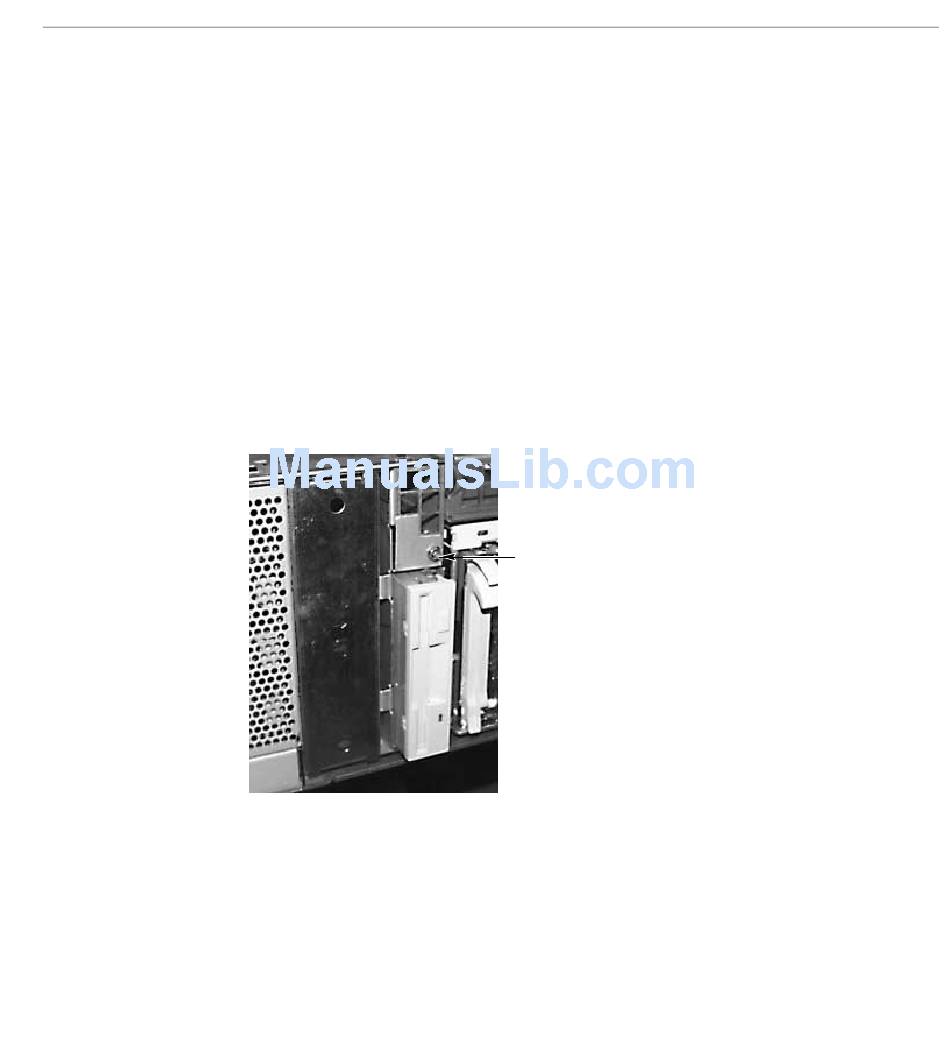

Figure 2-11 Location of the Media Bay Screw
To remove a drive from the media bay, follow these steps:
1. Observe the safety and ESD precautions at the beginning of this chapter.
2. Turn off the system by using the power on/off button on the front panel and unplug
the AC power cord.
