Rear Panel I/O Ports and Features

007-4276-001

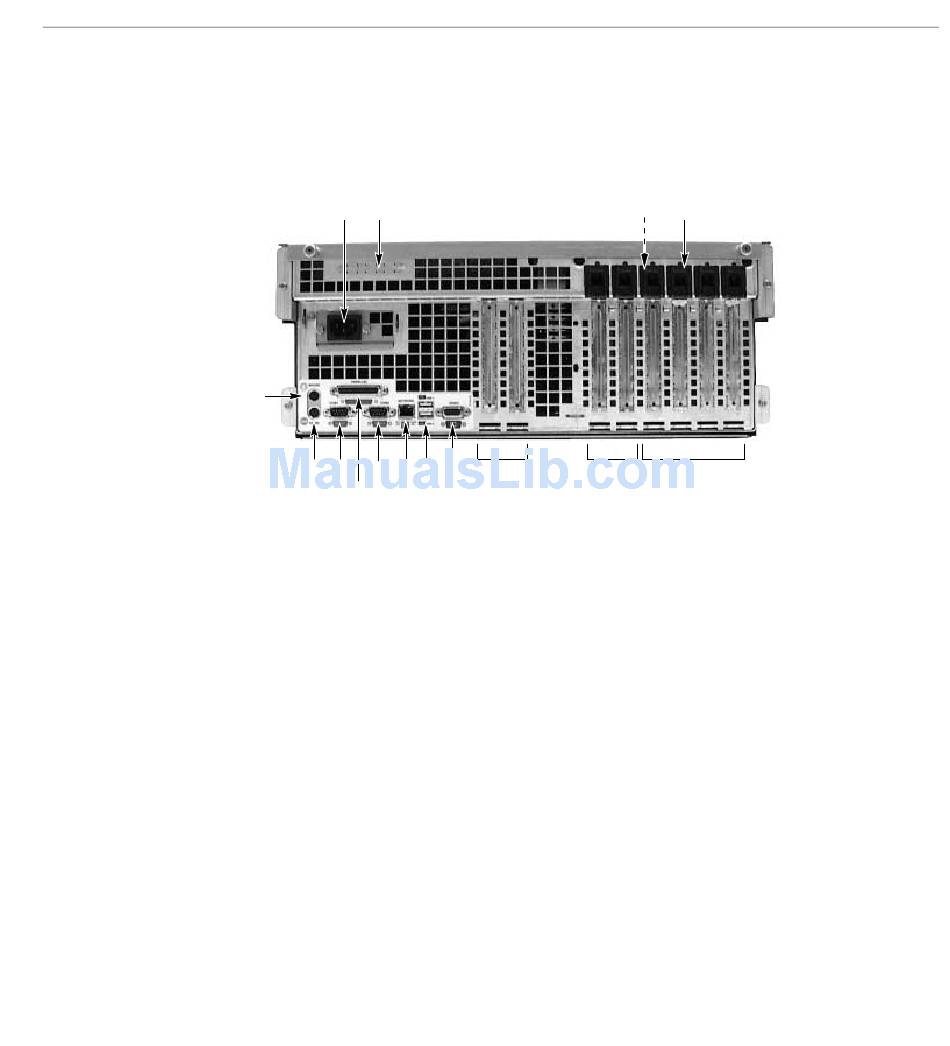

Figure 1-10 shows a detailed view of the rear panel I/O ports and features.
B
A
M
L K G
I
J H
Figure 1-10 Rear Panel I/O Ports and Features
A. AC input power connector
B. External SCSI connector ports
C. Hot-plug 64-bit, 33-MHz PCI add-in board slots
D. Hot-plug 64-bit, 66/33-MHz PCI add-in board slots
E. Non-hot-plug 32-bit, 33-MHz PCI add-in board slots
These slots can also accept an Intelligent Chassis Management Bus (ICMB) SEMCONN
6-pin connector in/out
F. Video connector
G. USB ports 0 (upper) and 1 (lower), 4-pin connectors
H. NIC RJ45 connector
D
F E
Rear Panel I/O Ports and Features
